Check the interior power distribution panel near the driver-side lower dashboard and identify the correct circuit using the printed label before removing anything. Always install a replacement with the same amperage rating to prevent wiring damage and failure of connected systems such as lights, radio, or ignition components.
This vehicle includes both a cabin-mounted panel and an engine compartment unit. Lower amp ratings like 5A or 10A are used for sensors and control units, while 20A–40A positions support motors, heating elements, and power accessories. Refer to the panel cover for accurate slot identification.
Use a multimeter to test continuity rather than relying only on visual checks. A metal strip may look intact but fail during operation. Inspect contacts for corrosion, heat marks, or looseness, as poor connections can interrupt current flow and lead to intermittent electrical issues.

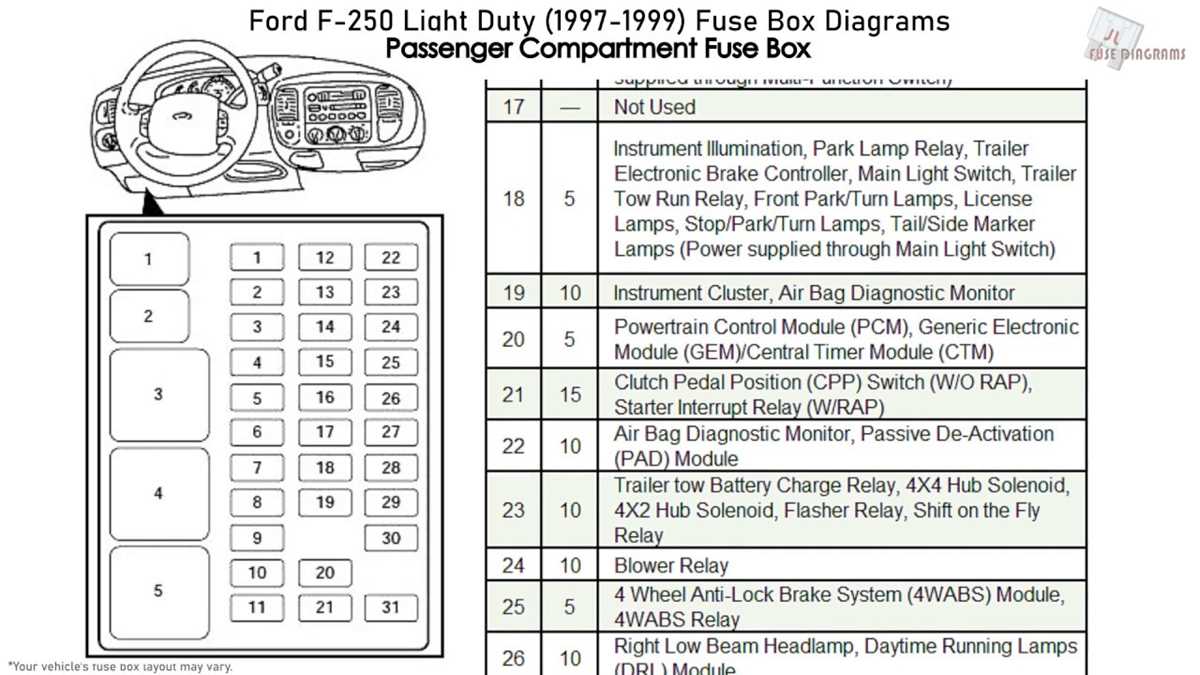

1997 Ford F250 Fuse Box Diagram and Practical Usage Guide
Check the panel layout printed on the cover and match each numbered slot with its assigned circuit before removing any component. Verify amperage ratings on top of each insert to prevent overheating of wiring and connected systems.
The interior panel handles most cabin electronics, while the engine compartment section distributes power to high-load components such as cooling fans and charging circuits. Identify the correct panel based on the system being diagnosed to avoid unnecessary disassembly.
Each slot corresponds to a specific function, with lower amp values like 5A or 10A supporting control modules and sensors, and higher values such as 20A–40A assigned to motors, heaters, and power accessories.
Remove the protective insert using insulated pliers and inspect the internal metal strip. A break indicates failure, while discoloration suggests heat buildup from loose contacts or poor seating.
Install a replacement with identical rating and press it firmly into place. Loose installation can cause intermittent electrical faults and unstable operation of connected components.
If the same circuit fails repeatedly, inspect wiring, connectors, and related devices instead of replacing the insert again. Repeated burnout usually indicates a short circuit or excessive current draw.
Exact fuse box locations in 1997 Ford F250 and how to access each panel
Open the driver door and inspect the lower dashboard area near the steering column; the main interior power distribution panel is mounted against the left kick panel and partially covered by a пластиковый trim piece. Use a flashlight to locate the rectangular housing positioned above the footwell.
Remove the interior cover by pulling it outward or releasing side clips. Older plastic may be stiff, so apply steady pressure along the edges to avoid cracking the panel.
Once opened, the internal layout and circuit labels are visible on the reverse side of the cover or directly on the mounting frame. Keep the cover nearby for quick reference while working.

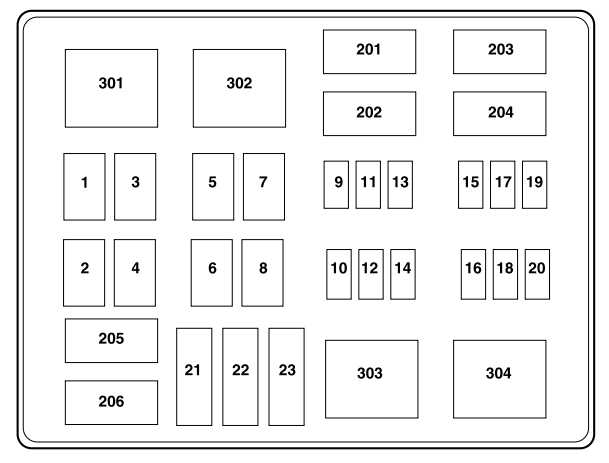

The engine compartment panel is located near the battery on the driver side. Release the retaining clips and lift the lid upward to access high-current circuits related to charging, cooling, and ignition systems.
Ensure the engine is off before opening the under-hood panel. Heat and tight spacing increase the risk of contact with live terminals or metal components.
After completing inspection or replacement, reinstall both covers securely to protect internal connections from dirt, moisture, and accidental contact.
