Check the cover of the electrical panel and match each numbered slot with the printed chart to identify circuits such as fuel pump, cooling fan, headlights, and dashboard systems. The numbering sequence is fixed, so locating the correct position avoids unnecessary removal of working components.
Inspect both interior and engine compartment power distribution units, as this vehicle uses two separate panels. The cabin section handles low-load electronics like radio and interior lights, while the under-hood unit supports high-current systems including ABS, radiator fan, and starter relay.
Read amperage values marked on each protective insert and compare them with the panel chart. Common ratings include 5A, 10A, 15A, and 30A, each assigned to specific loads. Replacing with a higher value risks wiring damage, especially in lighting and control circuits.
Use a puller tool to remove a suspected element and inspect the internal strip for breaks or burn marks. A damaged strip indicates an overload or short circuit, so after replacement, monitor the system to confirm the issue does not repeat.

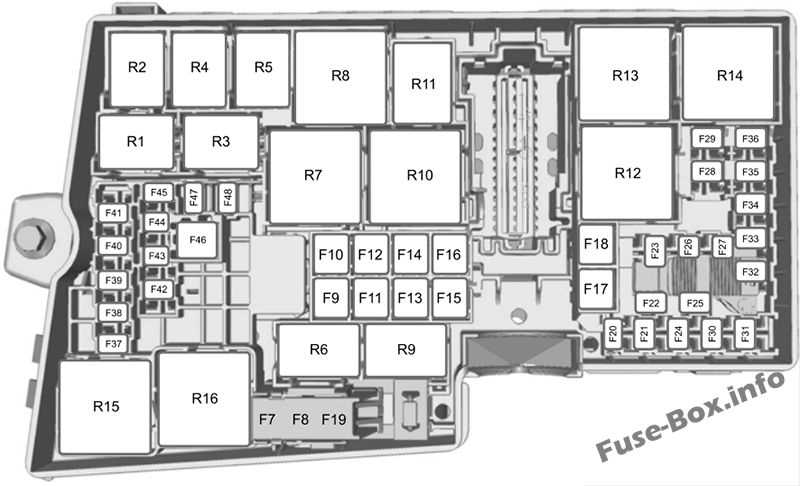

2012 Ford Transit Connect XLT Fuse Box Diagram with Panel Layout Details
Align the printed panel chart with the actual layout by locating a distinctive high-amperage position, such as a 30A or 40A slot, then trace adjacent numbers to confirm orientation before identifying any circuit.
- Find the reference number printed next to each slot on the panel
- Match it with the chart to determine the connected system
- Verify amperage value stamped on the insert
- Check if the circuit relates to interior, exterior, or engine components
Use a multimeter to test voltage across both terminals of the selected slot; power on one side only indicates a broken internal link, while no voltage suggests upstream issues such as relay failure or wiring interruption.
Where the fuse panels are located and how to access them in the vehicle
Check the driver-side lower dashboard area first, where the interior power distribution unit is mounted behind a removable plastic cover near the steering column; a second unit is positioned under the hood close to the battery, protected by a sealed lid with locking tabs.
Turn off the ignition and disconnect the negative battery terminal before opening any panel, then release the cover clips using a plastic tool to avoid breakage; do not use metal objects near live contacts, and keep the area dry while inspecting or replacing components.
