Locate the primary electrical distribution unit by opening the driver-side engine bay and identifying the large black housing near the battery terminal. Ensure all ignition circuits are off before interacting with connectors.
Check labels on each connection for amperage ratings and circuit assignments. Use a flashlight to spot smaller relays tucked behind the main module and trace the thick red and yellow wires to their corresponding terminals.
Remove protective covers carefully to inspect internal contacts. Avoid forcing clips or tabs, as most access points rely on spring-loaded latches that can snap if handled incorrectly.
Test each circuit with a digital multimeter before replacing any link or module. Measure voltage across main terminals, and compare readings to the vehicle’s specified values to detect potential faults in the distribution paths.

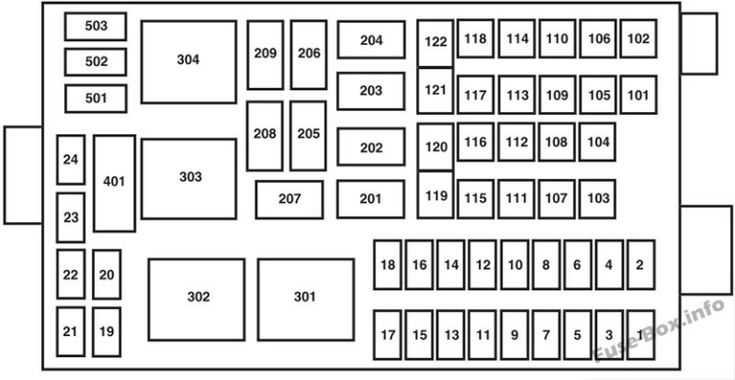

Under Hood Electrical Layout Guide for 2012 F350
Identify the main power distribution hub located near the battery and air intake. Confirm the battery terminals are disconnected before inspecting terminals and relays to prevent short circuits.
Trace high-current wiring harnesses from the hub to key components like the starter, alternator, and engine control unit. Use colored insulation markings to verify correct routing and avoid mixing circuits.
Inspect individual relays and connectors for corrosion or heat damage. Remove each relay one at a time to test continuity and ensure proper engagement without bending pins or damaging housing clips.
Label all removed connectors and document positions with photos or notes. This ensures correct reinstallation and reduces the risk of reversing polarity or connecting circuits incorrectly during maintenance.
Perform voltage checks at main terminals and auxiliary circuits with a digital meter. Compare readings to standard specifications to detect weak points, loose connections, or failing components before completing any reassembly.
Identifying Main Power Relays and Circuit Points
Locate the primary relay cluster adjacent to the battery and intake area. Check for relays controlling the starter, ignition, and engine management circuits and note their positions for reference during testing.
Examine connector terminals and wires for discoloration, corrosion, or loose pins. Use a digital multimeter to confirm continuity and voltage presence at each relay point before energizing any circuits.
Mark high-current circuits leading to alternator, headlights, and cooling fans. Document the routing and verify the integrity of insulation to prevent shorts or voltage drops during operation.
Test each relay individually by applying voltage at the control pins while monitoring output terminals. Replace any unit that fails to switch properly or shows inconsistent readings under load to maintain stable power distribution.
