Check the power distribution panel under the hood first and match each slot by amperage marking before removing any component. High-load circuits such as trailer brake controller, starter relay, and cooling fan use 30A to 60A links, while smaller systems like sensors and control modules rely on 5A to 15A ratings. Always install the same amperage value to avoid wiring damage or module failure.
The interior panel is positioned behind a trim cover near the passenger side kick panel, where low-current circuits for radio, interior lights, and diagnostic connector are grouped. A broken metal strip inside a plastic housing indicates a failed unit, often linked to sudden loss of a single function such as power windows or dashboard display.
Disconnect the negative battery cable before working with any electrical component to prevent short circuits. Use the puller tool stored in the panel cover to remove parts without bending контакты, and rely on the printed layout inside the крышка to quickly locate the correct position for inspection or replacement.
2011 Ford Super Duty fuse box diagram with panel locations and relay details
Open the hood and inspect the main power distribution center near the battery, then use the label under the cover to match each slot with its assigned circuit and amperage rating before removal.
High-current links in this compartment support systems such as glow plugs, trailer tow circuits, and cooling fans, typically rated between 30A and 60A, while relays рядом управляют переключением нагрузки для стартера и топливного насоса.

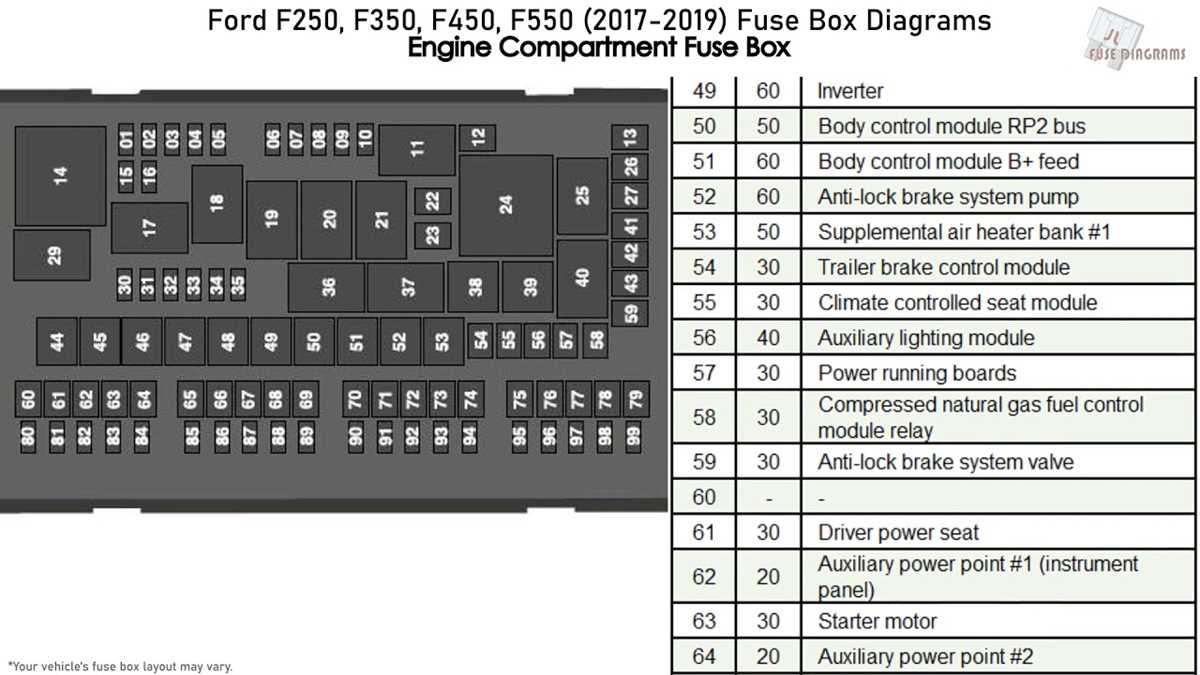

Engine compartment layout and relay positions
Identify relay positions by symbols and codes printed on the cover, then verify pin configuration before swapping components, since mismatched layouts can cause non-working systems or intermittent faults.
Use identical part numbers when replacing switching units, especially for ignition and PCM power circuits, where incorrect installation may lead to no-start conditions.

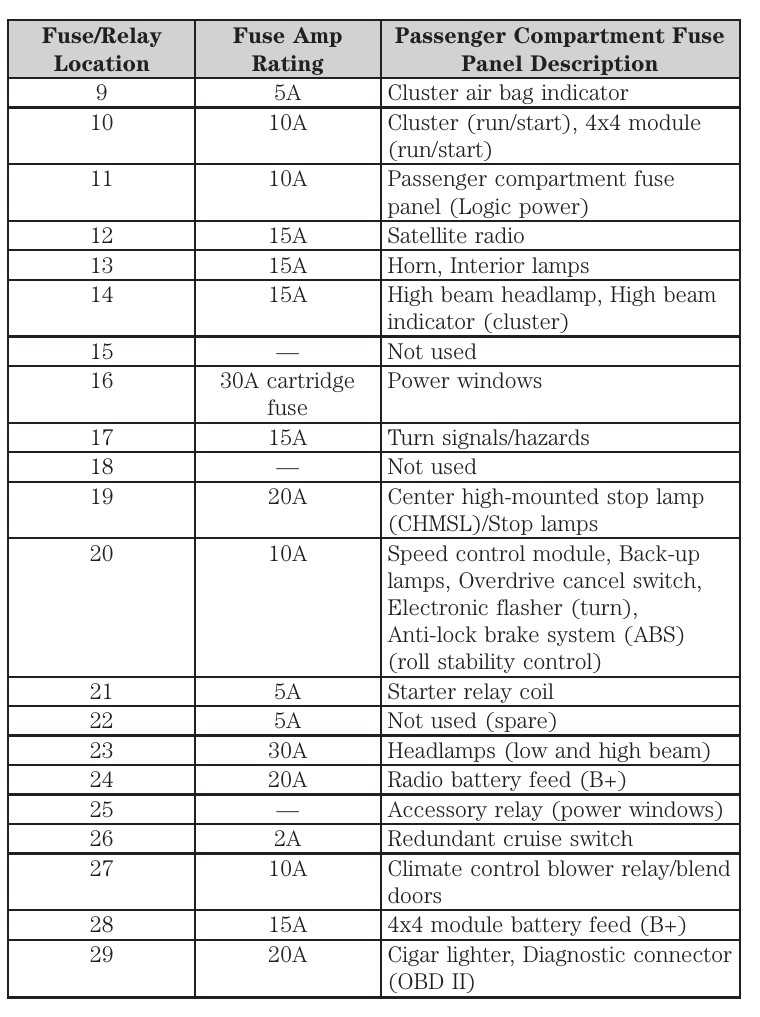

Interior panel access and circuit mapping
Locate the cabin panel behind the passenger side trim and remove the cover to access low-amperage circuits tied to dashboard electronics, interior lighting, and auxiliary power outlets.
Check each slot against the printed chart and inspect the metal strip inside each element for breaks or discoloration, which indicate failure and require replacement with the same rated component.
Exact locations of engine bay and cabin fuse boxes in 2011 Ford Super Duty

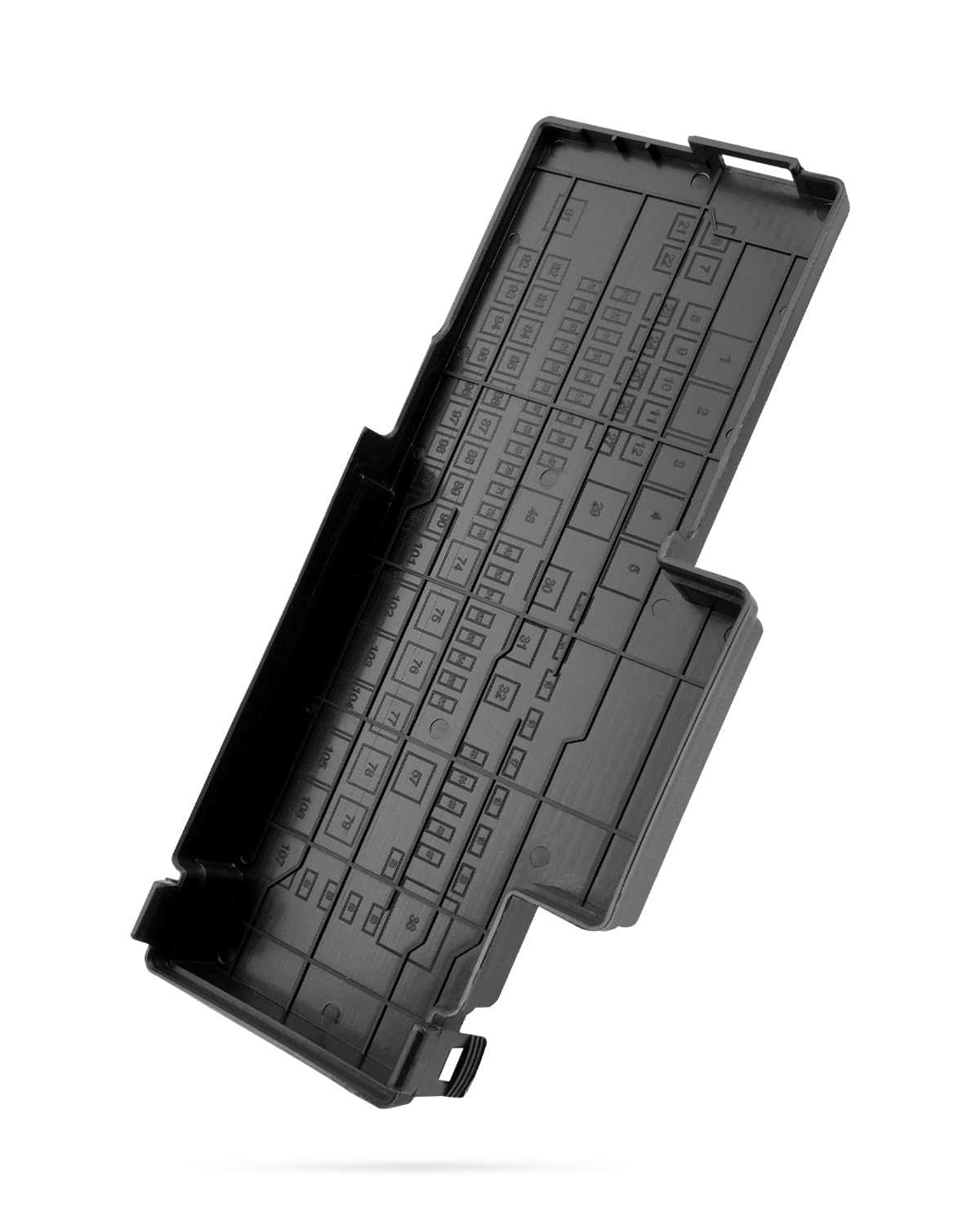

Open the hood and look along the driver side fender near the battery to find the main power distribution unit secured with a rectangular plastic cover.
Release the side clips and lift the cover upward to access high-current links and relays controlling systems like starter motor, trailer tow circuits, and cooling fans.
Use the following visual cues to confirm correct placement:
- Positioned close to battery terminals
- Large black housing with snap-on lid
- Label printed on the underside of the cover
For the interior panel, move to the passenger side footwell and locate the trim panel near the kick area, which hides the secondary electrical block.
Pull the cover outward to reveal rows of blade-type components assigned to cabin electronics such as radio, interior lights, and diagnostic port.
Follow this sequence to access it quickly:
- Open passenger door
- Locate side trim near ноги area
- Grip and remove panel cover
- Refer to printed chart inside lid
Keep both covers secured after inspection to protect contacts from moisture, debris, and accidental contact with metal objects.
