Check the power distribution unit near the battery first before tracing any electrical fault, as most high-current circuits are routed through this assembly. Lift the protective cover and inspect the label on the inside; it lists circuit numbers, relay positions, and amperage values. Match each slot with the printed scheme to avoid pulling the wrong component.
Each circuit is protected by a calibrated link rated from 10A to 60A depending on load. Cooling fans, ABS module, and ignition system usually rely on higher ratings, while control modules and sensors use lower ones. If a circuit stops working, compare the metal strip inside the link–any break or discoloration indicates failure and requires replacement with the same rating.
Use a multimeter or test light to verify power at both terminals before removing anything. This prevents unnecessary part swaps and helps pinpoint wiring faults or relay issues. Keep a spare set of links in the glove compartment, as access under the hood allows quick roadside replacement without specialized tools.
2010 Ford Focus Engine Fuse Box Diagram Guide

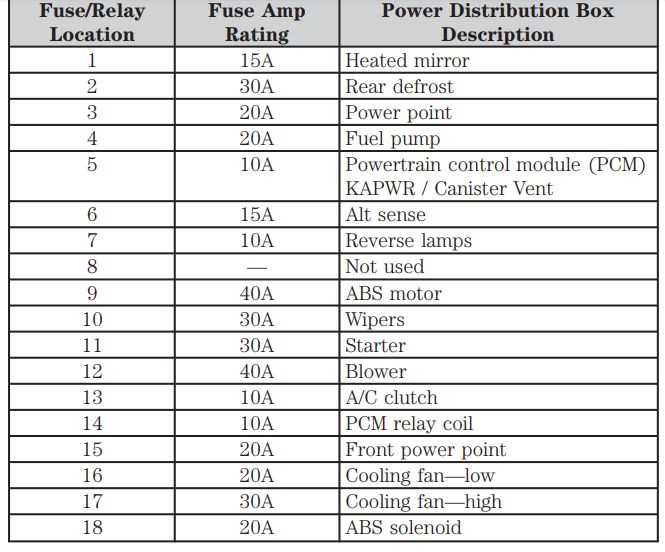

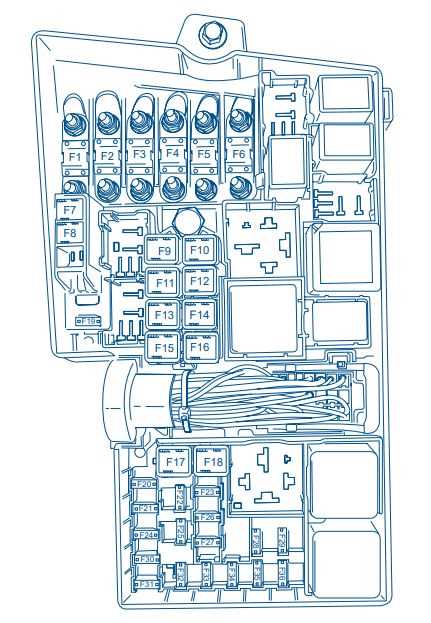

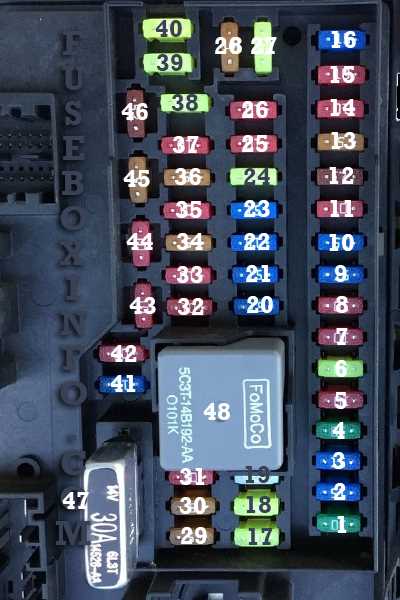

Locate the power distribution unit next to the battery and remove its plastic cover to access the layout chart printed inside. This chart maps each slot to a specific circuit such as cooling fan, fuel pump, or ignition control. Align the numbering on the cover with the slots to avoid confusion during inspection.
Check high-amperage links first, typically rated between 30A and 60A, as they supply systems like radiator fans and ABS. Lower-rated elements, usually 10A to 25A, protect sensors, control modules, and lighting circuits. Always replace a damaged link with the same rating to prevent wiring damage or component failure.
Use a test light or multimeter to confirm voltage on both sides of each protective element. If power is present on one side only, the strip inside has failed. If no power is detected at all, trace back to the battery connection or main relay for possible issues.
Relays inside the same unit control switching for major systems such as starter motor and cooling fans. Swap a suspected faulty relay with an identical one from a non-critical circuit to verify operation before purchasing a replacement.
Keep the contact points clean and free from corrosion, especially in regions with moisture exposure. Oxidation can interrupt current flow even if the protective element itself is intact, leading to intermittent electrical faults.
Carry spare links and a small puller tool in the vehicle, as quick access to this compartment allows on-the-spot fixes for non-functioning circuits without additional equipment.
Exact Engine Bay Fuse Box Location and Access Steps for 2010 Ford Focus
Open the hood and move directly to the area beside the battery on the driver side, where the main power distribution unit is mounted in a black plastic housing secured with clips.
Release the retaining tabs by pressing them outward with your fingers or a flat screwdriver, then lift the cover straight up without twisting to avoid breaking the hinges.
Inspect the underside of the lid immediately after removal, as it contains a printed layout showing slot numbers and circuit assignments; keep it visible during any work.
Ensure the ignition is switched off and remove the key before touching internal components, as several circuits remain live and can cause shorting if metal tools contact exposed terminals.
Use a plastic puller or insulated pliers to extract protective links from their sockets, applying steady upward force rather than rocking side to side, which can loosen the contacts.
After completing checks or replacements, align the cover with the housing edges and press firmly until each clip locks into place, confirming a tight seal that protects internal wiring from moisture and debris.
