Check the passenger compartment power distribution panel first, located beneath the dashboard near the center console, as most cabin-related electrical faults originate there. Use a multimeter to confirm voltage at each terminal before removing any protective element.
This vehicle uses two main distribution units: one inside the cabin and another in the engine compartment. The interior unit handles lighting, infotainment, and accessory circuits, while the engine bay unit manages high-load systems such as cooling fans and control modules. Each slot is labeled with a number and amperage rating, which must match the installed component exactly.
Common issues include oxidized контакts, partially seated elements, and heat damage on high-current lines. Inspect terminals for discoloration or looseness, especially in circuits linked to power steering, braking assist, and battery management systems, as these are frequently stressed during operation.
Access requires removing a trim cover secured by clips; no advanced tools are needed. After opening, compare the numbering with a verified layout reference to identify each circuit path and avoid disconnecting active control modules unintentionally.
2010 Ford Escape Hybrid Fuse Box Diagram Layout and Circuit Identification
Match each numbered slot on the interior and engine compartment power panels with its assigned circuit using a verified layout reference, focusing first on systems that have stopped working completely.

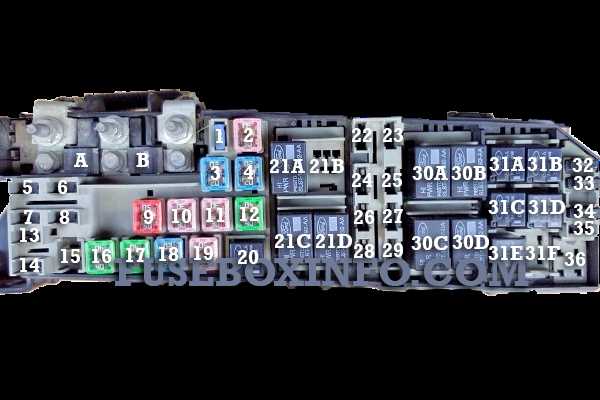

The cabin panel typically contains low to mid-amperage защитные элементы ranging from 5A to 20A, assigned to lighting, audio system, climate control, and dashboard electronics. Numbers are printed directly beside each slot, allowing quick identification when cross-referenced with a layout chart.

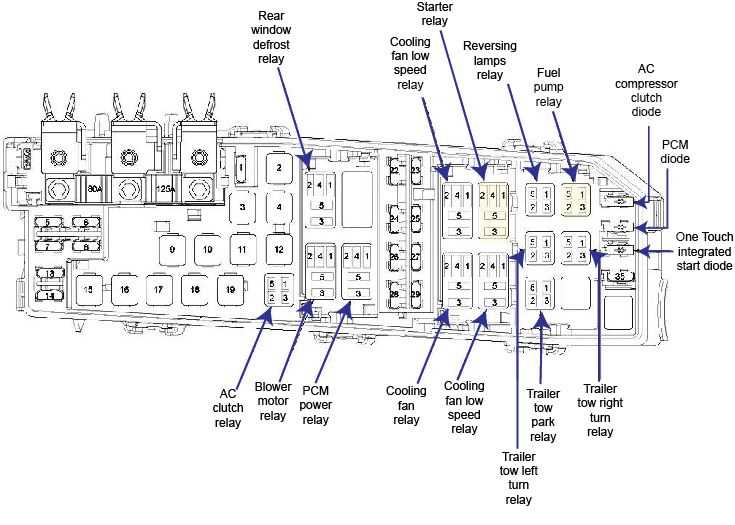

Under-hood distribution handles higher loads such as cooling fans, ABS module, and electric steering assist. These positions often use larger amperage ratings like 30A or 40A and are paired with relays mounted рядом.
Reading slot numbering and circuits
Identify circuits by both number and wire color. Yellow or green wires often connect to lighting systems, while thicker red cables indicate постоянное питание from the battery.
Each circuit path is grouped logically; for example, multiple interior lighting functions may share adjacent positions on the panel, which helps narrow down faults affecting several components at once.
Do not rely only on visual inspection. Use a multimeter to check continuity across each protective element, since internal breaks are not always visible.
Common identification mistakes
Mixing up relay positions with standard protective links can lead to incorrect replacements, as relays control switching rather than overload protection.
Installing a higher amperage component than specified may temporarily restore operation but can damage wiring insulation and connected modules over time.
Interior and Engine Bay Fuse Panel Locations in 2010 Ford Escape Hybrid
Open the passenger-side lower dash cover near the center console to access the interior power distribution panel, which controls most cabin электроцепи and low-amperage circuits.
Release the cover by pulling it outward from the top edge; it is held in place by plastic clips and does not require tools. Once removed, the panel with numbered slots becomes visible.
Interior access details
- Positioned below dashboard on passenger side
- Protected by a removable plastic cover
- Handles lighting, infotainment, and accessory lines
- Includes small amperage elements typically under 20A

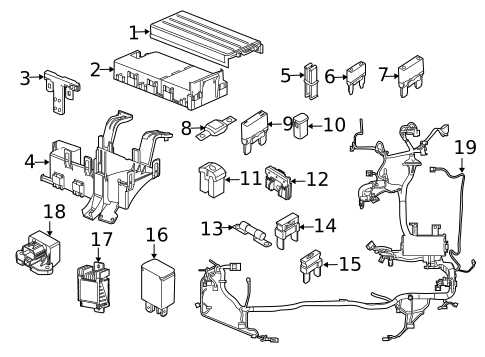

The engine compartment distribution unit is located near the battery, usually on the driver side, inside a sealed housing designed to protect high-current circuits from moisture and debris.
To open it, press the side latches and lift the крышка upward. Inside, you will find larger protective elements and relays responsible for systems like cooling fans, braking modules, and power steering.
Engine bay access steps
- Switch off ignition and disconnect battery
- Locate rectangular housing near battery
- Press retaining clips on both sides
- Lift cover to expose internal layout
After inspection, secure all covers tightly to prevent water intrusion and maintain stable electrical contact across all terminals.
