Locate the main power distribution unit under the hood near the battery before checking any electrical fault. This van uses several circuit protection blocks, each responsible for specific systems such as lighting, ignition, and auxiliary equipment. Opening the cover reveals a numbered layout that corresponds to a reference chart for quick identification.
Each protective element has a defined amperage rating, commonly ranging from 5A to 40A, with color coding for fast recognition. Always replace with the same rating to avoid overheating or damage to connected components. A broken metal strip inside indicates a failed element and requires immediate replacement.
Additional electrical panels are located inside the cabin, typically beneath the dashboard, handling lower load circuits such as radio, interior lighting, and control modules. Using the layout reference allows accurate tracing of faults and reduces unnecessary removal of working components.

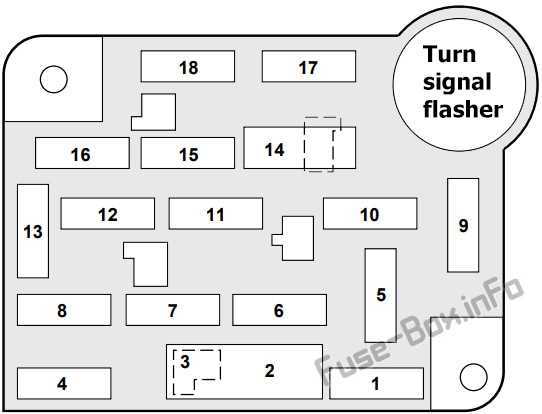

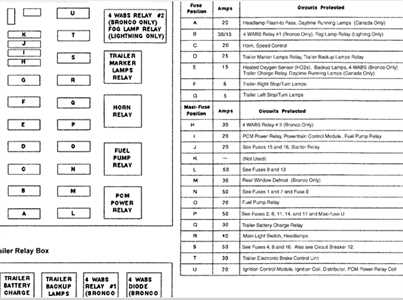

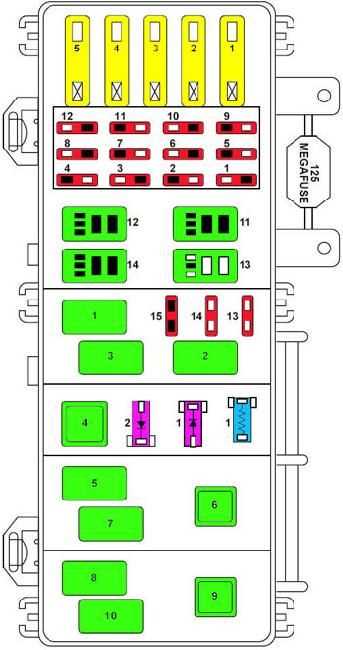

2009 Ford E250 Fuse Box Diagram
Use the reference chart under the power distribution cover to locate the correct circuit before removing any protective element. Each slot is numbered and tied to systems such as ignition, lighting, or auxiliary equipment.
The layout separates high-load and low-load circuits, allowing faster identification of problem areas. Engine-related systems are grouped together, while interior electronics are arranged in separate rows.
Reading Circuit Layout and Assignments
Follow these steps to match each position with its function:
- Check the slot number printed on the housing
- Match it with the reference chart label
- Identify the connected system such as fuel pump or radio
- Confirm amperage rating before removal
This method reduces the risk of disconnecting unrelated circuits.
Inspection and Replacement Steps
After locating the correct position, remove the component and verify its condition:
- Inspect the internal strip for breaks
- Use a multimeter to test continuity
- Compare amperage value with the original
- Install a replacement with identical rating
Never install a higher-rated element, as it can lead to wiring damage and overheating.
Accurate use of the layout reference combined with systematic checks helps identify electrical faults without unnecessary part removal.
Exact Fuse Box Locations in Engine Compartment Cabin and Rear Section
Open the hood and locate the main power distribution unit near the battery on the driver side. This large housing contains high-current protection elements and relays tied to engine systems, cooling fans, and charging circuits. Release the cover clips to access the internal layout and reference markings.
Check beneath the dashboard on the driver side for the interior electrical panel. This section is hidden behind a removable trim cover and handles lower load circuits such as lighting, audio, and control switches. Use a flashlight to read slot numbers clearly due to limited visibility.
Inspect the rear section if equipped with auxiliary systems, usually near the cargo area side panels. This location may contain additional distribution blocks for rear lighting or optional equipment. Access requires removing trim panels, and care should be taken to keep connectors clean and dry during inspection.
