Use a verified panel layout chart before touching any circuit: the truck contains two main distribution blocks–one under the hood near the battery and another inside the cabin below the steering column–each controlling distinct systems such as trailer brakes, glow plugs, power windows, and instrument cluster.
The engine-bay block handles high-current lines. Relays for starter control, fuel pump, and cooling fan are positioned alongside cartridge-type links rated from 30A to 175A. For example, the cooling fan circuit typically relies on a high-amperage link exceeding 60A, while trailer tow circuits use separate protected channels to prevent overload during hauling operations.
Inside the cabin, the secondary panel distributes lower current paths. Mini blade links in the 5A–30A range protect lighting, audio system, diagnostic port, and climate control. A frequent issue appears with the 15A slot tied to the radio and interior illumination, where poor contact leads to intermittent shutdowns while driving.
Pinpoint identification is printed on the reverse side of each panel cover, but factory markings can fade over time. Cross-check numbering with a service manual or a scanned reference sheet to avoid mismatching circuits, especially when dealing with ABS or airbag lines where incorrect replacement may trigger warning indicators or disable safety systems.
Always match amperage exactly; installing a higher-rated element risks wiring damage, while a lower rating leads to repeated failure under normal load. Keep spare components in the glove box, focusing on commonly used ratings like 10A, 15A, and 20A, which correspond to most cabin electronics.
Power Distribution Layout: Practical Guide for Identification and Troubleshooting
Check the legend on the inside cover of the power box under the hood and match cavity numbers with circuit names before removing any element; for example, slot #22 typically feeds the fuel pump relay, while #30 often protects trailer lighting circuits. Use a multimeter set to continuity mode to verify each link instead of relying on visual inspection, since micro-cracks in the metal strip are common. If a circuit repeatedly fails, measure current draw at the load side: values exceeding the rated amperage (e.g., 20A circuit pulling 26A) indicate a downstream short or faulty component rather than a defective protective element.
Cab Panel Mapping and Fault Isolation
Locate the interior panel on the passenger side kick area and cross-check numbering with the service manual; positions like #5 (instrument cluster), #11 (OBD port), and #17 (radio) are frequent failure points when accessories stop working simultaneously. Pull one piece at a time using insulated pliers, then probe both terminals in the socket with ignition on–one side must show battery voltage, the other should mirror it when intact. If only one side is live, replace with identical rating; if neither side has voltage, trace back to the main distribution box or ignition switch output. For intermittent issues, lightly tap relays in the engine bay box while monitoring voltage drops–contact wear inside relays often mimics wiring faults.
Locating Interior and Engine Compartment Fuse Boxes in the 2008 Ford F350

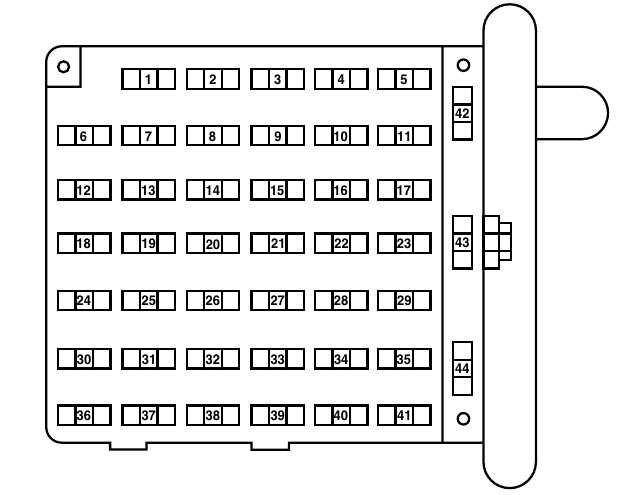

Check beneath the dashboard on the driver’s side: the cabin electrical panel is fixed behind a removable plastic cover positioned just left of the steering column. Release the retaining clips by hand and pull the cover straight out; inside, you’ll find a tightly packed grid of blade-type elements labeled with small printed codes. A flashlight helps because the panel sits deep and slightly angled upward, making markings difficult to read in low light.

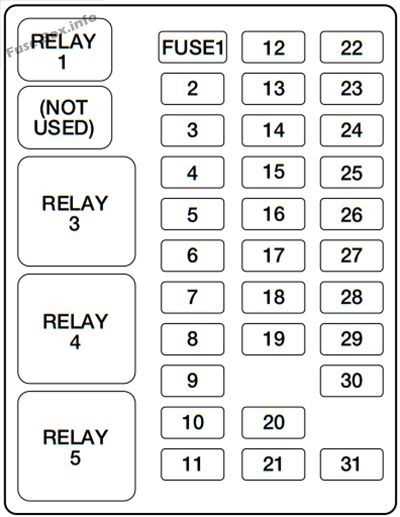

Under the hood, the primary power distribution unit is mounted near the battery on the driver’s side of the engine bay. It is enclosed in a rectangular black housing with a snap-on lid; press the locking tabs and lift carefully to avoid cracking the plastic in cold weather. Inside, larger cartridge-style links and relays are arranged in rows, each corresponding to high-load systems like cooling fans, ABS, and ignition circuits.
Access Tips for Tight Spaces
Move the driver’s seat fully back before reaching under the dash to prevent strain, and angle your head upward rather than lying flat; this improves visibility of the panel’s lower edge. In the engine compartment, ensure the ignition is off and remove any metal accessories from your hands to prevent accidental contact with live terminals. Keep a small puller tool nearby, as fingers alone often cannot grip tightly seated components.
Visual Identification and Layout Clues
The interior panel uses smaller color-coded inserts, while the engine bay unit contains a mix of larger square relays and high-amperage strips; this contrast helps distinguish them instantly. The cabin unit is surrounded by trim matching the dashboard color, whereas the under-hood box stands out with a matte black casing and embossed symbols on its lid. Matching these visual cues speeds up location without relying on manuals.
