Check the power distribution panels first when any electrical component stops working, as each circuit is protected by a dedicated link with a specific amperage rating. On this heavy-duty pickup, two main panels control most systems: one inside the cabin and another under the hood. Use the cover label or service manual to match each slot with its assigned function before removing anything.

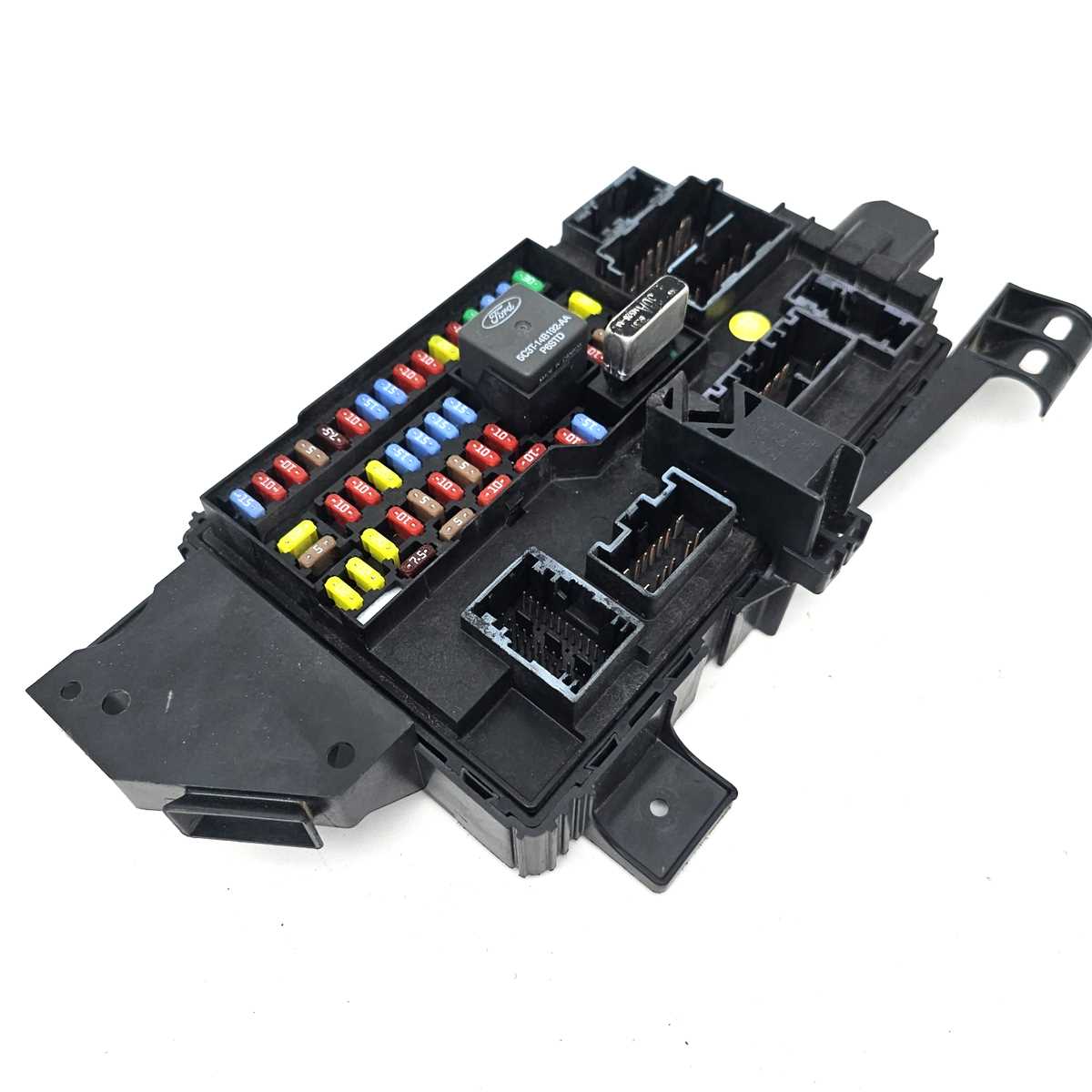

The interior panel is typically placed near the passenger side footwell or behind a trim cover, where low-current circuits such as infotainment, interior lighting, and control modules are grouped. Pull the access panel carefully and use a small puller tool to remove a blown element, checking for a broken metal strip or discoloration.

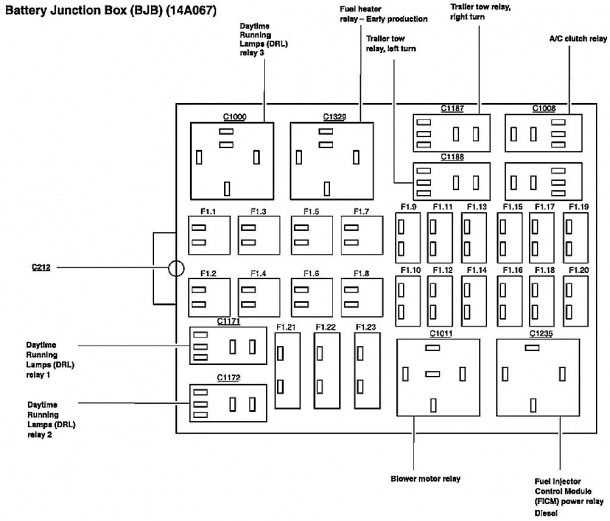

Under the hood, the power distribution center handles high-load systems like cooling fans, fuel delivery, and engine management. Each position is marked with a number and linked to a relay or protective element. Always match the amperage exactly when replacing a failed component, as installing a higher rating can damage wiring and connected devices.
When diagnosing repeated failures, inspect wiring harnesses and connectors near the affected circuit instead of replacing parts repeatedly. Moisture, corrosion, or loose terminals often cause recurring issues, especially in engine bay areas exposed to heat and vibration.
2008 Ford F350 6.4 Fuse Box Diagram With Relay Locations and Circuit Map

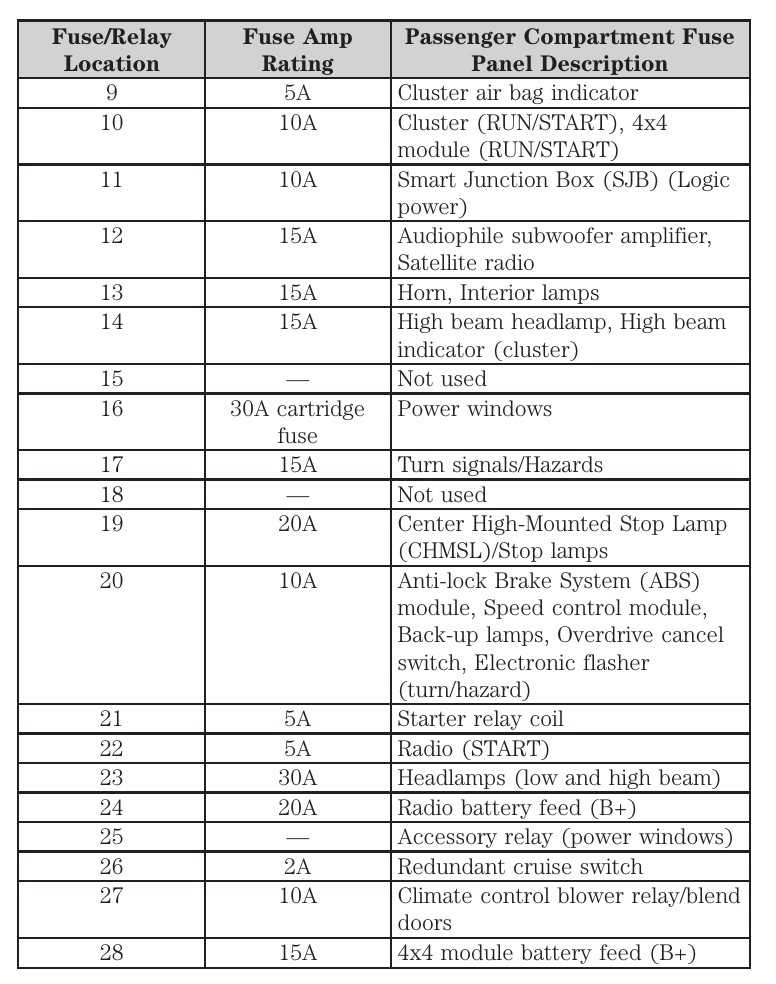

Locate the correct power distribution panel and match each slot number with its assigned circuit before testing or replacing any component. Use the cover legend or service manual to identify systems like fuel pump, glow plugs, HVAC, and lighting. Typical layout includes grouped circuits with labeled positions and amperage values:
- Low-current slots for interior electronics and control modules
- Mid-range protection for lighting and accessory outlets
- High-load circuits for engine systems and cooling fans
- Dedicated relay positions for starter, blower motor, and fuel delivery
Check relay positions adjacent to high-load circuits and verify switching function by swapping with a known working unit of the same type; listen for a click during ignition or system activation, and inspect terminals for heat marks or corrosion before reinstalling.
Exact fuse panel locations under hood and inside cabin with access steps
Open the hood and move to the driver-side rear corner of the engine bay where the main power distribution center sits near the battery; press the locking tabs on the cover and lift it straight up to expose the high-current circuits and relays.
Inside the cabin, check the passenger-side footwell area where a secondary panel is mounted behind a removable trim piece; pull the cover outward using the molded grip and set it aside to access smaller circuits tied to interior systems and electronic modules.
Use a plastic trim tool when removing interior panels to avoid damaging clips, and keep track of fasteners if present, since some variants use a small screw or snap-in design to secure the cover in place.
After access, align each slot with the legend printed on the cover underside or owner manual, then reinstall covers firmly until tabs click back into position to prevent vibration or moisture entry.
