Check the primary electrical panel under the hood first: it sits near the battery on the driver’s side and contains high-current links for ignition, charging system, trailer circuits, and glow plugs (for diesel variants). The inner cover usually carries a printed layout–if missing, match each slot by amperage rating and wire color. For example, 30A green positions often serve cooling fans or trailer feed, while 10A red lines are tied to control modules and sensors.
Inside the cabin, inspect the secondary panel behind the kick panel or below the steering column. This area distributes power to interior systems such as HVAC controls, radio, power windows, and instrument cluster. A common pattern: 15A blue circuits for accessory outlets and infotainment, 20A yellow for wiper motor and central locking. If a component fails intermittently, pull the corresponding element and examine for hairline breaks rather than obvious burns.
Use a multimeter set to continuity mode to verify each link instead of relying on visual inspection. Remove the element, probe both terminals, and confirm a closed circuit. If voltage is present on one side only when installed, trace upstream to relays located in the engine compartment panel. These relays control starter engagement, fuel delivery, and high-load devices; swapping identical units can quickly confirm a faulty relay without new parts.
Pay attention to ground points and corrosion. Oxidation near the battery tray or firewall can mimic a failed circuit by introducing resistance. Clean contacts with a wire brush and apply dielectric grease. For towing setups, inspect the dedicated trailer power feed–miswiring here often leads to repeated element failure in the engine bay panel.
When replacing any blown piece, match the amperage exactly. Installing a higher rating risks overheating the harness; a lower rating may trigger nuisance outages. Keep a small kit with common values (10A, 15A, 20A, 30A) in the glove compartment to handle roadside issues without delay.
2008 Ford F250 Super Duty Fuse Box Diagram: Practical Guide
Check the power distribution panel under the hood first, as most high-current circuits like starter relay, cooling fan, and trailer connections are routed there; use a test light instead of guessing, and verify both sides of each protective element to confirm continuity.
Inside the cabin, locate the interior electrical panel near the passenger footwell; small blade-type protectors here control lighting, radio, and dashboard functions, and a quick inspection for discoloration or melted plastic often reveals overload history without removing every component.
For accurate identification, rely on the legend printed on the panel cover, but cross-check with a service manual because labeling can differ by trim level; circuits for towing package, diesel heater, or upgraded audio systems may shift positions compared to base configurations.
If a circuit repeatedly fails, measure current draw with a multimeter set in series and compare against the rated amperage stamped on the element; a reading close to the limit suggests a worn motor or partial short rather than a simple overload event.
Corrosion is common in engine-bay panels exposed to moisture; clean terminals with electrical contact cleaner and a nylon brush, then apply dielectric grease to prevent voltage drop that can mimic a blown component.
Common Layout Details
The engine compartment panel typically groups relays on one side and high-amperage links on the other, while the interior panel arranges smaller circuits in vertical rows; knowing this pattern reduces search time when troubleshooting power windows, instrument cluster, or ignition feed.
Spare elements are often clipped into the panel housing; use them only after identifying the root cause, since replacing a burned unit without fixing the underlying fault leads to repeated failure and possible wiring damage.
Practical Troubleshooting Tips
When multiple systems fail simultaneously, inspect shared grounding points and main distribution links rather than individual circuits, as a single loose ground strap can disable lighting, control modules, and accessory sockets at once.
Exact Location of Interior and Engine Compartment Fuse Boxes in 2008 Ford F250 Super Duty

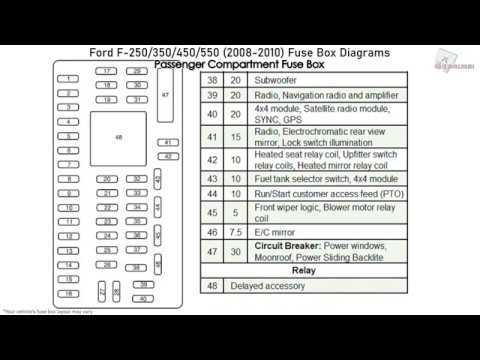

Check the cabin panel first: it sits below the dashboard on the passenger side, directly behind a removable plastic cover. To access it, open the front passenger door and look under the glove compartment area–there is a rectangular trim piece that snaps out with light pressure. No tools are required, but a flat trim tool can help avoid scratches.
This interior power distribution unit is mounted vertically against the side wall, not flat like many expect. Wiring harnesses enter from the top and rear, so visibility is limited unless you kneel outside the vehicle and look upward. A small flashlight makes identification of circuits much easier.

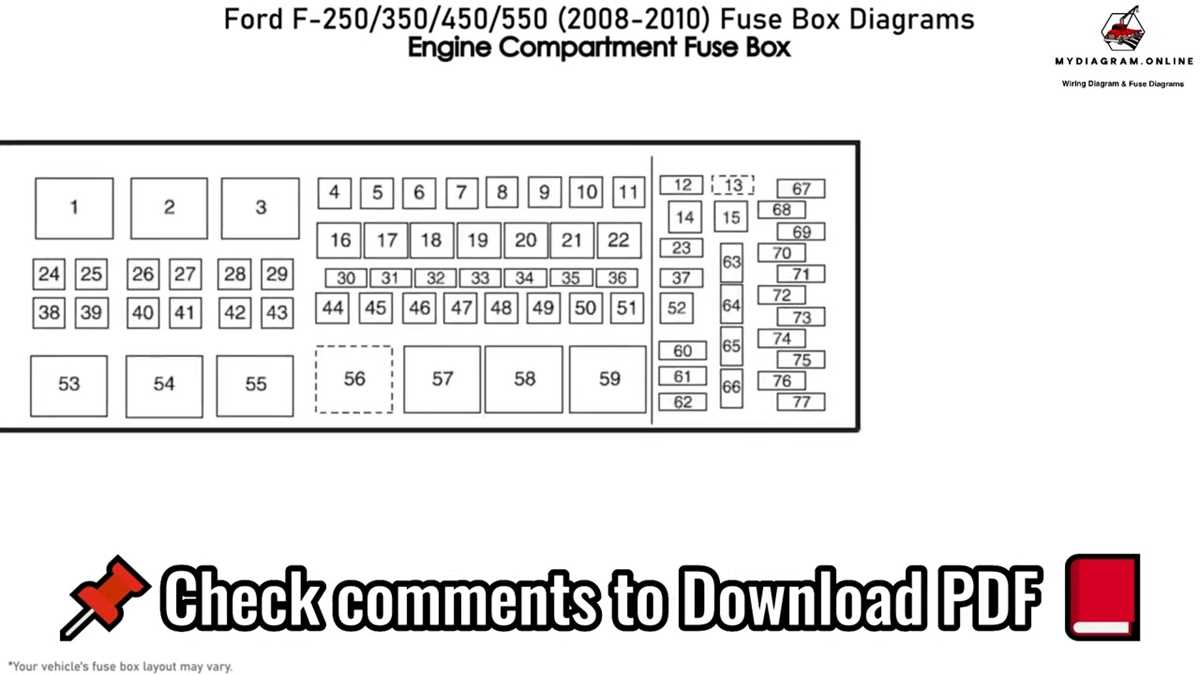

Under the hood, the main electrical center is positioned on the driver’s side near the battery. It is a large black plastic housing with a locking lid. Release the clips on both sides and lift the cover straight up–hinges are not used here, so avoid forcing it sideways.
Inside the engine compartment unit, components are arranged in a grid pattern with clearly molded labels on the underside of the lid. The enclosure is secured to a bracket close to the fender, which keeps it stable even during vibration. Make sure the lid is reseated tightly after inspection to prevent moisture intrusion.
Access Tips
For the cabin section, move the passenger seat fully backward to create working space. For the engine area, perform checks only when the engine is off and cooled down; heat from nearby components can be significant. Gloves are recommended due to tight clearances and sharp edges around mounting points.
Common Mistakes
Many assume the interior panel is behind the steering column–this is incorrect for this model. Another frequent issue is overlooking the secondary locking tabs on the engine compartment cover, leading to cracked plastic. Always inspect the edges before applying force.
