Locate the primary power distribution unit under the hood on the passenger side and verify each circuit by amperage rating before replacing any element. This vehicle uses a split configuration: one module in the engine compartment and another inside the cabin near the kick panel. Each slot corresponds to a specific system such as ignition coils, fuel delivery, lighting circuits, and climate controls. Matching the amperage marking on the plastic housing with the installed component prevents damage to wiring and control modules.
Under-hood distribution center contains high-load links ranging from 20A to 60A. These protect subsystems like radiator fan operation, ABS pump, and starter relay. For example, the cooling fan typically uses a 40A slot, while the anti-lock braking system relies on a separate high-capacity link. Always disconnect the battery before accessing this section to avoid short circuits.
Interior panel manages lower-load circuits such as audio system, interior lighting, dashboard cluster, and auxiliary outlets. Ratings here usually vary between 5A and 30A. A blown 15A element often indicates issues in the radio or infotainment wiring, while a 10A slot is commonly assigned to instrument illumination. Replacing a failed unit with a higher rating risks overheating the harness.
Use the molded numbering inside the cover lid as a reference rather than relying on generic схемы from the internet. Factory labeling aligns with the exact trim and engine configuration, which may differ between production batches. Cross-checking this numbering with the owner’s manual ensures precise identification of each protected circuit.
Fuse Panel Layout: Practical Guide
Check the owner’s manual first and match each circuit slot with its amperage rating before touching anything. In this model, the primary panel under the hood contains high-current links for the starter, cooling fan, and charging system, while the cabin-mounted unit handles lighting, audio, and accessory lines. Always confirm the rating stamped on the metal strip–using a higher value can damage wiring.
Locate the engine compartment panel near the battery housing; release the clips carefully to avoid cracking the plastic cover. Inside, a printed scheme identifies each relay and protective element. Pay attention to positions assigned to the fuel pump relay and ignition coils–misplacing them leads to no-start conditions or intermittent stalling.
The interior distribution block sits beneath the dashboard on the driver’s side. Remove the trim panel to access it. Circuits for power windows, central locking, and instrument cluster are grouped here. If the dashboard goes dark, inspect the small 5A or 7.5A inserts in the upper rows rather than the larger units.
When diagnosing electrical faults, use a multimeter instead of visual inspection alone. A strip may appear intact but fail under load. Probe both terminals with the ignition in the appropriate position; a reading difference indicates a break. This method is especially useful for troubleshooting headlight and radio issues.
Common Circuit Assignments
Cooling fan control typically uses a 30A or higher insert in the engine compartment panel. The audio system and auxiliary outlets rely on mid-range ratings between 10A and 20A. Anti-lock braking and airbag modules have dedicated protected lines; avoid probing those connectors directly to prevent accidental deployment or system errors.
For replacement, pull the damaged piece using the plastic extractor stored inside the cover. Insert the new one firmly until seated flush. Loose contact causes heat buildup and intermittent operation, often mistaken for sensor failure. Keep spare inserts of various ratings in the glove compartment for quick fixes.
Maintenance Tips
Inspect terminals for corrosion twice a year, especially in humid climates. Clean contacts with electrical cleaner spray and ensure the cover seals tightly. Water ingress leads to oxidation and unpredictable faults across multiple systems, from lighting to engine management.
Exact fuse box locations in the 2007 Ford Mustang 4.0 and how to access them safely

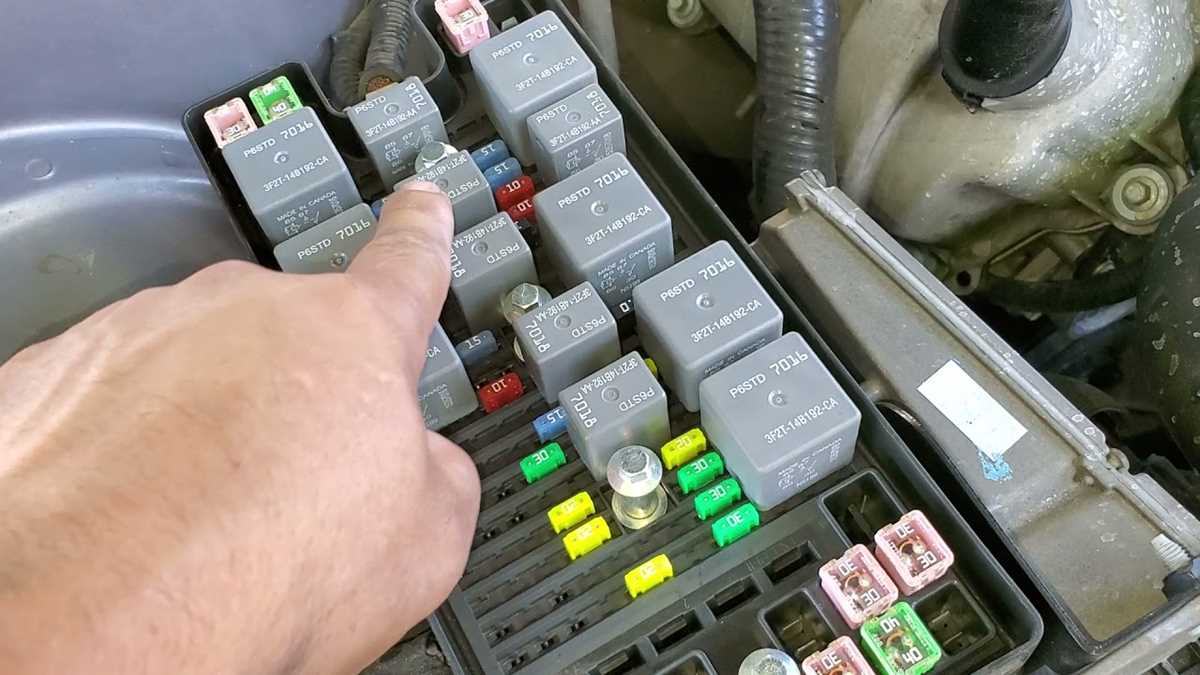

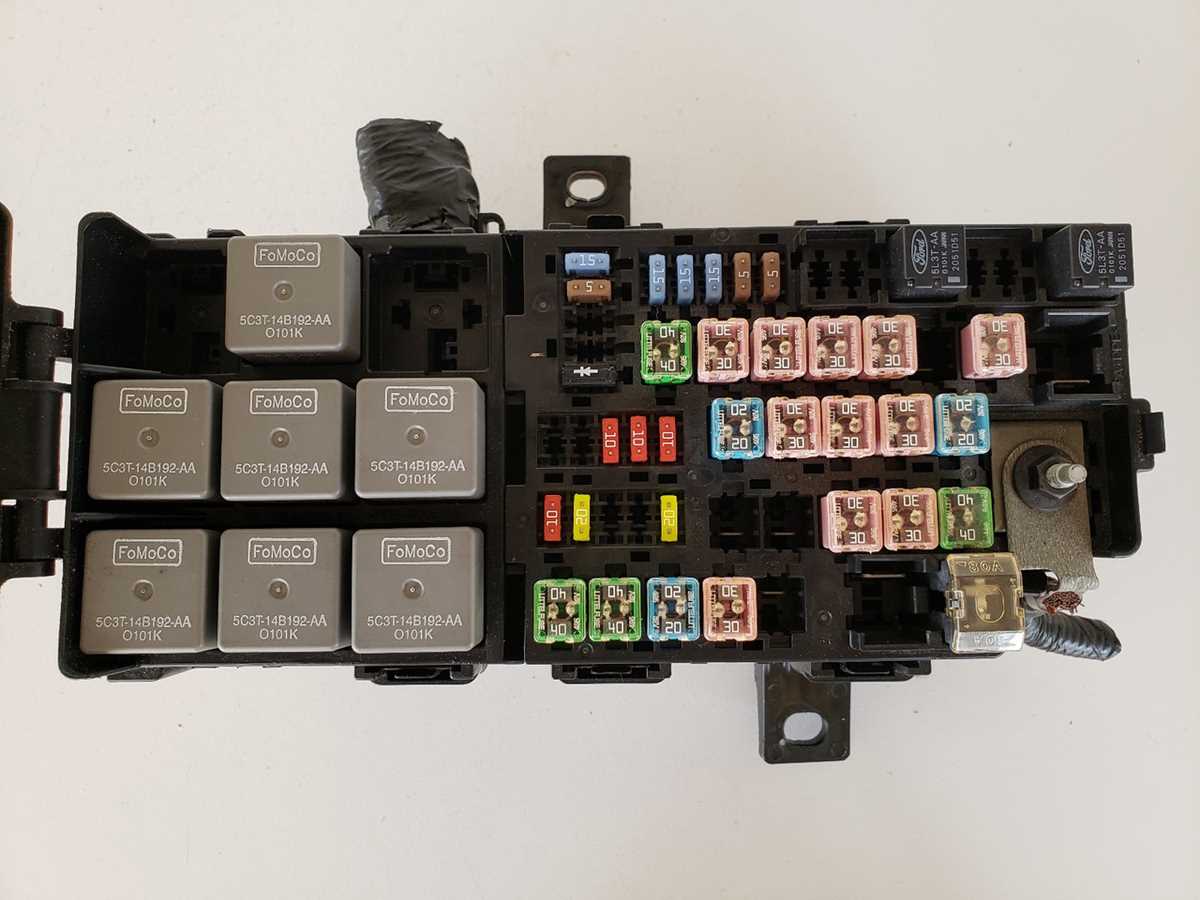

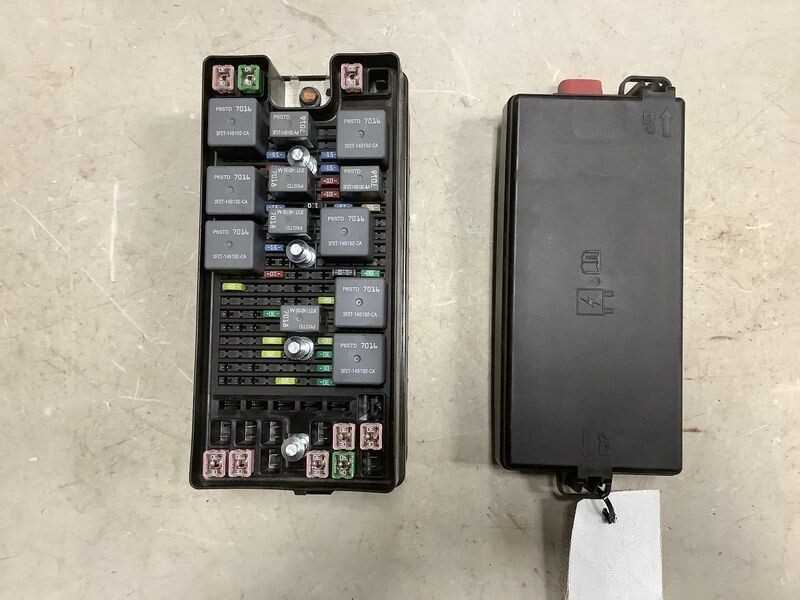

Open the hood and locate the primary electrical distribution unit on the passenger side near the firewall; it sits in a black plastic housing with a clipped lid. Release the side tabs by pressing inward and lifting the cover straight up–do not pry with metal tools to avoid shorting contacts. Inside the cabin, the secondary panel is positioned behind the passenger-side kick panel, just ahead of the door hinge; pull the trim outward carefully to reveal it. Always disconnect the negative battery terminal before touching any internal connectors to reduce the risk of accidental current flow.
Access requires attention to small details: the engine-bay unit is sealed tightly to prevent moisture ingress, so expect firm resistance when opening it; use steady hand pressure rather than jerking. The interior panel sits behind a flexible trim piece secured by clips rather than screws, so it can be removed without tools if pulled evenly from the edges. Ensure the ignition is fully off and the key removed before opening either location. Keep a plastic puller tool on hand to remove components without damaging their metal legs or the surrounding slots.
- Engine compartment unit: passenger side, rear corner near windshield; release two locking tabs, lift cover vertically.
- Interior panel: passenger footwell, behind side trim; pull panel outward from the top edge first.
- Safety steps:
- Disconnect negative battery cable.
- Wait at least 2–3 minutes to allow residual charge to dissipate.
- Use non-conductive tools only.
- Avoid touching adjacent terminals with fingers or tools.
- After inspection, reseat all elements firmly and close covers until they click to maintain proper sealing.
