Locate the main compartment beneath the dashboard on the driver’s side to inspect the network of protective elements. Each slot is labeled for circuits like headlights, ignition, and climate controls, allowing precise identification without trial and error. Ensure the vehicle is turned off before handling any connectors.
For under-hood inspections, open the front panel near the battery to reveal the secondary control module. Color-coded connectors and numeric markings simplify tracing faults in auxiliary systems such as wipers, horn, or trailer wiring. Using a flashlight can help spot corrosion or loose terminals that may cause intermittent issues.
When replacing any protective component, match the amperage exactly with the original to prevent overheating. Documenting each circuit before removal helps avoid confusion during reassembly. Regular checks of this compartment can prevent unexpected shutdowns of critical electronics.
Keep a compact reference chart or photograph of the layout inside the glove compartment. This ensures rapid access during roadside troubleshooting and reduces the risk of misplacing parts during maintenance. For vans equipped with aftermarket accessories, note any modifications that alter the original configuration.

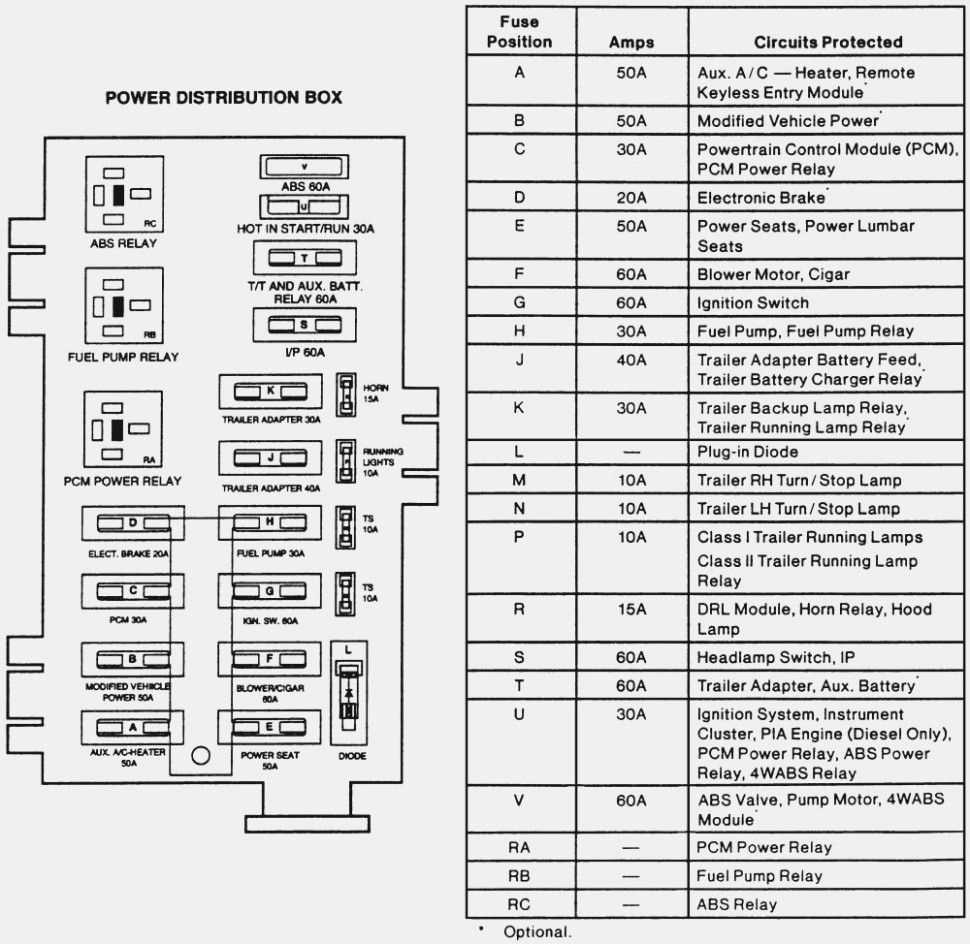

2006 Ford E-150 Fuse Box Layout
Access the main power distribution panel located under the driver’s side dash to identify each circuit’s protective link. For auxiliary systems such as the trailer connector, rear lighting, or power seats, locate the 15A to 30A sections clearly labeled on the cover. Always verify amperage ratings against the engraved chart on the inside lid before replacing any blown element to prevent overloading critical circuits.
The secondary relay panel behind the glove compartment controls the HVAC, horn, and ignition modules. Each slot corresponds to a unique color-coded conductor, allowing quick visual checks. For troubleshooting, use a multimeter at each terminal to confirm continuity, avoiding guesswork that could damage onboard electronics.
Locating the Power Distribution Panel in the 2006 Van

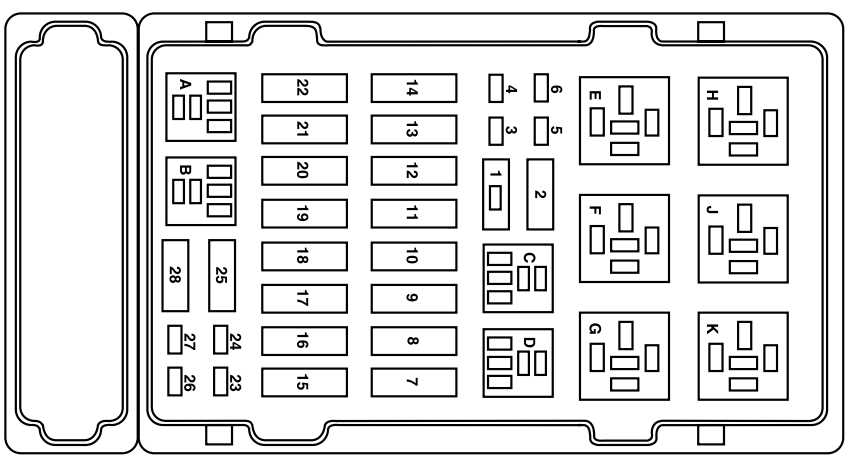

Access the primary electrical hub by opening the driver’s side door and looking beneath the dashboard near the left kick panel. The access cover is black, rectangular, and secured with simple clips that can be released by hand.
Under the hood, another control panel sits adjacent to the battery on the passenger side. Lift the plastic lid to reveal rows of fuses and relays, each labeled with miniature embossed text indicating the circuit function.
For interior connections, the left-side panel under the steering column hides smaller modules controlling lighting, audio, and auxiliary outlets. Gently pull the panel toward you; no tools are necessary, but a flashlight helps with identifying tiny components.
Tips for Quick Identification
Each module has a molded schematic on its inside cover, showing the amperage and slot assignment. Note the symbols for headlights, horn, and ignition circuits to reduce guesswork during inspections.
If access under the dash seems tight, tilt the steering wheel down fully. This adjustment improves visibility and hand clearance for swapping any blown components safely without straining your fingers.
Regular checks can prevent sudden electrical failures. Keep a small reference card showing panel locations, especially for the one near the engine bay and the secondary cluster under the dash, to speed up troubleshooting.
