Check the power distribution panels first when any electrical system stops working, as most faults trace back to a blown link or failed relay. Use the panel cover labeling and match each slot to its assigned circuit before removing anything.
This vehicle uses two main electrical centers: one inside the cabin and another under the hood. The interior unit typically controls lighting, dashboard functions, and smaller circuits, while the engine compartment module handles higher loads such as cooling fans, ignition supply, and charging systems. Each slot has a specific amperage rating that must not be exceeded.
For accurate diagnostics, inspect both panels instead of focusing on one location. Systems like the fuel pump or climate control may rely on components split between these areas, which can lead to missed faults if only one section is checked.
Signs of failure include darkened plastic, loose terminals, or intermittent operation of connected devices. Replace damaged elements with identical ratings and ensure tight contact during installation to prevent repeated issues.
Keeping a printed circuit layout in the glove compartment helps identify slots quickly during roadside checks and reduces time spent tracing wiring manually.

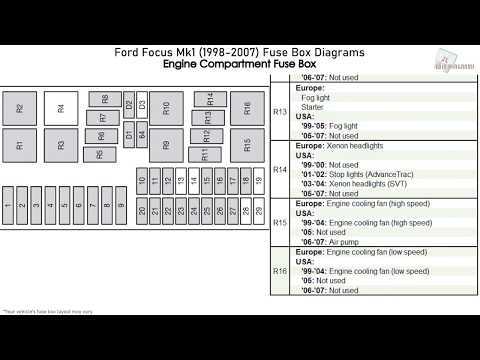

2005 Ford Focus Fuse Box Diagram With Relay Positions and Circuit Details
Match each numbered slot with its circuit before pulling any component, using the panel cover legend or service manual chart. This prevents disabling unrelated systems such as lighting or engine controls.

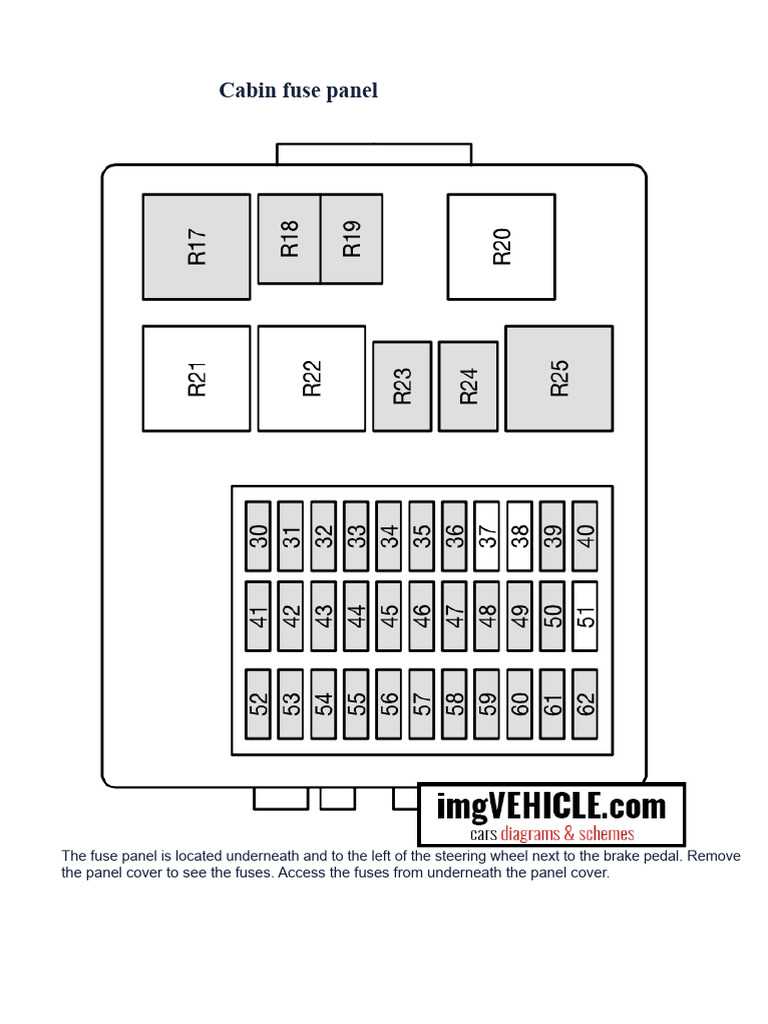

The cabin electrical center typically contains low to mid-range amperage links, usually from 5A to 30A. These protect circuits like interior lights, radio, power windows, and instrument cluster. Always verify the printed rating on each slot and replace only with the same value.
Under the hood, the power distribution unit handles higher loads, including cooling fans, ignition supply, and ABS. These positions often use larger cartridge-style elements rated 40A and above, designed for continuous current flow under load.
Relays are positioned рядом with the protective elements and control switching for systems such as the starter motor, fuel pump, and air conditioning compressor. Each relay has a specific slot and can be identified by a code or symbol on the cover.
To test a relay, swap it with another identical unit from a non-critical circuit, such as the horn or auxiliary system. If the problem shifts, the relay is faulty and should be replaced.
Trace circuits by following wiring from the affected component back to its assigned slot and relay. For example, a non-working radiator fan may involve both a high-current link and a switching unit in the engine compartment.
Check for heat damage, corrosion, or loose контакts, as these can interrupt current flow without visibly damaging the protective element. Clean terminals and ensure each piece sits firmly in place.
Keep a printed circuit layout inside the vehicle for quick reference, especially during roadside checks, to reduce time spent locating the correct slot or relay.
Exact locations of interior and engine bay fuse panels and access steps
Open the passenger-side lower dash cover to reach the interior power panel, as it is mounted behind a removable trim section near the glove compartment. Pull the cover outward to release clips and expose the protected circuits.
Use gentle pressure when removing trim pieces, since plastic retainers can break if forced. Once open, locate the slot layout printed on the inner side of the cover for quick identification.
Interior panel access details
The cabin unit is positioned slightly above footwell level, making it easier to inspect from a seated position. A small flashlight helps identify slot numbers and labels, especially in low-light conditions. Keep the ignition off during any inspection to avoid accidental short circuits.
Engine compartment panel location
The under-hood power distribution unit sits next to the battery on the driver side. Release the locking tabs on the protective lid and lift it straight up. Inside, you will find high-current links and switching components controlling major systems such as cooling and charging.
Check for obstructions like intake ducts or wiring harnesses, which may limit direct access. Adjust your angle rather than forcing components aside, as this reduces the risk of damaging connectors.
Disconnect the negative battery terminal before removing any element, then secure all covers tightly after inspection to protect against moisture and debris entering the electrical panels.
