Check the cabin panel first: it sits under the dashboard on the driver side and holds low-amperage links for interior electronics such as radio, dashboard lights, and power windows. Match the amperage rating exactly before swapping any burned element, since installing a higher value can damage wiring.
Under the hood, locate the main power box near the battery. This unit contains high-current protection links and relays responsible for starter operation, cooling fan, fuel pump, and trailer circuits. Each slot is labeled with a number that corresponds to a specific circuit, making it possible to trace faults like non-working headlights or ignition issues without dismantling large sections of the vehicle.
If a component fails, identify its circuit by function rather than guessing. For example, a dead cigarette lighter usually points to a 20A slot in the interior panel, while a non-responsive fuel system often links to a relay in the engine bay box. Use a test light or multimeter to confirm power at both ends of the link before replacing parts, reducing unnecessary repairs.

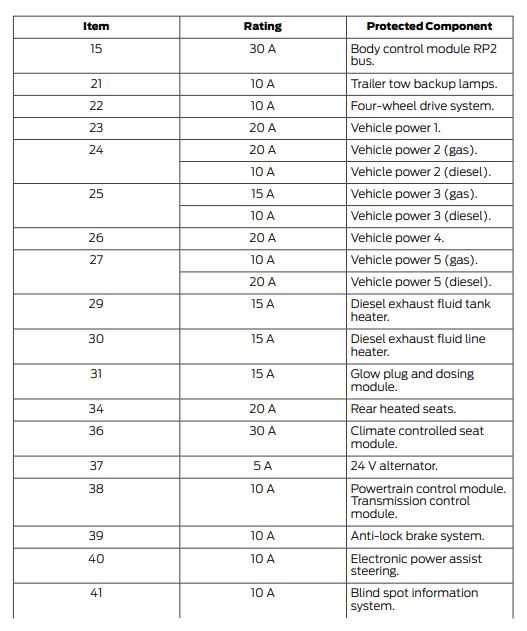

2005 Ford F250 Fuse Diagram and Fuse Box Details
Use the panel legend printed on the cover to match each slot number with its circuit before pulling any protective link. The interior block under the driver-side dash contains low to mid amperage positions, typically ranging from 5A to 30A, assigned to systems like power mirrors, HVAC controls, and instrument cluster lighting. Always verify the slot number and rating rather than relying on position alone, since layouts vary between trim levels.
The engine bay power distribution unit sits close to the battery and includes high-load links from 40A up to 120A along with multiple relays. These positions control starter motor engagement, ABS module, trailer brake feed, and cooling fan operation. Relays are usually grouped together and labeled for quick identification, allowing targeted checks when a system fails to activate.
For accurate troubleshooting, cross-reference the slot number with its function and test voltage on both sides using a multimeter. A working link should show equal voltage at input and output terminals; any drop indicates a break inside. Replace only with identical amperage ratings and inspect nearby wiring for heat damage if a slot repeatedly fails, as this points to a deeper electrical fault rather than a simple overload.

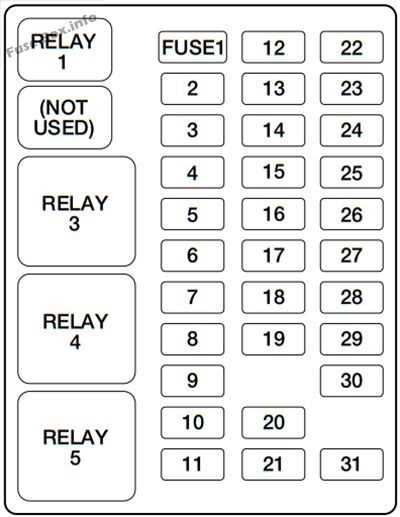

Interior fuse box diagram with exact fuse numbers and functions
Locate the cabin panel beneath the steering column and read the numbering printed along the rows; each slot corresponds to a specific electrical path. Do not remove parts blindly–identify the exact position by number before testing.
Common slot assignments inside the cabin block include:
- #1 (15A) – audio system and clock memory
- #5 (10A) – instrument cluster and warning indicators
- #9 (20A) – cigarette lighter and power outlet
- #13 (15A) – turn signals and hazard lights
- #17 (30A) – power windows
Higher load circuits are grouped toward the outer edges of the panel, while low-amperage positions sit closer to the center. This layout helps separate sensitive electronics from motors, reducing the chance of interference or overheating.
When diagnosing a failure, follow this sequence:
- Identify the affected component
- Match it to its numbered slot
- Check continuity with a multimeter
- Inspect contacts for corrosion or looseness
If a replacement burns out again within a short time, inspect the connected device and wiring harness. Repeated failure signals a short circuit or overload, not a defective panel component.
