Locate the power distribution panel under the hood on the driver’s side and verify each circuit using the factory layout printed on the cover; if it’s missing, rely on a verified scheme that matches engine type and trim level to prevent wiring mistakes. Circuits for headlights, trailer connectors, and ignition control are separated across multiple rows, so cross-check amperage ratings before replacing any protective element.
The interior panel, positioned beneath the dashboard, contains low-amperage links for cabin electronics such as radio, climate control, and instrument cluster. Pay attention to slot numbering: positions are arranged in a grid where numbering may differ between gasoline and diesel variants, which often leads to confusion during diagnostics.
For troubleshooting, use a multimeter rather than visual inspection alone. Blown links can appear intact while failing under load. Measure continuity and confirm voltage on both terminals with ignition states switched between OFF and RUN. This method quickly identifies faults tied to relays controlling fuel pump, starter circuit, and auxiliary systems.
When replacing components, match the exact amperage and type. Installing a higher-rated element may damage wiring harnesses, especially in circuits connected to towing equipment or aftermarket accessories. Keep a printed reference of the panel layout in the glove compartment to avoid delays during roadside repairs.
2001 Ford Super Duty Fuse Box Diagram: Practical Identification and Troubleshooting Guide
Locate the power distribution panels under the dashboard and in the engine compartment, then match each circuit slot by amperage rating and label code stamped on the cover rather than relying on memory. Cabin panel typically controls lighting, radio, and interior electronics, while the engine-bay unit handles high-load systems like starter relay, cooling fans, and ABS. If a circuit stops working, pull the corresponding blade-type link and inspect the metal strip; a break or dark spot confirms failure. Replace only with the same amp rating (e.g., 15A, 20A), since a higher value risks wiring damage. Use a multimeter to verify voltage at both terminals; zero reading on one side indicates an open link, while no voltage on both sides suggests upstream supply issues such as a faulty relay or ignition switch.
For persistent faults, trace the circuit by following the panel legend: identify the component, then check intermediate connectors and grounding points, especially near the kick panel and firewall where corrosion is common.
Quick checks
test relays by swapping with an identical unit from a non-critical system; inspect for heat deformation in the panel sockets; confirm battery voltage under load to rule out weak supply.
Typical problem areas
trailer wiring circuits often fail due to moisture ingress, blower motor lines may show intermittent contact from worn connectors, and power window circuits can trip due to regulator strain. Label each slot after verification to avoid confusion during future service, and keep a printed legend in the glove compartment for rapid reference.
How to Locate and Distinguish Interior vs Engine Compartment Fuse Boxes in a 2001 Ford Super Duty
Check beneath the driver-side dashboard first: the interior electrical panel is mounted behind a removable plastic cover just left of the steering column, slightly above the brake pedal. Access requires no tools–pull the cover straight outward. A small molded grip or notch helps identify the panel location quickly without disassembling trim pieces.

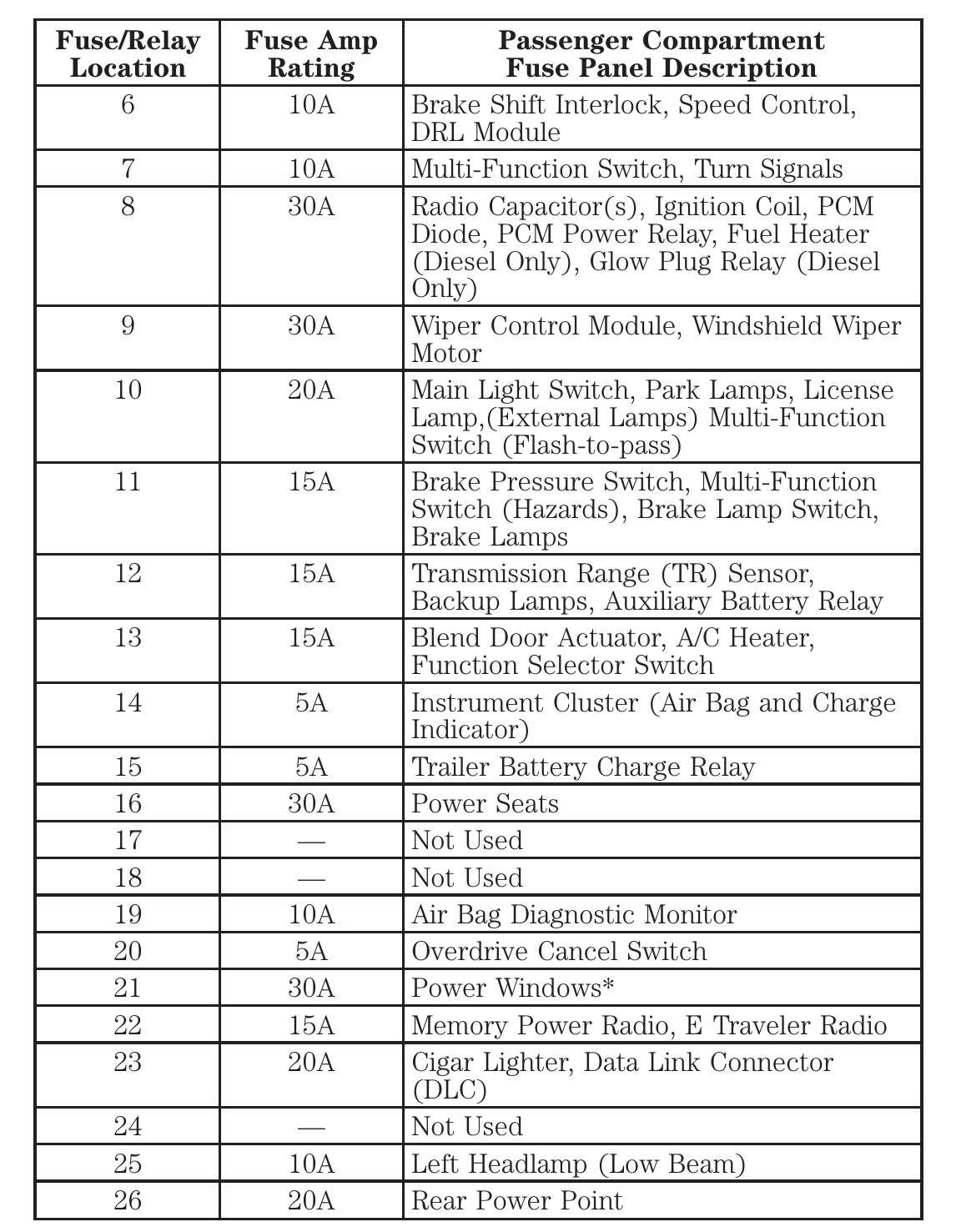

The cabin-mounted unit contains low-amperage circuits tied to lighting, radio, climate controls, and onboard electronics. Labels are printed on the inside of the cover; if missing, look for a compact grid layout with tightly packed mini blade links. Color coding typically follows standard amperage conventions, making identification faster during inspection.
Engine Bay Power Distribution Center

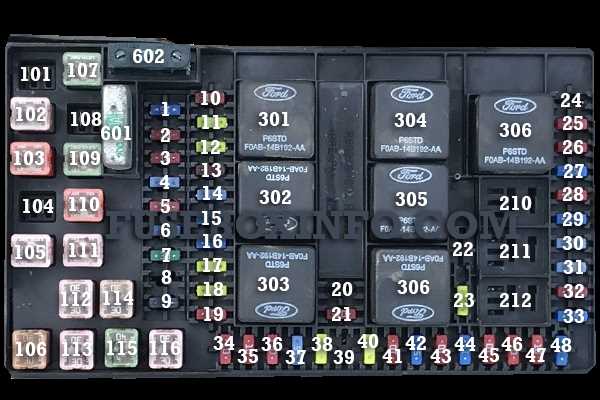

Open the hood and move to the driver-side front corner near the battery. The engine compartment electrical center sits inside a black rectangular housing with a snap-on lid. Release the clips on both sides to lift it. Its placement close to the battery indicates it handles higher current loads and main distribution.
This under-hood unit contains larger cartridge-style links and relays responsible for systems like starter motor, alternator, cooling fan, and ABS. Compared to the interior panel, components here are physically larger and spaced farther apart, reducing heat buildup and allowing easier replacement.
Visual distinction: the cabin panel is flush-mounted and blends with interior trim, while the engine bay unit stands alone as a sealed module with a weather-resistant cover. The latter often includes a diagram molded into the lid showing relay positions rather than small printed text.
Access difference: interior access requires reaching into a confined footwell area, often with limited lighting, whereas the engine compartment center is fully exposed once the hood is open, allowing direct overhead visibility.
Quick Identification Tips
If the issue involves accessories like power windows or dashboard lights, inspect the interior panel. For starting problems, charging faults, or cooling system failures, go straight to the engine bay distribution center. This separation reflects load demand and wiring length considerations.
Use a flashlight to verify labeling and check for spare links: the cabin unit often includes a small storage slot for replacements, while the engine compartment housing may have dedicated relay placeholders. These physical cues help confirm which unit you are examining without relying on printed guides.
