Open the engine compartment and locate the main power distribution center near the battery; this unit contains high-current links for starter motor, cooling fans, and ABS. Release the cover latches and lift it carefully to access internal components.
Use the printed layout on the inside of the cover to match each numbered slot with its circuit. Verify amperage ratings such as 20A, 30A, or 50A before removing any element to prevent installing an incorrect replacement.
Test each link with a multimeter by checking voltage on both контакты; a break inside the metal strip may not be visible but will interrupt current flow. Do not rely only on visual inspection when diagnosing electrical faults.
Replace damaged components with identical ratings and ensure tight seating in the slot. Keep spare units in common sizes nearby to handle sudden failures affecting ignition, lighting, or charging systems.
Under Hood Fuse Box Location in 2001 Ford F150 with Access Steps
Open the engine compartment and locate the main power distribution unit on the driver side near the battery; this plastic housing contains high-current links and relays for critical systems. Release the side clips by pressing them inward, then lift the cover straight up to avoid damaging the hinges.
Switch off ignition and disconnect the negative battery terminal before accessing internal components, especially when working with high-amperage circuits like starter or cooling fans. Use both hands to remove the cover evenly, check the printed layout inside for slot identification, and ensure the seal is intact before reinstalling to protect internal contacts from moisture and debris.

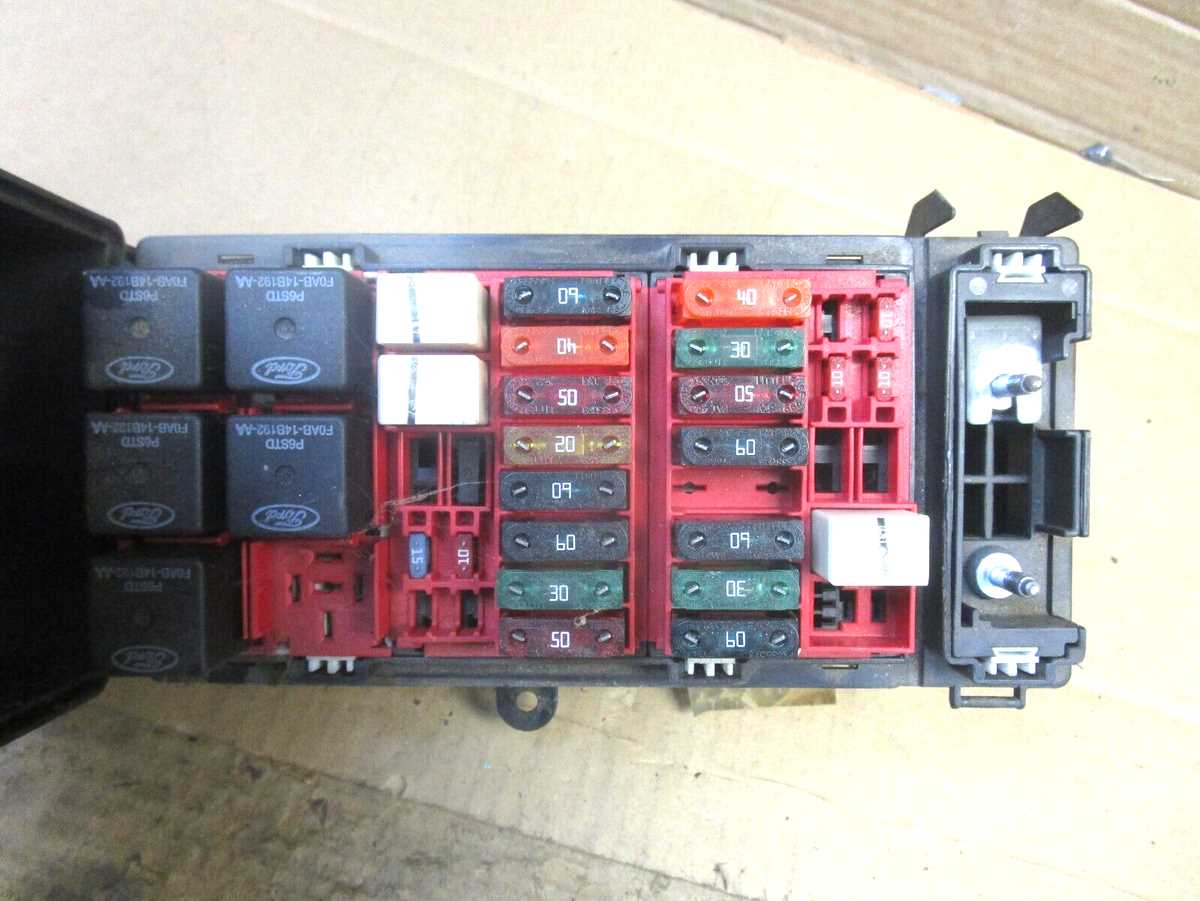

2001 Ford F150 Under Hood Fuse Diagram with Slot Functions and Ratings
Use the cover chart inside the power distribution housing to match each numbered position with its circuit; high-amperage slots typically include 40A for cooling fans, 50A for ABS pump, and 30A for ignition or blower motor systems.
Common slot functions
- Cooling fan motor and relay circuits
- Anti-lock braking system power supply
- Starter relay and ignition feed
- Headlight and exterior lighting circuits
- Charging system links connected to alternator
Layout places larger amperage components along the edges for heat dissipation, while relays are grouped in the center for easier access; always verify both slot number and rating before removal, since identical ratings may serve different systems, and incorrect placement can lead to electrical faults or system failure.
Common Fuse and Relay Issues Under Hood in 2001 Ford F150 and Fix Steps
Check high-current links with a multimeter before removal; voltage present on only one contact indicates internal breakage, while no voltage on both sides points to upstream supply issues such as battery or main cable faults.
Frequent failures affect cooling fan circuits, starter relay, and ABS power supply due to heat exposure and load spikes. Signs include melted plastic housing, darkened metal strips, or clicking relays without system response. Corrosion near the battery area can also interrupt current flow, leading to intermittent starting or overheating problems.
Remove the damaged component using a puller, install a replacement with identical amperage or relay type, then test the related system; repeated failure indicates short circuit, worn motor, or damaged wiring insulation that must be repaired before further replacement.
