Locate the power distribution center under the hood before checking any electrical issue. This pickup uses multiple circuit protection blocks, with the main unit positioned near the battery and additional sections inside the cabin. Opening the cover reveals numbered slots aligned with a reference chart that identifies each protected circuit.
Each protective element is rated by amperage, typically from 5A to 50A depending on the load. Color coding helps quick identification, while the metal strip inside shows visible damage when blown. Always replace with the same rating to prevent overheating or damage to wiring and connected components.
The interior section, usually located beneath the dashboard on the driver side, handles lower load systems such as lighting, radio, and control switches. Cross-referencing slot numbers with the printed chart allows accurate fault tracing, reducing the need for unnecessary part removal during diagnostics.
2001 Ford F150 Fuse Box Diagram Manual

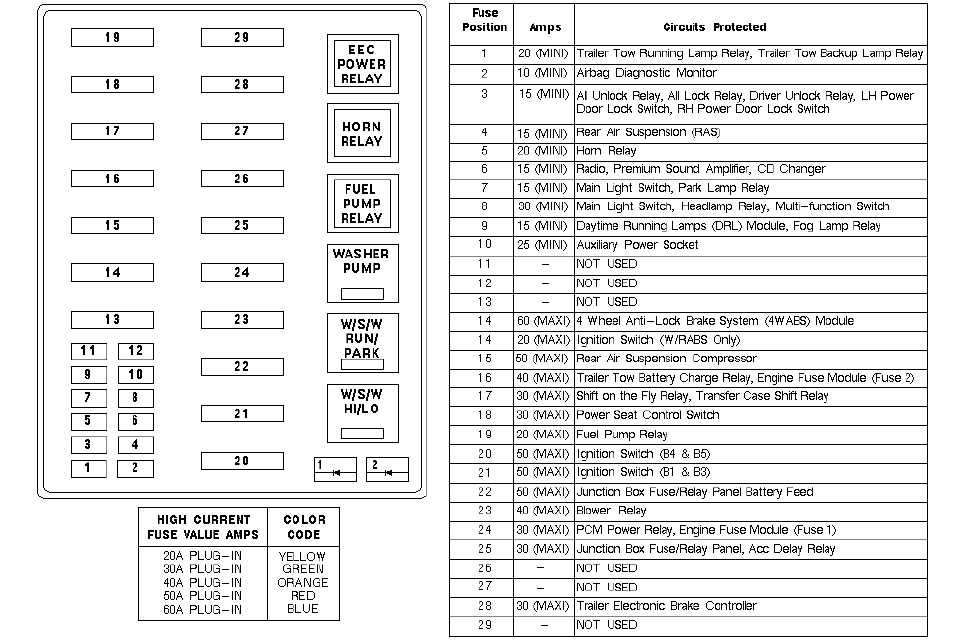

Use the printed circuit chart inside the power distribution cover to identify the correct slot before removing any protective link. Each position is labeled with a number that corresponds to a specific system such as fuel pump, headlights, or ignition components.
The layout is divided into sections based on load type, allowing quick navigation across different systems. High-current slots are grouped together, while lower-rated positions are arranged separately for interior electronics.
Reading the Circuit Assignment Chart
Follow the numbering sequence to match each slot with its assigned function:
- Low numbers often correspond to lighting and dashboard systems
- Mid-range positions handle accessories like radio and power outlets
- Higher numbers are tied to engine and heavy-load components
Always verify the label before pulling any component to avoid disconnecting unrelated systems.
Inspection and Replacement Process
Remove the protective link using the provided puller tool and inspect the internal strip.
- Check for visible breaks or burn marks
- Test continuity with a multimeter
- Confirm amperage rating printed on the top
- Install a replacement with identical rating
Never install a higher-rated element, as this increases the risk of wiring damage and overheating.
Color coding helps identify ratings quickly, with common values including 10A, 15A, 20A, and 30A. Matching both color and number reduces installation errors.
Systematic use of the reference chart and careful inspection of each slot allows accurate fault detection without removing unnecessary components.
Exact Fuse Box Locations in Engine Bay Cabin and Power Distribution Center
Open the hood and locate the main power distribution center next to the battery on the driver side. This large housing contains high-current protection elements and relays responsible for engine systems, cooling fans, and charging circuits.
Release the plastic cover by unclipping the side latches. Inside, components are arranged in a structured grid with clear numbering that matches a reference chart printed on the cover underside.
Cabin Electrical Panel Position

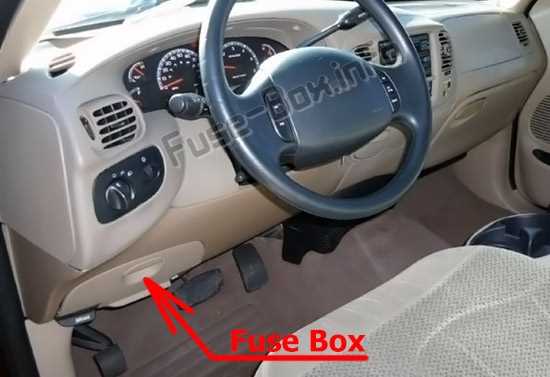

Check beneath the dashboard on the driver side for the interior circuit block. This area is often accessed by removing a trim panel or cover near the steering column. It handles lower load systems such as interior lights, radio, and control switches.
The layout here is more compact, with tightly grouped slots and smaller amperage ratings. Use a flashlight to read slot numbers clearly, as visibility can be limited in this area.
Power Distribution Center Details
Inspect the main under-hood unit for larger cartridge-style elements. These are designed for higher current flow and protect major systems like ABS and starter circuits.
Ensure the area is clean and dry before opening the housing. Dirt or moisture can affect contact points and lead to electrical faults.
Accessing both the engine compartment unit and the interior section provides full coverage of the vehicle’s electrical network, allowing accurate identification of faults tied to specific circuits.
