Use the power distribution panel near the engine to quickly locate relays and protective links tied to ignition, fuel delivery, and cooling systems. Check the inner cover label first, as it typically lists each circuit with amperage ratings, allowing fast identification of the correct slot without unnecessary removal of components.
This vehicle places the main electrical hub on the driver-side area of the engine bay, enclosed in a black plastic casing with locking tabs. Release the clips carefully to avoid cracking aged plastic, then inspect the arrangement: larger cartridge-style links handle high-current loads such as ABS and radiator fan motors, while smaller blade-type elements protect lighting, audio, and control modules.
Common positions to note: the starter relay is usually aligned along the outer row, while the fuel pump relay sits closer to the center cluster. Cooling fan circuits often occupy high-amperage slots, distinguishable by wider connectors. A quick visual comparison of metal strips inside each element helps detect breaks without tools, though a multimeter gives more reliable confirmation.
Corrosion or heat marks indicate underlying issues such as poor grounding or overload. Clean contacts with electrical cleaner and ensure tight seating after replacement. Always match amperage precisely; installing a higher-rated component risks wiring damage, while a lower value may lead to repeated interruptions during normal operation.
Engine Compartment Power Distribution Layout for Full-Size SUV
Locate the power relay center near the battery on the driver-side inner fender; remove the plastic cover by releasing two side clips to access the labeled grid that maps circuits to slots.
Inside the lid, each cavity is identified by alphanumeric markers (for example, positions like F1–F24 or R1–R8). High-amperage links (30A–50A) protect systems such as the cooling fan, ABS pump, and trailer tow feed, while medium ratings (15A–25A) serve fuel pump, ignition coils, and PCM supply. Verify amperage by matching color codes: green (30A), pink (30A J-case), yellow (20A), blue (15A).
Use a test light or multimeter across the metal tabs on top of each link to confirm continuity without removal. A blown element typically shows an open circuit and a visibly broken strip; replace only with the same rating to avoid wiring damage.
Relay Identification and Function
Square plug-in switches control high-load components: one unit engages the starter circuit, another drives the A/C clutch, and a separate unit triggers the radiator fan. Swap a suspect relay with an identical neighboring unit (same part number stamped on top) to quickly isolate a fault without tools.
For no-start conditions, inspect the PCM power relay and fuel delivery relay first; both receive ignition signal from the key switch and supply voltage to critical modules. Corrosion on terminals is common–clean pins with electrical contact cleaner and ensure firm seating.
Service Tips and Circuit Tracing
Trace circuits using the molded legend inside the cover: lines connect each cavity to its system. Follow the path to identify shared feeds–multiple components may rely on a single high-current link, so a single failure can disable several features at once.
After any replacement, cycle the ignition and monitor for repeated failure; recurring burnout indicates a short to ground or overloaded accessory. Inspect harnesses near the radiator support and battery tray where insulation wear frequently occurs.

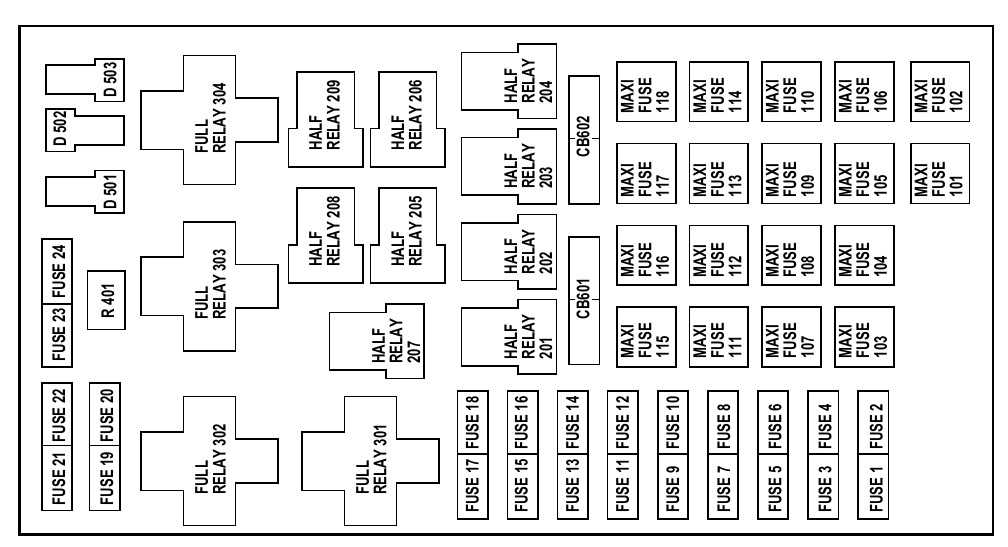

Exact Layout of the Engine Bay Power Distribution Panel with Slot Identification
Locate the power distribution panel near the battery on the driver-side fender; the cover’s inner side contains a slot map, but rely on fixed positioning: the top row (closest to the windshield) contains high-amperage cartridge links labeled F1–F6, while the front row (closest to the radiator) holds mini blade slots F7–F24. The leftmost corner position in the rear row is assigned to the main alternator link (typically 175A), followed by the ABS pump supply and primary ignition feed. Always verify amperage stamping directly on each element before replacement.
Row and Column Structure with Slot Roles
The panel is organized in a grid of three horizontal rows. Rear row: large cartridge links for charging system, anti-lock braking module, and central power feed. Middle row: mixed relays and medium-current protection points; here you will find the PCM relay, fuel pump relay, and blower motor relay aligned from left to right. Front row: smaller blade-type positions controlling lighting circuits, trailer connector feed, horn, and auxiliary outlets. Relays are distinguishable by their square shape and slightly raised height compared to flat protection elements.
Precise Slot Identification and Access Tips
Slot F7 (front row, far left) handles trailer tow lighting; F8 and F9 follow for left and right headlamp circuits. F10 is assigned to the horn circuit, positioned just right of the lighting group. In the center of the middle row sits the fuel pump relay, flanked by the PCM relay on its left and the A/C clutch relay on its right. The far-right rear slot is reserved for the secondary battery feed link. Use a puller tool stored in the panel cover to extract elements without bending contacts, and inspect terminals for heat discoloration before reinstalling.
For accurate servicing, align the cover orientation with the latch facing forward; misalignment leads to incorrect slot reading. Each cavity has a molded number next to it–clean the surface with a dry brush to reveal markings. Replace components only with identical amperage and type; mixing cartridge and blade formats damages the panel. After any change, cycle ignition and confirm operation of affected systems such as lighting, pump priming, and HVAC response.
