Locate the interior electrical panel beneath the steering column area and verify each circuit position using the printed label before removing any component. Match the amperage rating exactly to prevent damage to wiring, switches, and connected systems such as lighting, radio, or wipers.
The panel contains multiple rows of blade-style protective elements, each assigned to a specific function. Lower ratings like 5A or 10A usually serve control modules and interior electronics, while higher values such as 20A or 30A support motors and power-driven components. Always cross-check slot numbers with the reference chart on the cover.
Use a multimeter or test light to confirm continuity instead of relying only on visual inspection. A metal strip may appear intact but fail under load. Inspect terminals for oxidation or looseness, as poor contact can interrupt current flow and cause intermittent electrical faults.

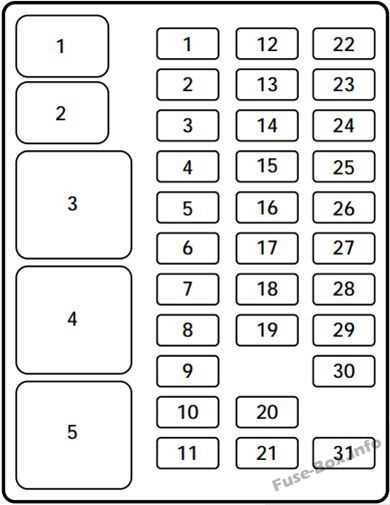

2000 Ford F350 Under Dash Fuse Box Diagram and Usage Guide
Check the panel layout label attached to the cover and align each numbered slot with its assigned circuit before removing any element. Confirm amperage values printed on top to avoid overloading wiring connected to lighting, HVAC controls, or auxiliary systems.
The interior electrical panel is organized in rows where each position corresponds to a specific function. Lower ratings such as 5A or 10A handle sensors and control units, while 20A–30A positions support motors, power outlets, and other high-load components.
Remove each protective insert using a puller or insulated pliers and inspect the internal metal strip. A break indicates failure, while discoloration points to heat buildup caused by loose контакты or worn terminals.
Reinstall only matching replacements with identical ratings and push firmly until seated. Loose installation can interrupt current flow and lead to intermittent faults in connected systems.
If the same circuit fails repeatedly, inspect wiring insulation and connected devices rather than replacing the insert again. Persistent faults often indicate short circuits or failing components drawing excessive current.
Exact under dash fuse box location and panel access steps in 2000 Ford F350
Open the driver door and look beneath the steering column area near the left kick panel; the interior electrical panel is mounted against the lower firewall and partially hidden by a plastic cover. Use a flashlight to locate the rectangular housing positioned above the footwell.
Remove the protective cover by pulling it outward or releasing retaining clips. Older trim may feel stiff, so apply steady pressure rather than sudden force to avoid cracking the panel.
- Slide driver seat fully back
- Position head below steering wheel
- Locate plastic cover near left side
- Release clips or pull cover free
Once the cover is removed, the internal layout and circuit labeling become visible either on the back of the cover or directly on the mounting frame. Keep the cover nearby for reference during inspection.
Access space is limited, so use angled tools or a small puller when handling components. Avoid pulling wiring harnesses while reaching into the panel, as connectors may loosen or disconnect.
- Turn ignition off
- Disconnect negative battery terminal if needed
- Remove trim cover carefully
- Identify required slot using label
- Proceed with inspection or replacement
Reinstall the cover securely after work is complete to protect the panel from dust and accidental contact with wiring or metal objects.
