Check the power distribution unit near the battery first: it contains the primary circuit protection elements and relays controlling ignition, lighting, and charging systems. The cover usually has a molded guide showing positions; if it’s missing or unreadable, identify slots by wire color and gauge. Thick red leads typically correspond to high-amperage links for starter and alternator circuits, while smaller colored wires feed auxiliary systems.
Locate the relays along the outer edge of the enclosure. Square modules with identical shapes can be swapped temporarily for testing: for example, exchange the relay controlling the cooling fan with a matching one from the horn circuit to confirm failure. Always note the original position before swapping. Terminals marked 30 and 87 indicate power flow, while 85 and 86 control the switching coil.
Use amperage ratings stamped on each protective element to verify correctness. Values like 20A, 30A, or 50A correspond to specific subsystems: headlights, fuel delivery, or ABS pump. Installing a higher rating risks wire overheating; a lower one may cause repeated interruptions. Corrosion on контакты can lead to intermittent faults–clean contacts with electrical cleaner and ensure tight seating.
Trace circuits using a multimeter rather than guessing. With ignition off, check continuity across each element; resistance close to zero indicates a good link. When diagnosing power loss, measure voltage at both input and output sides–difference means the element is blown or poorly seated. Keep a printed layout or draw your own mapping after inspection to simplify future troubleshooting.

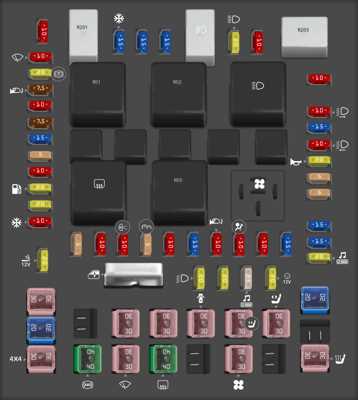

1998 Ford F150 Fuse Box Diagram Under Hood: Practical Guide
Check the power distribution unit near the battery first: lift the plastic cover and compare each relay and circuit protector with the legend printed inside the lid, as this label often contains the most accurate layout for your specific trim.
The compartment includes high-amperage protection elements responsible for starter relay, alternator output, and cooling fan circuits; if the engine fails to crank or charging stops, inspect these positions before moving to interior panels.
Typical layout in this engine-bay module includes:
- Main power relay for ignition system
- Starter solenoid relay
- Cooling fan control relay
- ABS pump motor protection
- Headlamp power supply links
- Air conditioning clutch relay
Use a test light or multimeter rather than visual inspection alone; hairline breaks in high-current links are often invisible but still interrupt continuity, especially in older trucks exposed to heat cycles.
When replacing any burned component, match amperage exactly and avoid temporary fixes like bridging terminals, as this risks damaging wiring harnesses or control modules connected to that circuit.
Common fault patterns tied to this external power unit include:
- No crank with working interior electronics → likely starter relay or main link
- Battery not charging → alternator feed protection failure
- Cooling fan inactive → relay or high-current link degradation
- No headlights but functional dashboard → lighting circuit protection issue
Keep spare relays of identical type in the glove compartment and label the cover manually if the factory print has faded; clear markings reduce diagnostic time during roadside repairs.
How to Locate and Identify the Engine Bay Electrical Panel in a Pickup from the Late 90s
Open the front compartment and look along the passenger-side inner fender near the battery; the rectangular plastic power distribution case is mounted there with a snap-on cover that usually has molded labeling on top.
The housing is typically black and secured by two side latches; press them inward and lift the lid straight up without prying, as the plastic tabs can crack with angled force.
Check the cover’s underside for a printed layout that maps each circuit protector and relay; if the print is faded, clean the surface with a dry cloth rather than liquid, which can erase markings.

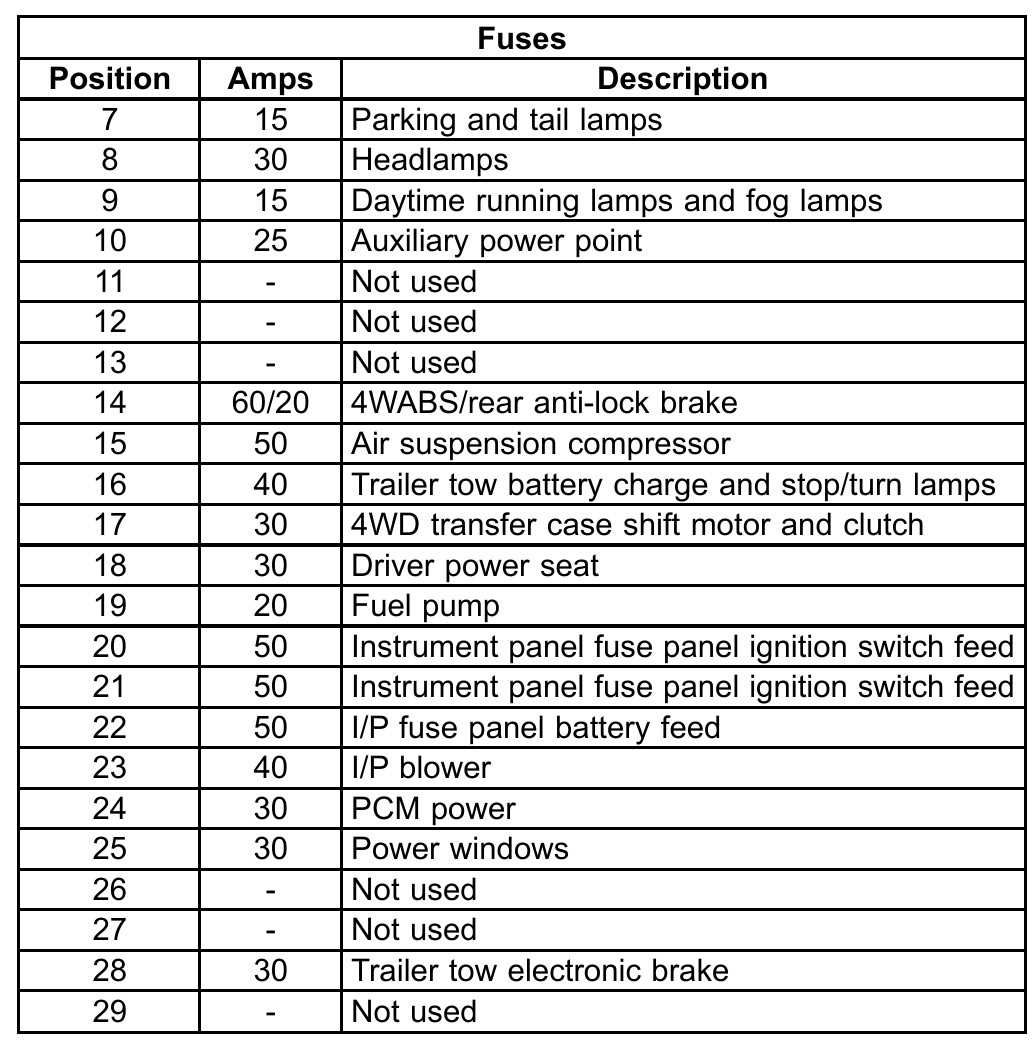

Inside, larger square relays sit alongside blade-style protectors arranged in rows; amperage ratings are stamped on top in small numbers such as 20, 30, or 50, making visual identification possible without tools.
Verify placement by wire routing: thick gauge leads from the alternator and starter feed into this unit, so follow those cables if the case is not immediately visible.
Some versions include a secondary smaller panel closer to the firewall; do not confuse it with the main distribution unit, as it contains fewer components and lacks high-current connections.
For clarity during inspection, tilt the lid slightly instead of removing it fully; many covers are tethered, preventing loss and keeping orientation aligned with the internal layout.
If dirt obscures component labels, use compressed air to clear debris before reading positions, avoiding contact with terminals to prevent accidental shorting.
