Check the main power distribution module under the hood immediately if multiple circuits are unresponsive. It sits on the driver side near the battery, secured with two clips and a removable cover. Ensure the ignition is off before handling terminals to prevent shorts or shocks.

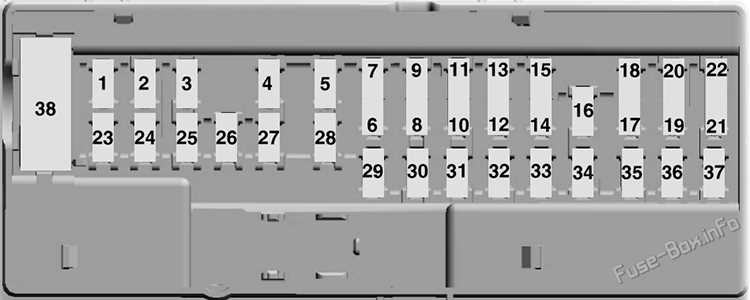

Inspect interior cabin modules located beneath the dashboard on the driver’s side. These panels control lighting, HVAC, and accessory circuits. Label connectors before removal to avoid miswiring during reinstallation.
Use a test light or multimeter to identify inactive circuits. Check for blown links or corroded terminals first, as they are common causes of power interruptions. Document readings for each terminal to track anomalies accurately.

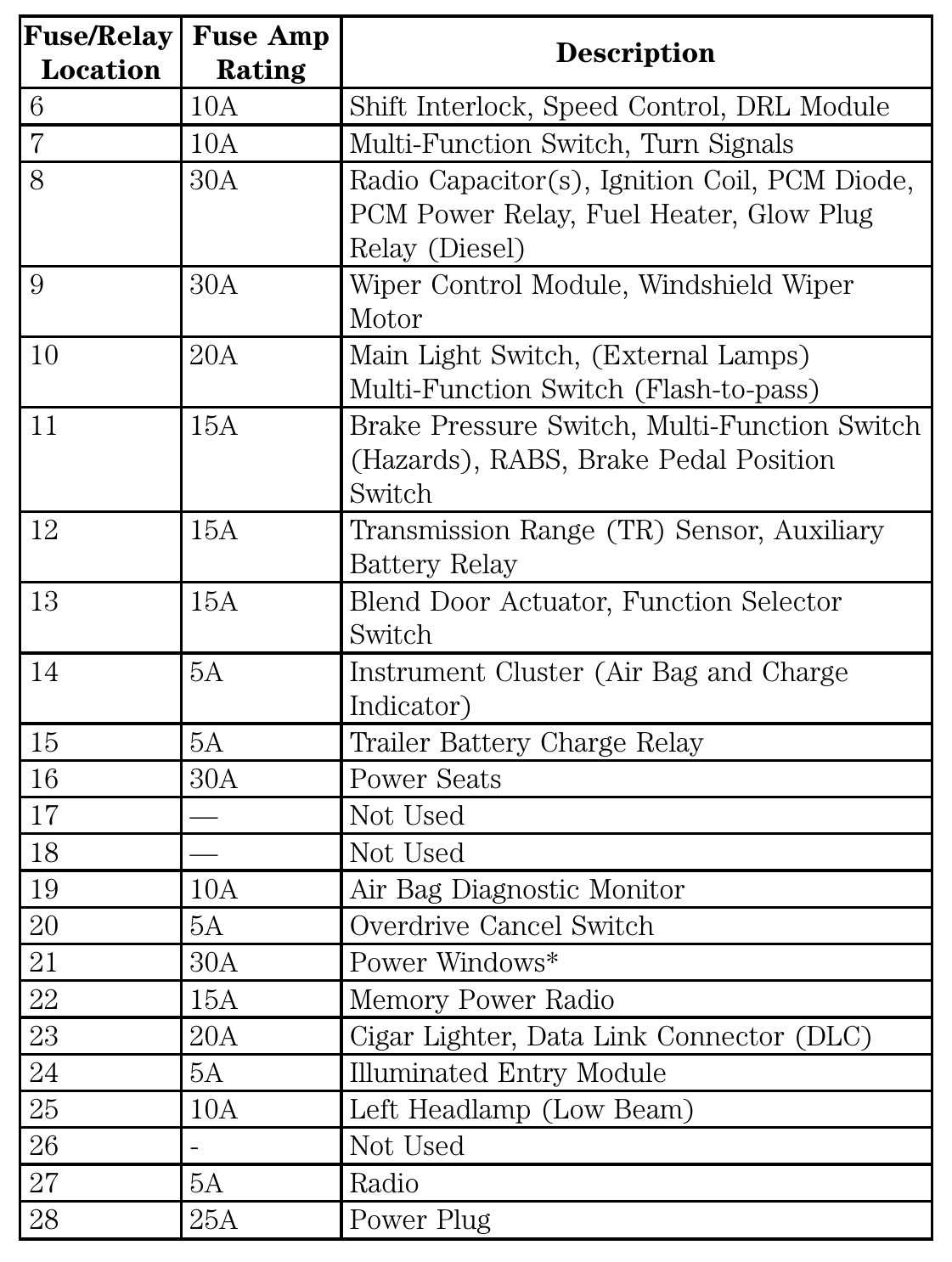

Follow the panel layout chart to match circuits with their specific relays and links. Prioritize checking high-current circuits such as ignition, starter, and ABS before minor accessories. Replace only faulty components to maintain overall system integrity.
1998 Econoline E350 Electrical Panel Layout and Access Guide
Locate the main power distribution module under the hood on the driver side near the battery. Remove the securing clips carefully and lift the cover to inspect relays and high-current links.
Identify interior cabin panels beneath the dashboard on the driver’s side. These panels handle circuits for lighting, HVAC, and auxiliary systems. Disconnect connectors in sequence to prevent wiring confusion during reassembly.
Check all terminal points using a multimeter to detect voltage drops or open circuits. Record measurements to compare readings across similar circuits for accuracy.
Prioritize critical circuits such as ignition, starter, and ABS relays first. Non-essential accessory circuits can be tested after confirming main system stability. Replace only defective relays or links to avoid unnecessary system interruptions.
Inspect grounding points near both the engine compartment and cabin. Corroded or loose grounds often cause intermittent power issues. Tighten and clean terminals before concluding diagnostics.
Use panel layout charts stored inside the cover to cross-reference each relay and link with its respective circuit. Mark circuits with labels when disconnecting multiple connectors simultaneously.
Perform functional tests after all components are reinstalled. Check each switch and accessory to ensure proper operation. Document any anomalies for follow-up inspections.
Maintain panel accessibility by keeping securing clips and covers in good condition. Routine inspection every 6–12 months prevents unexpected power interruptions and extends module lifespan.

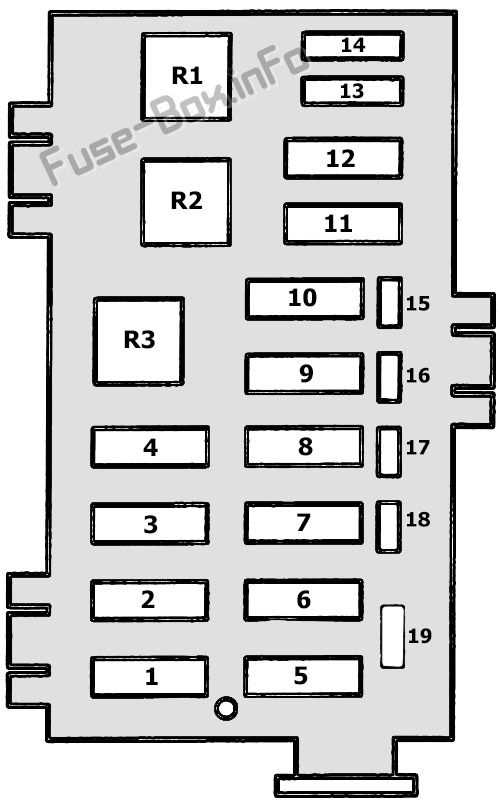

Locating the Engine Compartment Power Module
Access the engine compartment power module by opening the hood and locating the driver’s side near the battery and air intake assembly. Release the retaining clips to lift the cover without forcing it and avoid damage to the housing.
Identify all relays and high-current connectors inside the unit using the molded layout on the underside of the cover. Note the orientation of each plug before disconnecting to prevent misalignment during reinstallation.
Inspect mounting points and surrounding wiring for signs of corrosion, heat damage, or loose terminals. Clean contacts and tighten fasteners before performing any electrical tests to ensure reliable operation under load conditions.
