Check the panel cover label and match each slot number with its assigned circuit before removing any protective link, then confirm the amperage rating such as 10A, 15A, 20A, or 30A to avoid damage to wiring and control modules.
The interior panel located under the dashboard on the driver side handles systems like lighting, radio, power windows, and instrument cluster, while the engine compartment unit near the battery supports high load circuits including cooling fan, ABS, and ignition components.
Remove each element using a plastic puller and inspect the metal strip for breaks or burn marks; a damaged strip indicates failure. If the strip looks intact, test continuity with a multimeter to confirm whether current can pass through.
Repeated failures in the same slot often indicate short circuits, worn insulation, or faulty connected devices. Inspect wiring harnesses and connectors for heat damage or corrosion before installing a replacement with the same rating.
1996 Ford Taurus fuse diagram and circuit identification guide
Match each slot number on the panel with the printed legend before removal and verify the amperage marking such as 10A, 15A, 20A, or 30A to prevent wiring overload or control module damage.
The cabin panel under the driver side dashboard supplies low and medium load systems, while the engine compartment unit near the battery supports high current circuits like cooling fan and ABS. Identify the correct section before testing any component.
Typical circuit assignments include:
- Interior lighting and dashboard cluster
- Power windows and door locks
- Radio and accessory outlets
- Engine control and ignition supply
- Cooling fan and brake system electronics
Each slot corresponds to a numbered position that links to a specific circuit; use this numbering to trace faults quickly instead of removing multiple elements at random.
Remove the component with a puller tool and inspect the internal metal strip; a visible break or burn mark confirms failure, while an intact strip requires testing with a multimeter set to continuity mode.
If power is missing on both sides of a slot, check upstream wiring and relay connections rather than replacing the protective element, as the issue may originate from a supply interruption.
Repeated failure in the same position points to deeper faults:
- Shorted wiring harness sections
- Damaged insulation contacting metal parts
- Faulty connected devices drawing excess current
- Improper aftermarket equipment installation
After replacement, ensure a tight fit in the terminals and clean any corrosion from contacts to maintain stable current flow and prevent intermittent electrical issues.

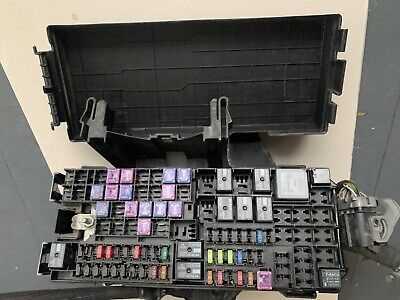

Fuse panel locations in cabin and engine bay with access steps
Locate the interior panel under the driver side dashboard near the kick panel and remove the plastic cover by pulling it outward from the notch to expose the circuits.
Turn the ignition off and disconnect the negative battery terminal before accessing any electrical components to prevent short circuits or accidental contact with live terminals.
Cabin access details
The interior unit is mounted low and slightly recessed, requiring a flashlight for clear visibility; use the puller tool stored inside the cover to remove each element without damaging surrounding slots or connectors.
Keep track of slot positions during removal, as incorrect placement can disable multiple systems such as lighting, radio, or power accessories.
Engine bay access steps
Open the hood and find the main power distribution unit near the battery; release the retaining clips and lift the cover straight up to reach high current circuits and relays.
Inspect the sealing edges of the cover and ensure it is properly secured after service to prevent moisture entry, which can lead to corrosion and unstable electrical contact.
After completing checks or replacements, reconnect the battery and verify operation of affected systems before closing all panels.
