Check the interior fuse panel under the dashboard on the driver side if electrical components like lights, radio, or wipers stop working. This pickup uses protective elements rated from 5A to 30A, each assigned to specific circuits such as ignition, lighting, and accessory systems.
The main panel is mounted beneath the steering column and covered by a removable plastic lid. Each slot is numbered and corresponds to a chart that identifies its function. Match the slot number with the circuit description before removing any component to avoid confusion during diagnostics.
A second panel is located in the engine compartment near the battery, handling higher current circuits such as cooling fan and charging system. These positions typically use larger amperage ratings and thicker wiring connections.
Use a multimeter to test continuity and voltage across each slot instead of relying only on visual inspection. This helps detect hidden faults and confirms that power is reaching the intended circuit after replacement.
1994 Ford Ranger XLT Fuse Box Diagram and Electrical Layout Guide

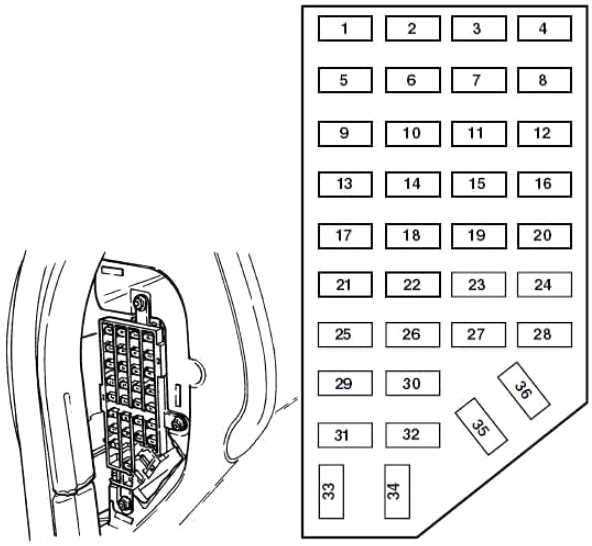

Check the panel layout and verify each slot before removal to avoid disconnecting the wrong circuit. The interior panel under the dashboard contains rows of numbered positions linked to systems like turn signals, radio, and interior lights, with ratings typically between 5A and 20A.
Use these steps to confirm circuit function:
- Locate the slot number on the panel frame
- Match it with the printed legend on the cover
- Trace the wire color connected to that position
- Confirm system response when the element is removed
Inspect terminals for heat marks or loose контакты and test voltage across both sides using a multimeter. If the same slot fails repeatedly, follow the wiring path toward components such as switches or motors to find short circuits or damaged insulation.
Exact fuse box locations in 1994 Ford Ranger XLT cabin and engine bay

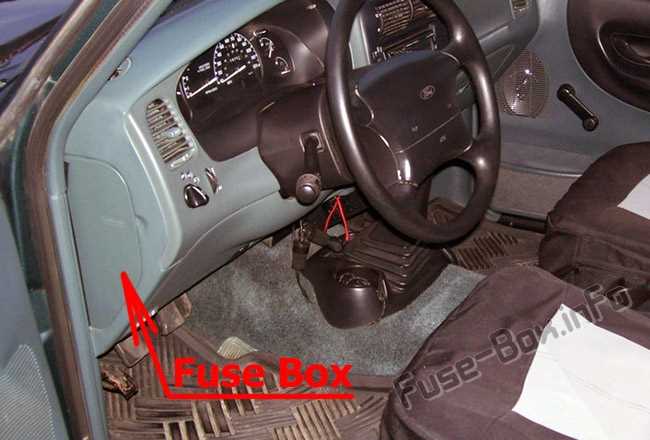

Access the interior panel by opening the driver-side door and looking beneath the dashboard near the kick panel, slightly to the left of the steering column where a rectangular cover is mounted.
This cabin-mounted unit sits above the footwell trim and is secured with clips; pull the cover outward to expose rows of blade-style elements arranged in a grid, each tied to lighting, signals, and dashboard systems.
For better visibility, tilt your head upward and use a flashlight since the placement is recessed and partially hidden by lower dash plastic.

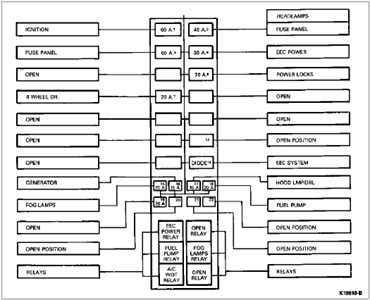

The engine compartment power distribution center is positioned on the driver side near the battery, enclosed in a black plastic housing with a removable lid that snaps into place.
Release the locking tabs on both sides of the under-hood casing to reveal larger amperage links responsible for high-load components such as cooling fans, ignition supply, and charging circuits.
Check the inner side of the cover where a printed legend identifies each slot, allowing quick matching between component and circuit path.
Keep the area clean from dirt and moisture buildup, since debris inside the enclosure can lead to poor контакты and intermittent power loss.
Use a multimeter directly at these points to confirm voltage presence, especially when diagnosing no-start conditions or non-working accessories tied to primary distribution lines.
