Check both the cabin and engine compartment electrical panels before replacing any damaged component, and confirm power flow using a multimeter rather than relying only on visual inspection.
The interior panel is mounted beneath the dashboard on the driver side, protected by a removable plastic cover. Each slot is assigned to systems such as lighting, radio, and power accessories. Use the same amperage rating when installing a replacement to prevent overheating or wiring damage.
The under-hood distribution unit handles high-current circuits including cooling fans, ignition, and main power supply. Inspect terminals for corrosion and loose contact, as these issues can interrupt current flow and cause intermittent electrical faults. Keep a labeled reference nearby to quickly identify each circuit during troubleshooting.
1994 Ford Explorer Fuse Box Diagram with Panel Locations and Circuit Details
Locate the interior electrical panel under the driver-side dashboard and verify each slot using the cover label before removing any component.
This cabin unit controls systems such as interior lighting, radio memory, turn signals, and dashboard indicators. Ratings usually range from 5A to 25A. Always match the original amperage to prevent overheating and possible wire damage.

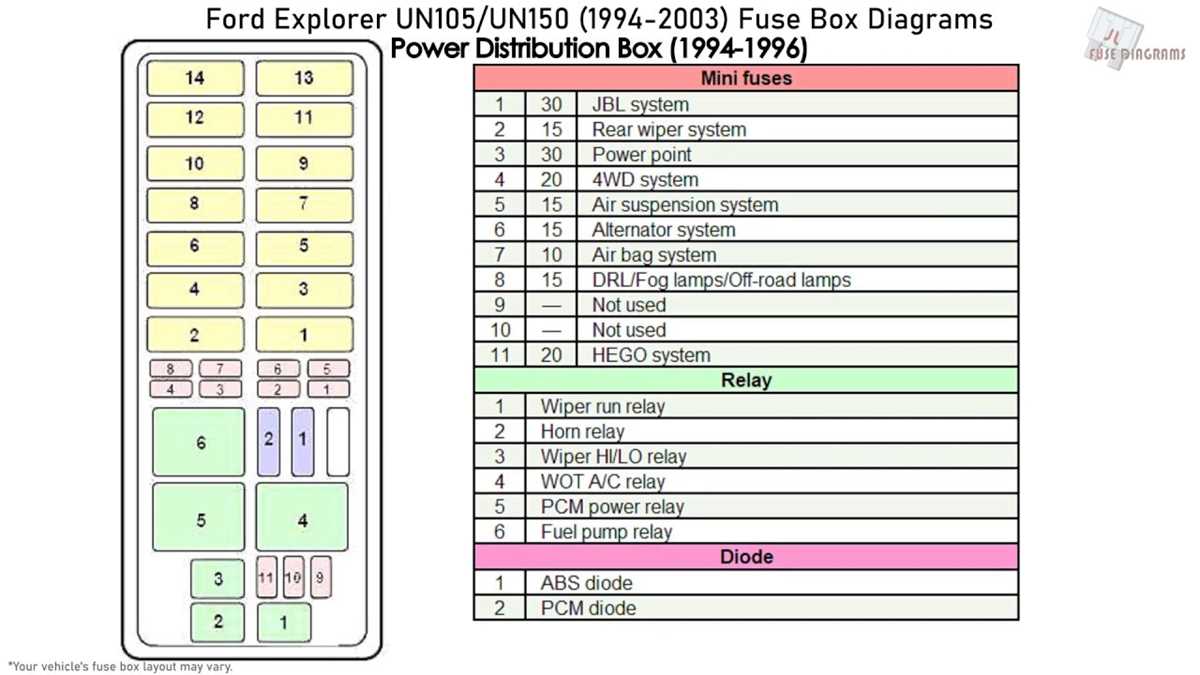

The engine compartment distribution center is positioned near the battery and supports high-load circuits including cooling fans, ignition modules, and primary power lines. These slots often use higher-rated links and may include relay components.
Interior Panel Circuit Breakdown
Each slot corresponds to a defined circuit, and some may supply multiple systems. If several components stop working at once, check shared circuits first. Use a multimeter to test continuity across each metal strip rather than relying only on visual inspection.
Loose contacts or slight corrosion can interrupt current flow without visible damage. Inspect terminals carefully and clean contact points if needed to restore proper connection.
Engine Bay Power Distribution Details
Main links in the under-hood unit are connected directly to the battery and protect larger electrical paths. After replacing any damaged component, reconnect the battery and test each related system to confirm stable operation without voltage drops.
Where each fuse panel is located and how to access it safely
Disconnect the negative battery cable before opening any electrical panel to prevent short circuits and protect sensitive components.
The interior panel is located beneath the dashboard on the driver side, close to the steering column. It is covered by a snap-on plastic lid that can be removed without tools.
- Position yourself under the steering wheel
- Locate the rectangular cover panel
- Pull evenly to release retaining clips
Use steady pressure when removing the cover to avoid damaging plastic tabs. If resistance is high, check for hidden fasteners or tight clip points along the edges.
Engine Compartment Panel Access
The second panel sits in the engine bay near the battery or along the inner fender. Release the locking tabs, lift the cover straight up, and keep the area clean to prevent debris from entering the housing.
