Locate the under-hood power distribution center near the battery and inspect the cover label to match each slot with its assigned circuit before replacing any blown element; this prevents installing the wrong amperage and avoids wiring damage.
Check high-current links first, especially those rated between 30A and 60A, as they protect systems like cooling fans, ABS, and charging components; a failed link in this range often leads to multiple electrical issues at once.
Use a multimeter instead of relying only on visual inspection, since some damaged inserts appear intact but fail under load; measure continuity across terminals and confirm voltage supply on both sides while the ignition is in the correct position.
Pay attention to relay positions integrated within the same housing, as they control ignition, fuel delivery, and fan operation; swapping a relay with an identical one from a non-critical circuit can help confirm whether the issue is relay-related.
Always compare slot numbering with the printed layout on the cover and align orientation correctly, since rotating the reference can lead to incorrect identification and wasted time during troubleshooting.
2001 Ford Taurus Exterior Fuse Box Layout and Circuit Details
Open the under-hood power distribution center near the battery and match each numbered slot with the printed layout under the cover; verify circuit assignment before removing any protective element to avoid disrupting active systems.
The layout is divided into high-current links and relay-controlled circuits, typically arranged in rows for quick identification; larger rated components handle systems that draw significant power and should be checked first during electrical faults.

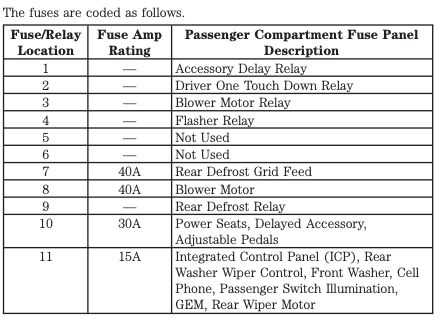

Common circuit assignments include:
- cooling fan control and motor supply
- anti-lock braking system power feed
- alternator output protection
- main ignition relay connections
Relays are integrated into the same housing and positioned alongside the main protection elements; identify each by matching the part number and location printed on the cover, then test by swapping with an identical unit from a non-critical circuit.
Confirm amperage ratings stamped on each component before replacement and use a multimeter to check continuity and voltage across terminals, ensuring accurate diagnosis rather than relying only on visual inspection.
Exact location of under hood fuse box in 2001 Taurus
Open the hood and look to the driver side near the battery; the main power distribution unit is mounted close to the fender and covered by a rectangular black plastic housing with locking tabs.
Release the side clips and lift the cover upward to access the internal layout; the unit sits slightly forward of the battery and is fixed to a bracket, making it stable and easy to reach without removing other components.
Identify it by thick power cables entering the housing, which supply high-current protection links for systems like cooling fans, charging circuit, and braking electronics; the cover underside shows slot numbering aligned with the internal layout for quick reference.
