Check the main power relay near the engine compartment before testing any control switches. This relay supplies direct current to the thermal regulator and motor, and a failure here will prevent the system from operating.
Inspect all inline protective elements along the supply line, including smaller amperage guards located near the battery and junction points. Identifying the correct rating for each connection prevents overheating and unexpected shutdowns.
Trace the wiring harness from the motor to the control module, noting any branching points that serve multiple components. Proper labeling helps avoid miswiring during maintenance or replacement.
Confirm the condition of the ground terminals attached to the chassis. Poor grounding can cause erratic motor operation even if all other connections appear intact.
Cooling System Circuit Layout Overview

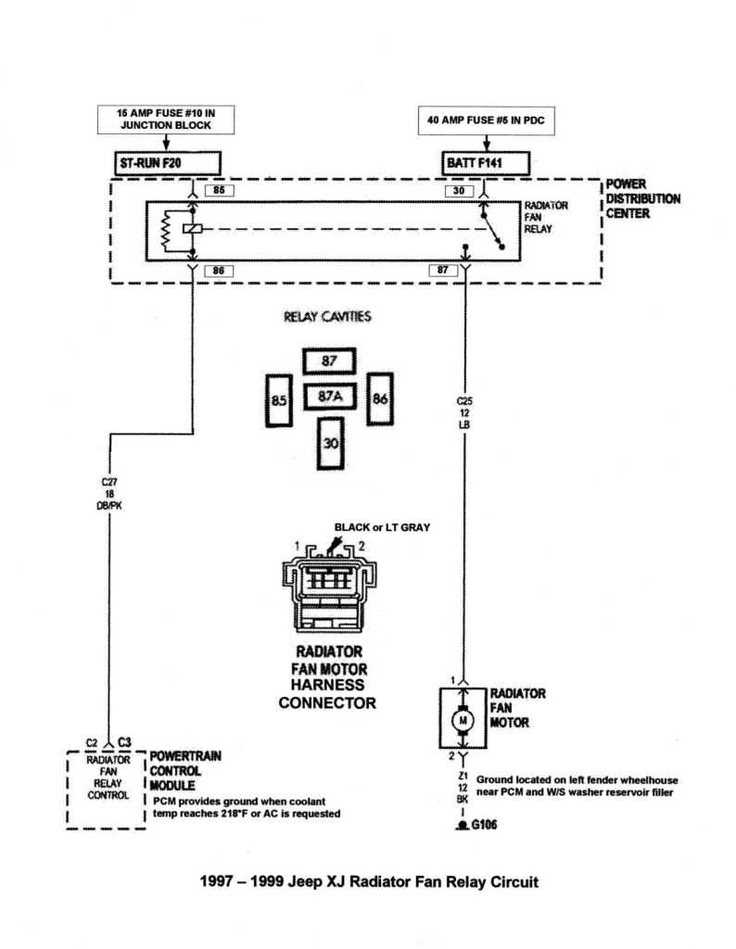

Start by inspecting the main relay module in the engine bay. This relay controls high-current flow to the cooling motor and activates based on temperature sensor input, ensuring the thermal unit engages at the correct threshold.
Follow the positive supply line from the battery to the junction connectors. Pay attention to inline protective devices rated between 20 and 40 amps, which prevent overloads along the circuit path.
The control module distributes voltage through multiple branches. Check each branch for continuity to the motor terminals and auxiliary resistors. Loose connections here often cause intermittent operation or failure to start.
- Temperature sensor triggers signal wire
- Relay coil receives ignition-controlled voltage
- Motor receives full current from battery through protective link
- Ground wire ensures stable operation and prevents voltage spikes
Confirm all chassis ground points are free of corrosion and properly tightened. Even small resistance at these points can reduce motor speed and prevent the system from reaching full cooling capacity.
Identifying Power Connections and Relay Points
Start by locating the main power terminals near the battery and follow the thick supply lines leading to the control module. These terminals provide high-current delivery to the motor and should be checked for corrosion or looseness.
Inspect the relay sockets for secure mounting and proper pin contact. Each relay acts as a switch that routes voltage to the motor only when the control signal is present, preventing continuous current draw that could overheat wiring.
Trace the secondary connections to inline connectors. Ensure all crimps are tight and that no wires show signs of melting or discoloration, which can indicate past overload or resistance buildup.

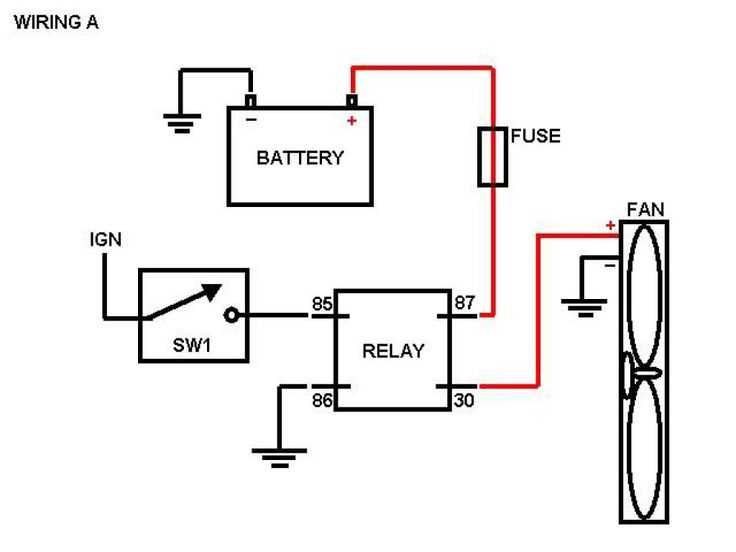

- Control module triggers relay coil with low-voltage signal
- Main relay passes battery voltage to the motor circuit
- Auxiliary connections to resistors and sensors adjust operation speed
- Ground points maintain consistent voltage and prevent voltage spikes
Verify continuity across each path using a multimeter to confirm that the current can flow without interruption. Faulty connections at power junctions or relay pins often cause intermittent or failed operation of the cooling assembly.
