Check the interior power distribution panel first to locate circuits linked to lighting, audio, and accessories. This unit sits on the driver side under the dashboard and contains low to mid-range amperage links, usually from 5A to 30A, arranged in a numbered grid.

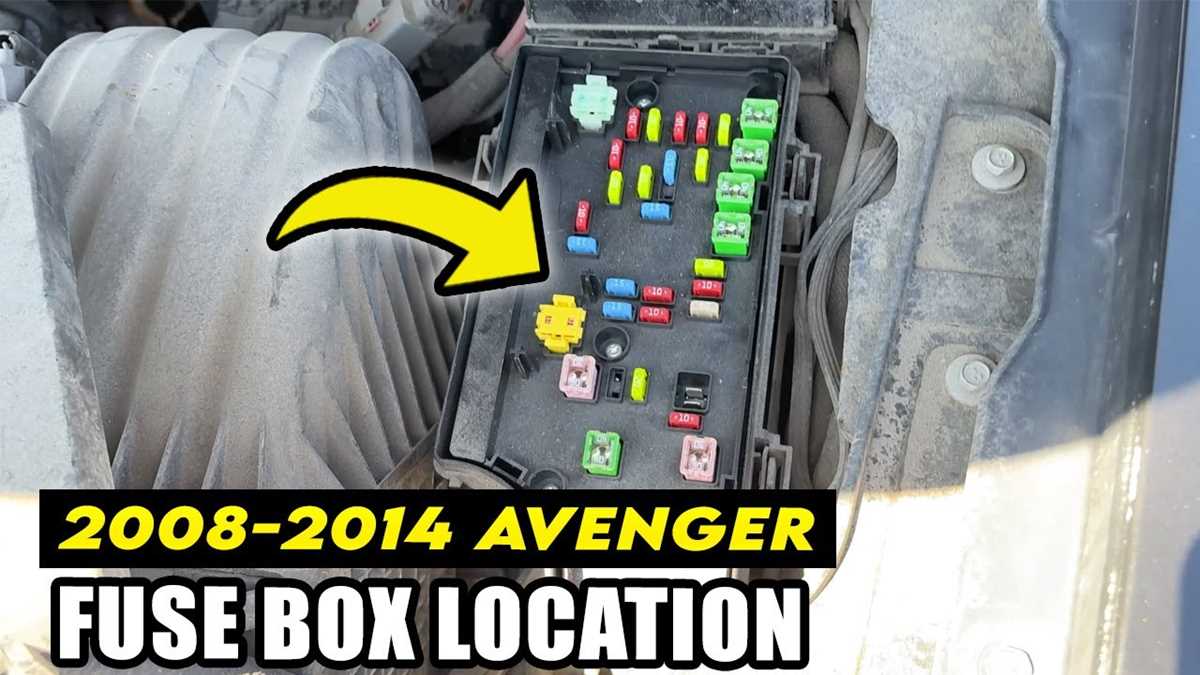

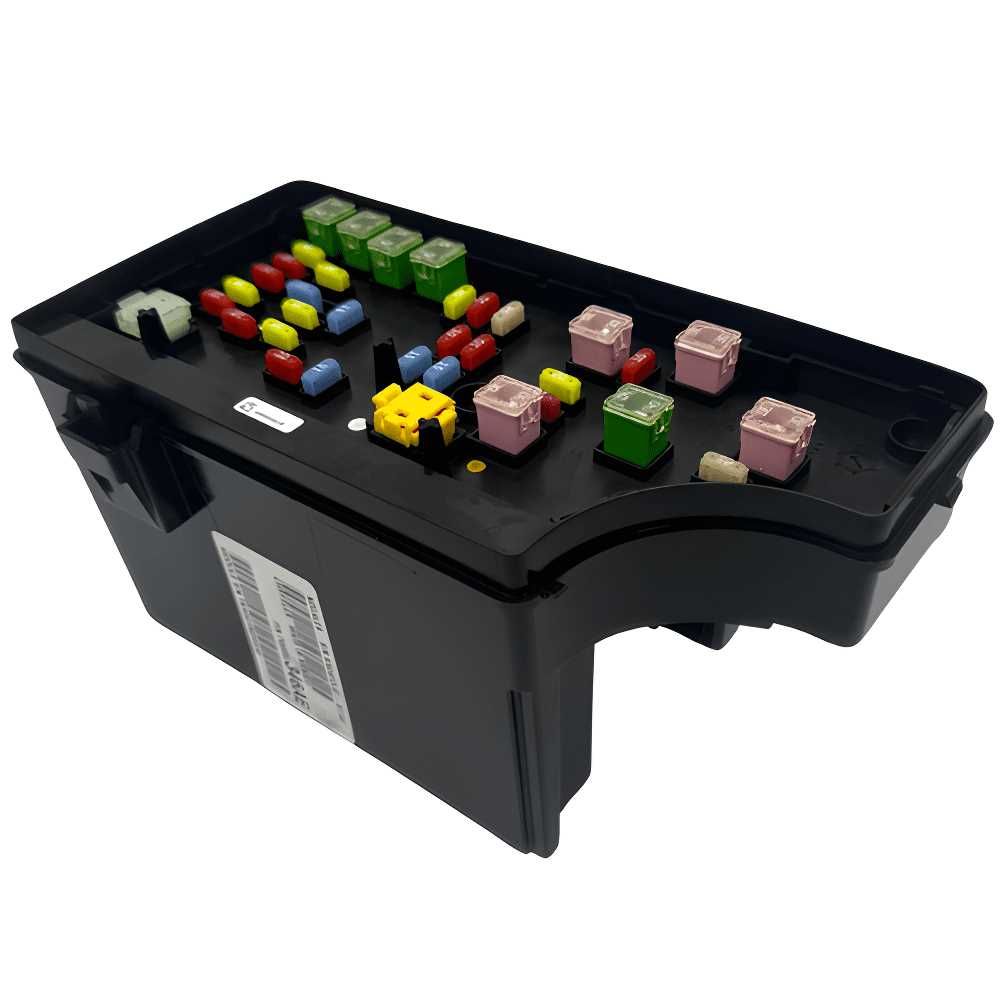

Inspect the engine compartment module next, positioned near the battery and protected by a plastic cover with locking tabs. This area manages high-load systems such as cooling fans, ignition components, and charging circuits, with cartridge-style links often rated between 30A and 60A.
Use the legend printed inside each cover to match slot numbers with system functions. If markings are unclear, trace wire colors from each position. Red wires typically indicate constant power, while other colors correspond to switched or controlled circuits, helping identify the correct connection path.
Test each link using a multimeter rather than relying only on visual inspection. Measure continuity across terminals and verify voltage supply with the ignition in the required position to confirm proper operation and avoid incorrect replacements.
Fuse Diagram for 2008 Dodge Avenger
Use the panel legend printed on each cover to match numbered slots with their assigned circuits before removing any component, as incorrect placement can interrupt multiple systems. The interior panel handles cabin electronics such as lighting, radio, and power outlets, while the engine compartment unit supports high-load components like cooling fans and ignition modules.
Follow this structure to identify circuit roles accurately:
- Low-amperage slots 5A–15A power interior lights, dashboard cluster, and control switches
- Mid-range links 20A–30A support power windows, door locks, and accessory sockets
- High-current cartridge links 30A–60A in the engine area feed charging system, radiator fan, and starter relay
- Relays positioned near high-load links control switching of fuel delivery and cooling operations
Interior Fuse Panel Layout with Slot Numbers and Assigned Circuits
Check the numbered grid printed next to each slot and match it with the legend on the cover before removing any element, since each position connects to a specific circuit path. The layout follows a fixed sequence, usually arranged in rows from top to bottom.
Upper rows commonly supply dashboard systems such as instrument cluster, warning lights, and control modules. These positions often use 5A–10A ratings and are grouped together to simplify tracing during electrical checks.
Middle rows handle accessories including radio unit, interior sockets, and climate control circuits. These slots typically range from 10A to 20A and may share power distribution through adjacent positions.
Lower rows are assigned to higher-load cabin components like power windows and central locking. Ratings here often reach 20A–30A, and wiring from these slots runs directly to door modules and switch assemblies.
To verify a slot, use a multimeter and check voltage at both terminals. If power appears on one side only, the internal strip has failed. This method confirms issues without relying on visual inspection.
After servicing, ensure each element is seated fully in its cavity and the protective cover is reinstalled securely. Loose placement can cause intermittent contact and unstable operation of interior electrical systems.
