Complete Fuse Box Diagram and Layout for 2008 Dodge Charger with Fuse Locations

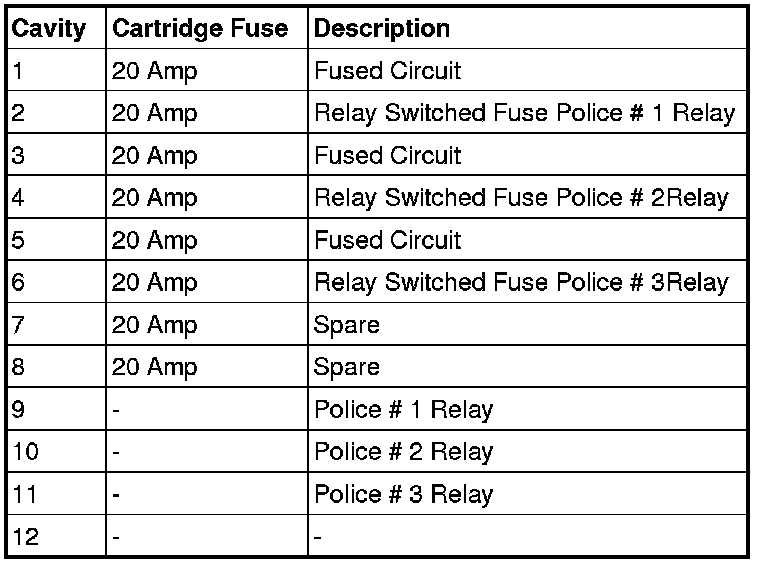

fuse box diagram for 2008 dodge charger

Locate the primary electrical panel beneath the dashboard on the driver’s side to check and replace any faulty circuits. Label each slot before removal to avoid confusion during reinstallation.

Under the hood, the secondary distribution unit controls high-current components. Use a test light or multimeter to verify continuity before swapping any connectors, reducing risk of short circuits.

Understanding the function of each slot helps prevent system malfunctions in lighting, infotainment, and climate controls. Document any changes made to the panel to maintain reliable operation and quick troubleshooting in the future.

Electrical Panel Layout for 2008 Charger

Start by identifying the primary panel beneath the steering column. Mark each terminal before disconnecting to maintain proper connections during maintenance.

The secondary under-hood unit manages high-current circuits such as headlights, cooling fans, and the ignition system. Check amperage ratings before replacing any components to prevent overloads.

Slots controlling interior lighting and infotainment are grouped together near the driver’s side panel. Inspect contacts for corrosion, which can cause intermittent failures or flickering devices.

Testing and Replacement Guidelines

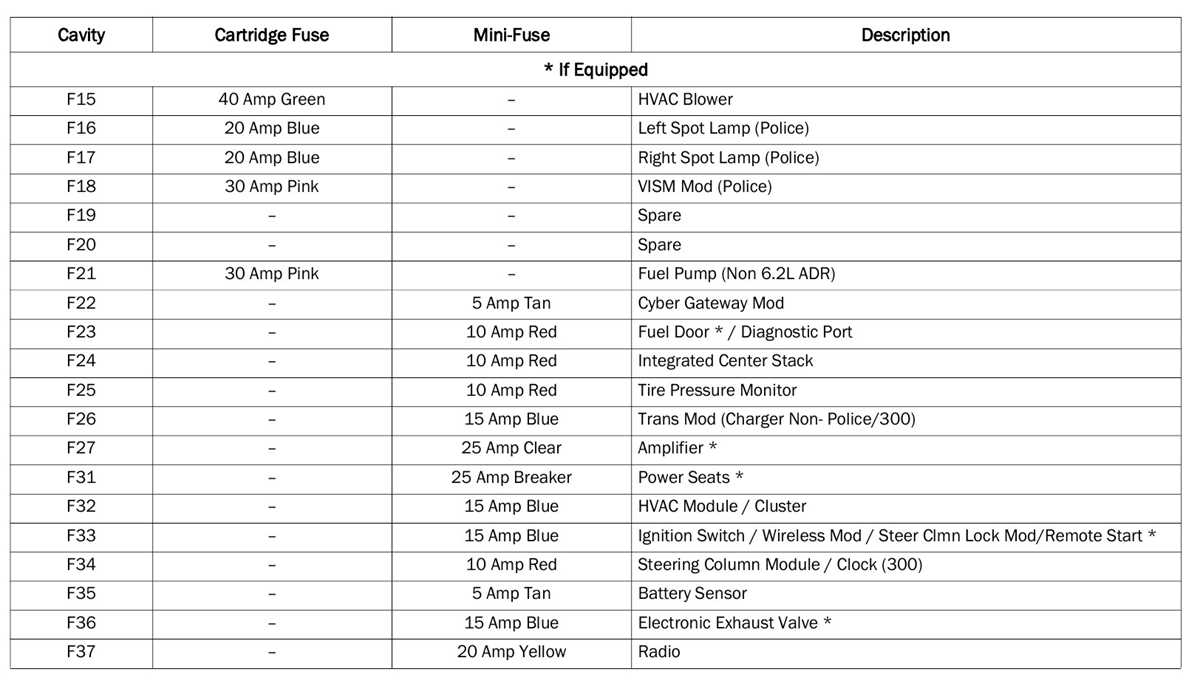

fuse box diagram for 2008 dodge charger

Use a multimeter or test lamp to verify continuity before removing any connectors. Always disconnect the battery to reduce risk of sparks when handling live terminals.

Keep spares of frequently used amperage ratings, such as 10A, 15A, and 20A units, within reach for quick swaps. Document any replacements to track system changes over time.

Labeling each slot according to the component it protects helps prevent misplacement and incorrect installation. Double-check labels after each service session to ensure accuracy.

Maintaining Reliable Operation

fuse box diagram for 2008 dodge charger

Regular inspection of both interior and engine compartment units prevents unexpected failures. Clean terminals and remove debris to maintain a secure electrical connection.

Consult the owner’s guide to identify less obvious circuits, including power seats, rear defrosters, and auxiliary outlets. Understanding these layouts ensures proper maintenance and troubleshooting efficiency.

Identifying Locations in Engine and Cabin Panels

Access the driver-side panel under the dashboard to locate circuits controlling interior lights, climate controls, and infotainment systems. Follow these steps:

  • Remove the panel cover by pressing tabs gently to avoid breaking clips.
  • Use a flashlight to inspect the row of slots for labels or color codes indicating amperage.
  • Document each slot’s function using a small notebook or camera for reference during replacements.

Under the hood, the distribution unit powers high-demand components. Check each terminal carefully:

  1. Identify circuits for headlights, radiator fans, and ignition modules.
  2. Verify each terminal is seated firmly and free of corrosion or debris.
  3. Keep a set of replacement connectors and ratings nearby to speed up repairs.

Combining accurate identification in both compartments reduces troubleshooting time. Label interior and engine terminals consistently, and cross-reference with the owner’s manual to ensure correct servicing of lighting, audio, and power accessories.
