Check the cabin-mounted electrical panel under the dashboard on the driver’s side to quickly identify circuit protection elements responsible for lighting, ignition, and auxiliary systems. Each slot corresponds to a specific amperage rating, typically ranging from 10A to 40A, with color-coded inserts that simplify identification. For example, a 15A blue element often protects interior lighting and radio circuits, while a 20A yellow unit may handle wiper operation and washer pump.
Under-hood distribution centers contain higher-capacity links tied to the starter relay, alternator output, and cooling fan. These components are usually secured with bolts rather than clips, requiring a wrench for inspection or replacement. A 50A or 60A link here commonly safeguards the main charging line, preventing overload damage during voltage spikes.
Use the labeling on the inner cover panel to match each slot with its function. If markings are faded or missing, trace wiring harness colors: red with a tracer typically indicates constant power, while pink or orange lines often relate to switched ignition circuits. This method reduces guesswork when troubleshooting non-working accessories such as power windows, HVAC blower, or brake lights.
Always disconnect the negative battery terminal before accessing any electrical distribution area to avoid short circuits. After replacing a burnt element, verify the root cause–frequent failure usually points to a grounded wire or malfunctioning component rather than a defective insert.

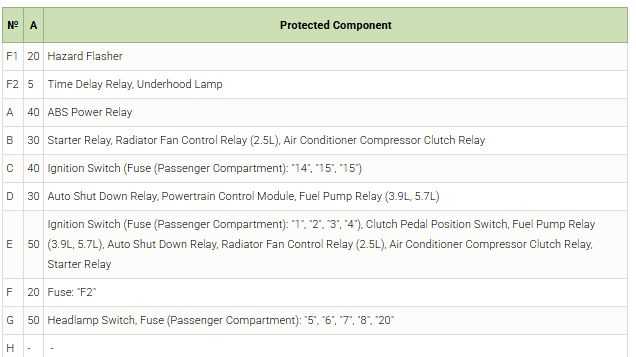

95 Dodge Dakota Fuse Box Diagram: Practical Guide
Locate the interior power panel under the driver-side dash and use the cover label to match each circuit slot with its function; if the label is missing, rely on wire color and amperage markings stamped on each blade. For a 1995 model, common ratings include 10A for instrument cluster and radio, 15A for wipers and turn signals, and 20A for power outlets. Always pull the negative battery terminal before removing any element to prevent short circuits, and replace only with the same amp value to avoid overheating or melted wiring.
Engine compartment distribution center sits near the battery and handles higher-load circuits such as cooling fan, ABS, and headlights. Inspect visually for corrosion on contacts and signs of heat damage. Use a multimeter set to continuity mode: touch both terminals of the removed element–no beep means it’s blown. Keep a small kit of spare blade inserts (mini and standard sizes) in the glove compartment. If multiple circuits fail simultaneously, check the main relay and grounding points rather than individual slots.
Typical layout reference:
- Cabin panel: lighting, audio system, dashboard indicators
- Under-hood unit: ignition system, radiator fan, charging system
- Inline holders: aftermarket accessories like alarms or amplifiers
Label each position manually with a permanent marker after verification; this saves time during roadside troubleshooting and reduces risk of installing incorrect components.
Where to Find the Fuse Box in a 1995 Dodge Dakota and How to Access It Safely
Check under the dashboard on the driver’s side: the main electrical panel is mounted low, close to the steering column, slightly toward the left kick panel. A secondary power distribution unit sits under the hood near the battery, secured inside a black plastic housing.
Inside the cabin, kneel beside the driver’s seat and look upward beneath the dash trim. You will see a rectangular cover held by clips; gently pull it outward to expose the internal circuit protectors. No tools are required if the clips are intact.
Under the hood, locate the battery first, then trace the thick positive cable; it leads directly to the external power center. Release the retaining tabs on the lid by pressing them inward, then lift the cover straight up to avoid damaging the hinges.
Disconnect the negative battery terminal before touching any electrical components. This step prevents accidental short circuits and reduces the risk of sparks while handling internal elements.
Use a plastic trim tool or your fingers rather than metal objects when removing covers. Metal tools can slip and create contact between terminals, which may damage wiring or cause minor burns.
Work in a well-lit area and keep a small flashlight handy. Many markings that identify each circuit protector are printed on the inside of the cover; dirt or fading may make them difficult to read without direct light.
When pulling out a component, grip it firmly and pull straight out without twisting. If resistance is high, use a dedicated puller tool stored in some vehicles within the panel itself. Avoid using pliers, as they can crack plastic casings.
After inspection or replacement, press each element fully back into place, then reinstall the covers securely. Reconnect the battery terminal only after confirming that all parts are seated correctly and no loose wires remain.
