Locate the power distribution chart in the under-hood module first, as it contains high-amperage links for the starter relay, cooling fan, and ABS system; cross-check these positions with the cabin panel to avoid misdiagnosis when a circuit fails.
The pickup from the early 2000s uses two main protection blocks: one near the battery and another behind the dash on the driver’s side. The engine-bay block typically houses 30–60 amp links for heavy loads, while the interior panel manages 5–25 amp elements for lighting, radio, and accessory outlets. Matching amperage ratings is non-negotiable–installing a higher-rated insert can lead to wiring damage, while a lower rating may cause repeated interruptions.
Each slot is labeled with a circuit ID rather than a full description, so keep a reference list of functions such as ignition feed, HVAC blower, and instrument cluster supply. Use a multimeter instead of visual inspection to confirm continuity; hairline breaks are common and often invisible. For intermittent faults, gently tap the relay block while monitoring voltage–this helps identify loose contacts or worn terminals.
When tracing issues like non-working headlights or a dead power outlet, isolate the affected branch by removing related relays one at a time. Document the original placement before removal to prevent incorrect reinstallation. A printed layout map stored in the glove compartment reduces guesswork during roadside troubleshooting and speeds up repairs significantly.
Pickup Electrical Panel Layout: Practical Guide
Check the interior power block first: it sits on the driver-side edge of the dashboard behind a snap-off cover, and the under-hood unit is mounted near the battery. Use the lid markings as a quick index, then verify amperage ratings before pulling any component–mismatched ratings lead to recurring faults or melted contacts.
The cabin block controls lighting, radio, wipers, and accessory sockets. The engine-bay unit handles higher-load circuits like cooling fans, ABS pump, and starter relay. Always disconnect the negative battery terminal before working in the engine compartment to avoid shorting exposed terminals.
Common assignments you should expect:
- 10A–15A slots: interior lamps, instrument cluster, audio unit
- 20A–30A slots: power windows, seat motors, blower motor
- 40A+ links: radiator fan, anti-lock brake module, main feed
When tracking a fault, use a test light or multimeter instead of visual inspection alone. A strip can look intact yet fail under load. Probe both sides of the slot with ignition in the required position; voltage on one side only indicates a blown link. If a replacement fails again, trace the circuit for chafed wiring near door hinges or under the battery tray.
Carry spare elements in these ratings: 10A, 15A, 20A, and 30A. Keep a puller tool clipped inside the cover to avoid damaging the contacts. For recurring issues with accessories cutting out during bumps, inspect the panel pins for looseness and reseat the block firmly into its bracket.
Location and Access of Fuse Boxes in 2002 Dodge Dakota (Interior and Engine Bay)

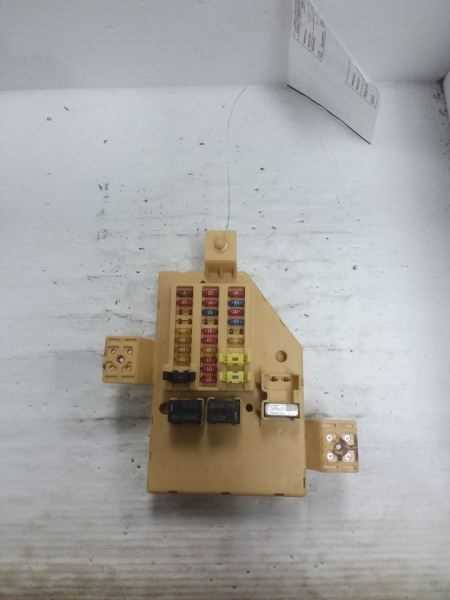

Open the driver-side door and immediately check the side panel of the dashboard: the interior electrical block sits behind a snap-on cover that can be removed without tools by pulling from the lower edge. The panel is positioned just ahead of the door hinge line, making it reachable without bending deeply into the cabin.

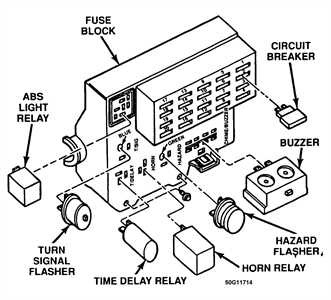

Inside the cabin unit, components are arranged in vertical rows with clear numbering stamped into the plastic housing. A small plastic puller is often clipped inside the cover; use it to extract elements cleanly without damaging contacts. Clearance around this area is tight, so tilt the cover outward first, then lift upward to avoid breaking the retaining tabs.
For the engine compartment unit, lift the hood and move to the passenger-side fender well. The power distribution center is a black rectangular box located near the battery. Release the lid by pressing the two side latches inward; do not pry with metal tools, as the clips can crack under uneven force.

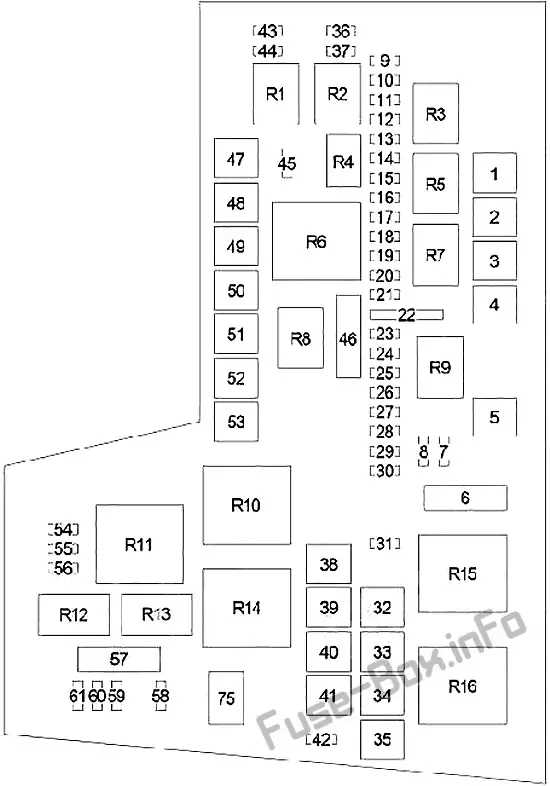

Under-hood access requires attention to surrounding components such as wiring looms and the air intake duct. Keep the lid angled upward while removing it to prevent contact with nearby hoses. The underside of the lid usually contains a molded layout guide indicating relay and circuit positions.
Moisture protection in the engine bay unit depends on proper lid seating. After inspection or replacement, press evenly along all edges until each latch clicks. A loose seal may allow water intrusion, leading to intermittent electrical faults.
The interior block is less exposed but can still collect dust. Before reinstalling the cover, wipe the edges and check that no debris interferes with proper closure. Misalignment here can cause rattling noises while driving.
Lighting conditions matter: use a focused flashlight when working under the dashboard, as ambient cabin light does not reach the inner rows clearly. In the engine area, daylight is usually sufficient, but shadows from the hood can obscure smaller markings.
Both locations are designed for quick service access, yet forcing parts or skipping alignment checks often leads to broken clips or poor electrical contact. Careful handling preserves the mounting points and ensures stable operation of all protected circuits.
