Open the driver side dashboard cover and inspect the interior power distribution unit, matching each labeled slot with the printed legend before removing any component. This prevents disconnecting the wrong circuit and avoids additional electrical faults.
The cabin-mounted unit handles low-amperage systems such as infotainment, interior lighting, and control modules, while a second unit under the hood manages high-load components like cooling fans, braking systems, and engine electronics. Each slot is identified by number and function, often abbreviated.
Use a multimeter to verify continuity and voltage rather than relying only on visual inspection. A protective strip may appear intact but fail under load. Check both sides of the slot for voltage while the system is active.
Relays positioned рядом with the distribution units control switching for headlights, fuel system, and auxiliary equipment. Swap identical relay units between circuits to isolate faults quickly.
Inspect wiring harnesses leading from both units toward major components. Look for heat damage, loose connectors, or worn insulation near mounting points, as these issues often cause intermittent electrical problems.

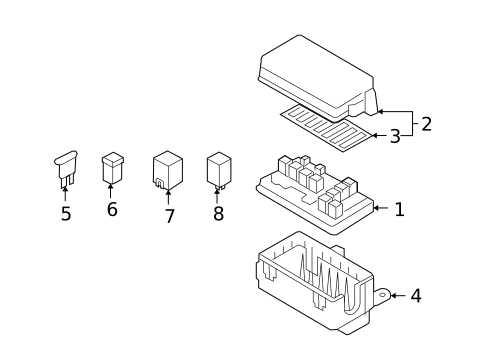

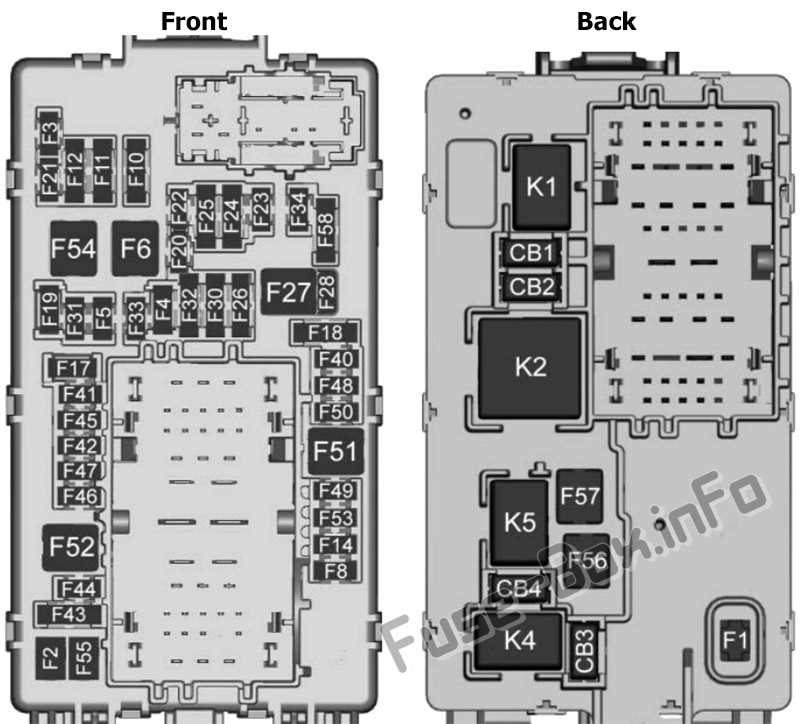

Electrical distribution layout for 2022 Chevy Silverado 2500 HD fuse box diagram
Check the driver side dash area first and match each labeled slot with the cover legend before removing any protective insert.
The interior distribution unit contains low-amperage circuits for systems like infotainment, lighting, and control modules, arranged in rows with clear numbering and abbreviated labels. Verify each position carefully to avoid disconnecting unrelated components.

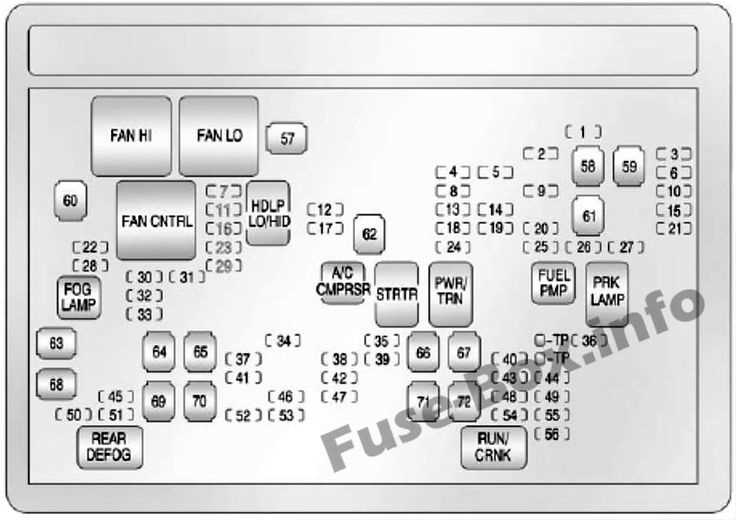

Under the hood, a second power distribution unit near the battery handles high-load circuits such as cooling fans, braking systems, and engine electronics. Release the cover using side clips to access internal elements and printed layout information.
Relays located рядом with these units control switching for major systems including headlights and fuel delivery. Swap identical modules between circuits to confirm faults and inspect wiring connections for looseness or heat damage.
Exact location of interior and engine compartment fuse panels in 2022 Chevy Silverado 2500 HD

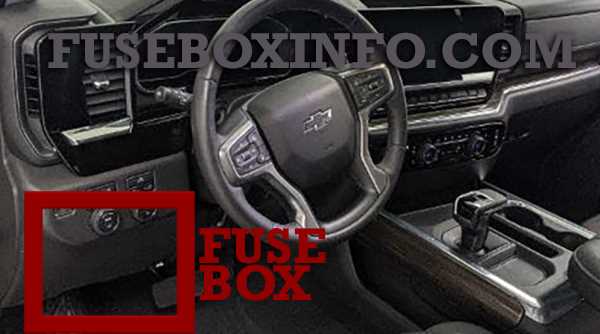

Open the driver side dashboard end cover to access the interior electrical distribution unit mounted on the side of the instrument panel.
This cabin-mounted block is hidden behind a removable пластик cover that snaps into place. Once removed, rows of protective inserts and relays become visible, each labeled for systems such as infotainment, lighting, and control modules. Refer to the legend printed on the cover to match each slot with its function.
For the engine compartment, lift the hood and locate the main power distribution unit near the battery on the driver side.
This unit is enclosed in a sealed housing with locking tabs. Press the tabs to remove the lid and access high-load circuits controlling cooling fans, braking systems, and engine electronics. The layout is printed inside the cover for quick reference.
Ensure both covers are secured after inspection and check mounting points and wiring entry areas for looseness or wear, as vibration and heat can affect connections over time.
