Check the cargo compartment trim panel on the left side and remove the cover to access the protected circuit block; use the label inside the lid to match each slot with its assigned system before pulling any component.
Each slot is rated by amperage, typically ranging from 5A to 40A, and supports systems such as power liftgate, audio amplifier, trailer wiring, and interior outlets. Match the amperage exactly when replacing a blown element to avoid wiring damage or intermittent faults.
Use a test light or multimeter to confirm power at both terminals of the inserted component; a break in continuity indicates failure. Inspect nearby relays controlling high-load features like heated seats or auxiliary power modules, as these can mimic a blown protective link when faulty.
Keep a printed layout reference in the glove compartment and mark frequently serviced circuits. This reduces time spent tracing wiring paths and prevents accidental removal of working elements during diagnostics.

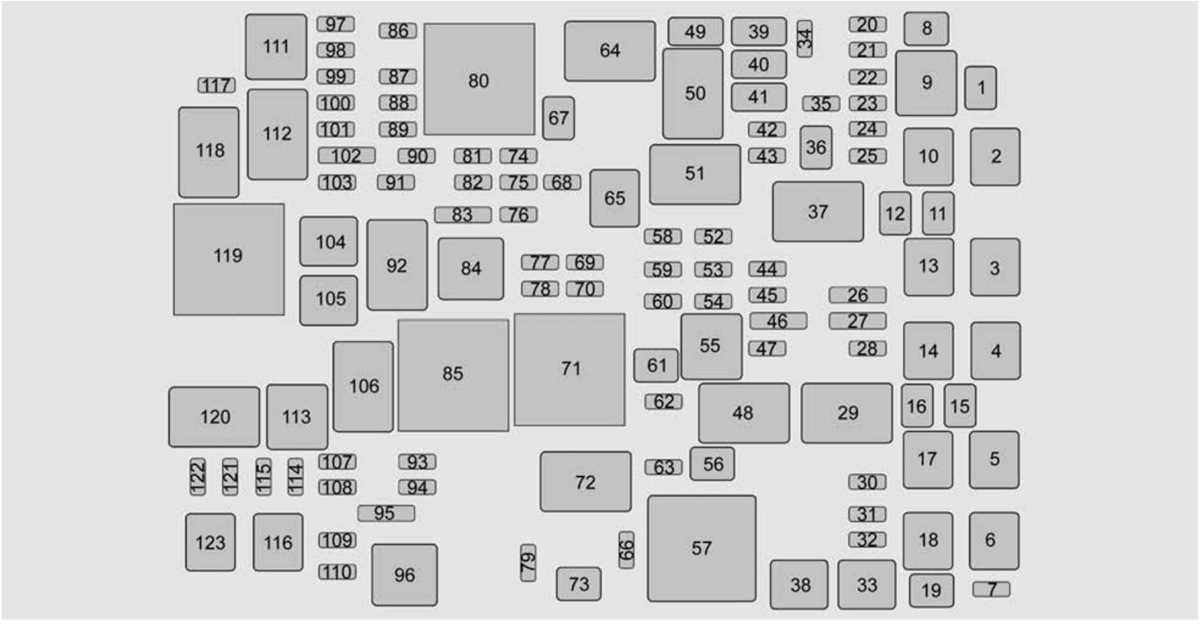

2015 Chevy Tahoe Rear Fuse Box Diagram Guide

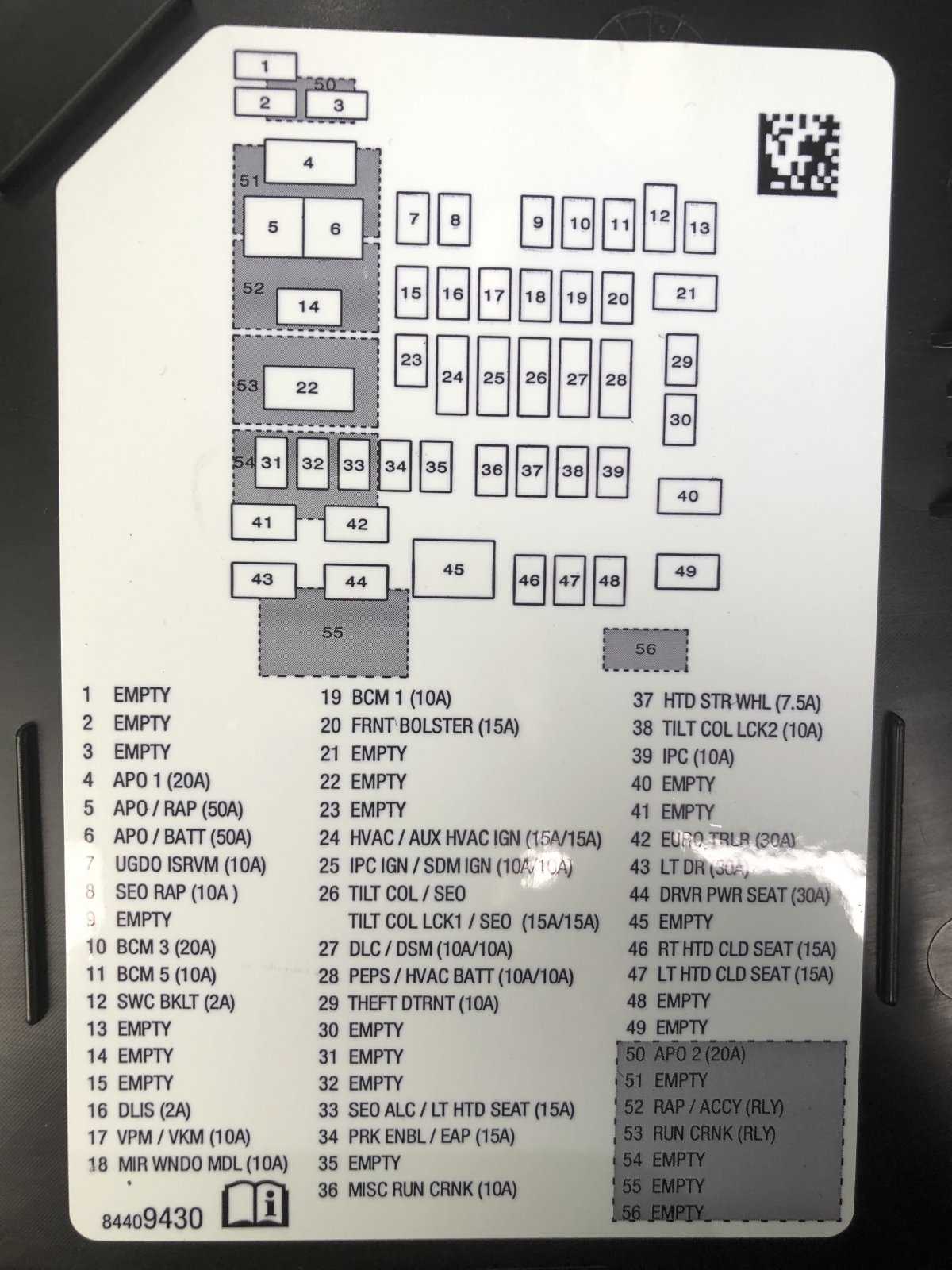

Open the left cargo side trim and remove the plastic cover to reveal the protected power distribution panel; use the legend printed on the lid to align each slot with its assigned circuit before removing any component.
Follow this sequence to read the layout correctly:
- Identify amperage rating stamped on each element such as 10A, 15A, or 30A
- Match slot numbers with the printed legend on the cover
- Trace connected systems like liftgate motor, audio unit, and trailer connector
- Check relay positions located adjacent to high-load circuits
Power distribution in this section typically supports auxiliary systems rather than engine management, including cargo outlet sockets, suspension control modules, and memory seat functions; incorrect replacement rating can lead to overheating of wiring or repeated failure under load.
Use a multimeter set to continuity mode and test both terminals of the inserted link; voltage should be present on both sides when intact. If only one side shows power, replace it with an identical amperage unit and recheck operation of the affected system.
Inspect surrounding connectors and grounding points if issues persist, especially near the quarter panel metal frame; loose grounds often mimic a failed protective element and cause intermittent faults in lighting, tailgate electronics, or audio components.
Exact rear compartment panel location and access steps in Tahoe 2015
Open the cargo area and focus on the left interior sidewall; remove the molded trim cover by pulling from the upper edge where clips release with moderate force, then lift it outward to expose the electrical distribution block mounted behind it.
Use a plastic trim tool to avoid scratching panels and follow a clear sequence: disengage upper clips first, then lower tabs, keep fasteners in order, and avoid pulling wiring harnesses routed near the panel; once open, locate the labeled layout on the inner cover, verify circuit positions before removing any protective element, and ensure ignition is off to prevent short circuits during inspection.
