Check the engine compartment unit first: it is positioned near the battery on the driver’s side and contains high-amperage links for ignition, cooling fans, and charging components. The cover’s inner label lists each circuit by number; match these numbers with the legend to identify which relay or link controls subsystems like the starter motor, HVAC blower, and trailer wiring feed.
Inside the cabin, the secondary panel sits along the left side of the dashboard, accessible with the door open. This section manages lower-current circuits such as infotainment, interior lighting, and accessory outlets. Pay attention to mini and micro blade elements rated between 5A and 30A; mismatching amperage can lead to wiring damage or repeated failure of the same circuit.
Use a multimeter for verification: probe both sides of each protective element while the circuit is energized. A voltage drop across the terminals signals a blown component. For intermittent faults, inspect relay contacts in the engine bay unit–swapping with an identical relay from a non-critical system can quickly confirm whether the relay is defective.
For towing setups and auxiliary equipment, focus on dedicated positions labeled for trailer brake control and power feed. These slots often require factory-installed or aftermarket inserts; absence of these components results in inactive connectors at the rear harness. Always cross-check wire colors and pin assignments when diagnosing trailer lighting or brake signal issues.
Keep a printed layout reference in the glove compartment and mark any modifications, such as added accessories or replaced relays. This reduces diagnostic time during roadside troubleshooting and helps maintain clarity when multiple circuits share similar ratings and positions.
2015 Chevy Silverado 1500 Fuse Box Diagram: Precise Locations and Circuit Breakdown
Open the driver-side door and remove the side dash panel to access the primary electrical panel; this is where most cabin-related circuits are grouped. A second power distribution unit sits under the hood near the battery, secured by a plastic cover with snap tabs. Interior panel handles low-current systems such as infotainment, HVAC controls, and interior lighting, while engine bay module manages high-load circuits including cooling fans, ABS, and ignition components.

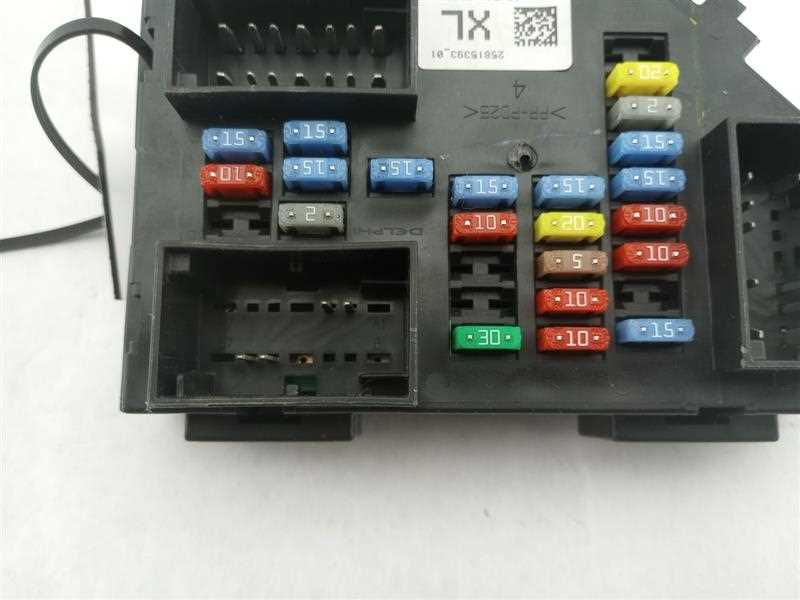

The cabin-side unit is arranged in tightly packed rows with numbered slots; refer to the molded legend on the back of the cover for exact mapping. Typical assignments include slot F10 for radio, F20 for power outlets, and F28 for instrument cluster. If a feature like the touchscreen or USB ports fails, inspect these positions first. Use a puller tool stored inside the cover to avoid damaging contacts.
Under-hood distribution is divided into relays and blade-style links. Larger square relays control functions such as fuel pump operation and starter engagement, while flat metal links protect circuits like trailer brake control and headlamp supply. Cooling fan relays are usually grouped together near the front edge, making them easy to identify when diagnosing overheating or fan inactivity.
For lighting faults, check both locations: cabin slots often handle switch logic, while engine compartment elements feed the actual lamps. For example, low beam issues may trace to a relay under the hood, while dashboard light failure points to the interior grid. Always test continuity with a multimeter rather than relying on visual inspection alone.
Amperage ratings are stamped on each component; never replace a 10A link with a higher value. Doing so risks wiring damage or control module failure. Keep spare pieces of 5A, 10A, 15A, and 20A in the glove compartment for quick roadside fixes.
If multiple systems stop working simultaneously, inspect main power feeds in the engine bay block, especially the large cartridge-style protectors. Corrosion or loose seating here can cut power to several subsystems at once. Clean contacts with electrical cleaner and ensure each element sits firmly before reassembly.
Exact placement of interior and engine bay fuse boxes with access instructions
Open the driver’s door and move directly to the left side of the dashboard end panel; the interior electrical center sits behind a removable plastic cover that faces the door hinge area. Pull the cover outward from the notch at the bottom edge using steady pressure–no tools are required if the temperature is above freezing, but a plastic trim tool helps prevent cracking in cold conditions.
Inside the cabin compartment, the panel is mounted vertically and slightly recessed. For better visibility, lower the steering column to its lowest tilt position and switch on a flashlight. The legend is printed on the reverse side of the cover; align it with the component grid before touching any element to avoid incorrect removal.
Access steps for the cabin unit:
- Turn ignition fully off and remove the key
- Open driver’s door wide to expose the side panel
- Grip the cover notch and pull straight outward
- Store the cover in a safe place to prevent damage
- Use needle-nose pliers only if fingers cannot grip the component
The under-hood power distribution center is positioned on the left side of the engine compartment, near the battery and brake fluid reservoir. Release the hood latch from inside the vehicle, then lift the hood and secure it with the prop rod. The enclosure has a rectangular lid with two locking tabs–press both simultaneously and lift upward.
This engine-bay unit is mounted horizontally and sealed against moisture. Before opening, wipe away dust and debris from the lid edges to prevent contamination. The underside of the lid contains a detailed layout map; keep it visible while working to maintain correct orientation.
Access steps for the engine compartment unit:
- Ensure engine is off and cooled down
- Disconnect negative battery terminal if handling high-current circuits
- Press both lid clips inward
- Lift the cover vertically without twisting
- Place the cover upside down to keep the label readable
Clearance around the engine-side housing is tight near intake ducting; moving the air intake tube slightly aside (without disconnecting it) creates more working room. Avoid placing tools on top of the battery to prevent accidental short circuits.
Reinstallation requires precise alignment: match the cover edges with the housing grooves, then press firmly until both clips snap into place. For the interior panel, align the top tabs first and push evenly across the surface until it sits flush with the dashboard trim.
