Locate the main power center under the dashboard on the driver’s side to check critical circuits. Ensure the ignition is off and the battery is disconnected before handling any connections.
Identify each connection point by the color-coded terminals and numbered slots. This allows quick recognition of high-current circuits such as headlights, ABS, and climate control systems without trial and error.
Use a digital multimeter to verify voltage at each terminal before removing or replacing components. Typical slots handle 10A to 40A loads, while heavy-duty relays may carry 50A or more directly from the battery line.
Inspect the holder and connectors for corrosion or melting signs. Even minor heat discoloration can indicate a stressed circuit that may fail under load, potentially affecting engine management and auxiliary systems.
Label all removed components during maintenance to maintain proper configuration. Mixing up relay or terminal positions can lead to malfunction of critical electrical functions such as door locks, interior lighting, or dashboard instruments.
Electrical Panel Guide for Your SUV
Access the primary panel by opening the compartment on the driver’s side under the dash. Disconnect the battery to prevent accidental shorts while inspecting circuits and relays.

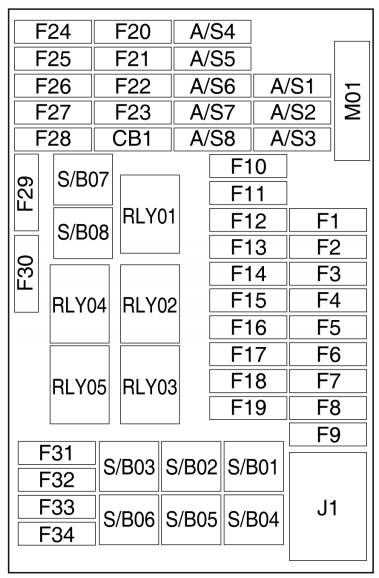

Identify each terminal and slot using the color coding and labeling printed inside the cover. High-current connections such as starter, ABS, and HVAC circuits are located near the main power feed.
Check for any corrosion or heat damage on connectors. Darkened or melted terminals indicate overloaded circuits that need immediate attention before replacing relays or terminals.
Use a multimeter to test voltage at each connection point. Standard slots carry 10A–40A, while larger relay terminals may handle 50A–60A directly from the battery line.
Map critical circuits for headlights, wipers, and ignition components. Marking these points prevents misplacement during maintenance and ensures proper reconnection.
Inspect all relays and holders for tight fit. Loose contacts can create intermittent faults affecting engine sensors, door locks, or dashboard functions.
Replace only compatible components rated for the specific amperage of each circuit. Using lower-rated terminals or relays can cause overheating and system failure under load.
Maintain a log of all inspections, replacements, and tests. This provides a reference for troubleshooting future electrical issues and helps maintain consistent vehicle performance.
Locating the Primary Power Distribution Center
Begin by opening the engine compartment on the driver’s side and inspecting the area near the battery and main wiring harness. The main power distribution center is typically mounted close to the firewall for easy access to high-current circuits.
Identify the main terminals by their thick red cables that connect directly to the battery and starter relay. These points supply power to critical modules including ignition, ABS, and electronic control units.
Check the outer cover for labeling that indicates circuit groups. Standard sections handle low- to mid-amperage lines for lighting and auxiliary components, while heavy-duty terminals support high-demand systems.
Follow these steps to locate connections:
- Trace the main positive battery cable to the largest mounted panel.
- Look for labeled high-current terminals for starter and HVAC.
- Inspect the grounding straps leading to the chassis to ensure secure return paths.
Measure voltage at each terminal with a multimeter. Confirm 12.2–12.8 volts at rest and 13.8–14.5 volts with the engine running. Any significant drop indicates a connection issue.
Check for physical damage such as melted insulation, corrosion, or loose connectors. These conditions often cause intermittent faults in lighting, ignition, or electronic modules.
Secure all fasteners and replace any worn terminals with rated replacements. Improper connections at the main distribution center can lead to blown circuits or reduced system performance.
Maintain a reference chart for all connections and terminal assignments. Recording the location and rating of each line simplifies future troubleshooting and prevents accidental miswiring during maintenance.
