Access the power distribution panel by opening the front compartment on the driver’s side. Ensure the ignition is off and all electronic loads are disconnected before handling any connectors or relays to avoid short circuits or damage.
Check each circuit rating carefully using a multimeter or labeled pull tabs. Identify critical lines such as lighting, starter, and HVAC circuits first, noting their amperage to prevent overloading during replacements or inspections.
Document connections and positions before removing any modules. Use a small camera or sketch to record locations of relays and wire harnesses. This step simplifies reassembly and avoids misrouting which could lead to operational failures.
Inspect terminal contacts and relays for corrosion, loose fittings, or discoloration. Apply dielectric grease sparingly on high-current contacts to improve conductivity and reduce heat build-up during heavy use.
Label auxiliary circuits such as trailer power, auxiliary lighting, and engine sensors. Marking these connections helps maintain organized service records and speeds up troubleshooting in case of electrical faults.
Electrical Panel and Circuit Guide for Full-Size Pickup
Locate the primary power center behind the main compartment on the driver’s side. Label all relays and connectors before disconnecting any wires. High-amperage circuits such as ignition, starter, and cooling fans should be tested individually with a multimeter to verify continuity and correct amperage rating.
Map auxiliary lines including lighting, trailer connections, and cabin electronics using the provided tabs on each relay.
- Check for corrosion or heat damage at each terminal
- Apply protective grease on critical contacts
- Ensure all clips are fully seated to prevent intermittent faults
Documenting the circuit layout aids future troubleshooting and prevents miswiring during component replacements or upgrades.

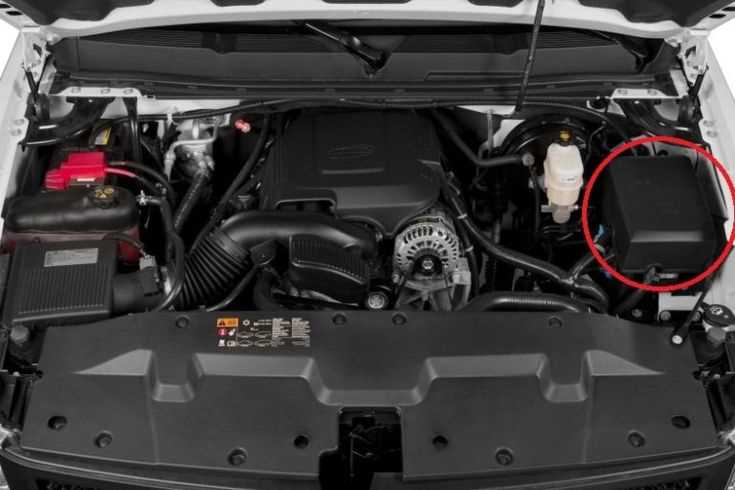

Locate the Primary Power Distribution Center
Access the main energy hub on the passenger side of the engine compartment by releasing the securing latch. Identify all high-current terminals and verify that connections are clean and tightly seated to avoid voltage drops. Components such as the starter relay, alternator input, and main circuit lines should be visually inspected for signs of overheating or loose fittings.
Use a multimeter to test each relay output for correct voltage and continuity. Mark each circuit with temporary tags before detaching connectors to maintain accurate routing during reassembly. This ensures critical systems like lighting, climate control, and power seats remain functional after maintenance.
Check the surrounding wiring harness for abrasions or melted insulation, particularly near sharp edges or heat sources.
- Clean terminals with a contact brush
- Apply dielectric grease on exposed connections
- Secure loose cables with clips or ties
Routine inspection of the primary distribution center prevents unexpected shorts and extends the life of all connected electronic modules.
