Access the panel under the hood near the battery first; this compartment contains high-amperage links for starter, cooling fans, and charging circuits. A second module sits inside the cabin, typically on the driver’s side, behind a trim cover. Always match amperage values printed on each element with the factory chart–installing a higher rating risks wiring damage, while a lower one leads to repeated interruptions.
Use the cover legend as a primary reference: it lists circuit assignments such as fuel pump, ignition coils, HVAC blower, and infotainment. If the lid is missing or unreadable, consult a service manual that specifies slot numbering and color-coded ratings. Pay attention to mini and micro blade formats–mixing sizes leads to poor contact and intermittent faults.
For diagnostics, probe each position with a test light or multimeter while the circuit is loaded. A visible break in the metal strip indicates failure, but voltage drop testing reveals hidden issues like oxidized terminals. Clean contacts with electrical cleaner and ensure firm seating; loose fitment causes heat buildup and sporadic power loss.
When tracing a non-working system, identify its supply path: relay control, main feed, and ground point. Many accessories share a common feed, so a single blown protector can disable multiple functions. Label each cavity before removal during troubleshooting to avoid misplacement, especially in dense panels with similar ratings.
Electrical panel layout and circuit mapping for mid-size GM crossover
Locate the main power distribution unit under the hood near the battery and a secondary cabin panel on the passenger side to quickly identify circuit protection elements and relay positions. Use the cover legend as a reference for slot numbering and match it with service manual tables to verify amperage ratings. For rapid diagnostics, pull suspected links with a plastic extractor and inspect for breaks or discoloration. Typical assignments include lighting circuits, HVAC control, fuel pump relay, infotainment system, and ignition-related protection. Always disconnect the negative terminal before handling components to avoid short circuits.
Interior compartment slots are arranged in rows with clearly marked identifiers, which correspond to functions such as power windows, seat adjustment, and accessory outlets. Under-hood configuration includes higher-capacity elements for engine management and cooling systems. When replacing a blown unit, install one with identical rating; higher values risk wiring damage. Use a multimeter to confirm continuity if visual inspection is inconclusive. Keep a printed chart in the glove compartment for quick reference and label any custom additions to prevent confusion during future maintenance.
Location of All Fuse Boxes in the 2010 Chevy Traverse and How to Access Them Safely

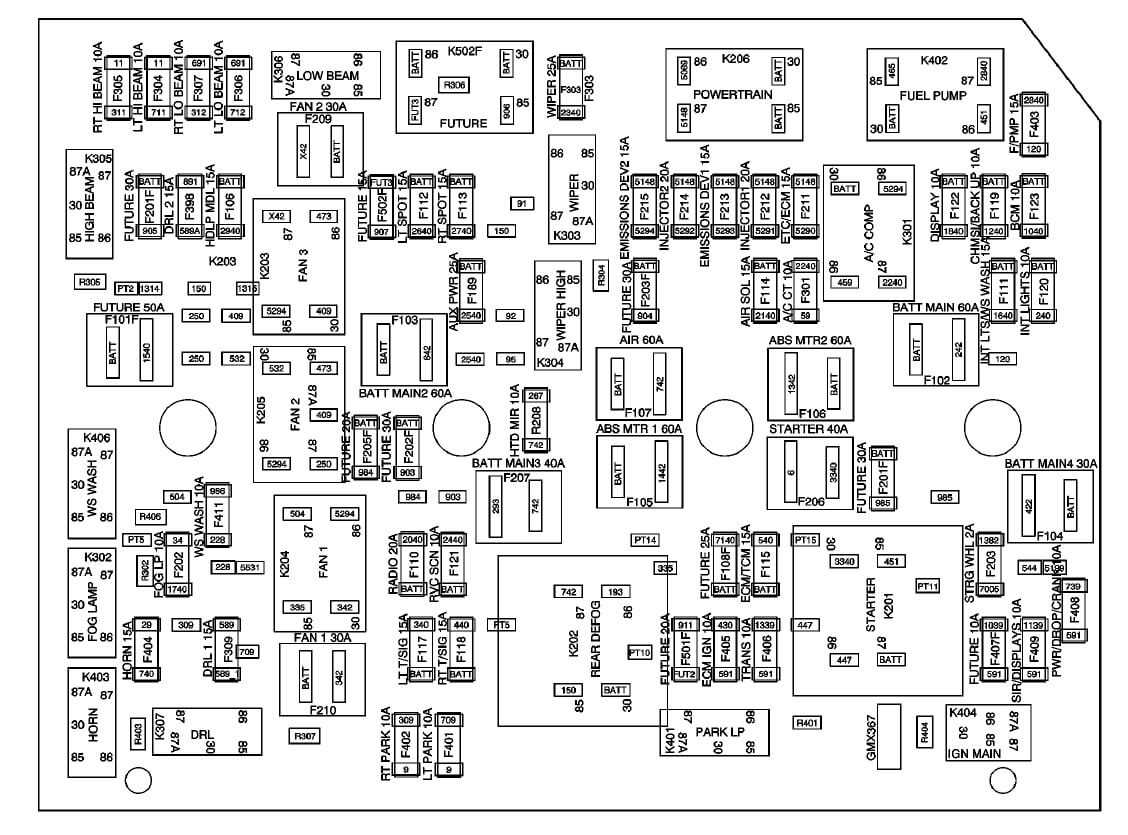

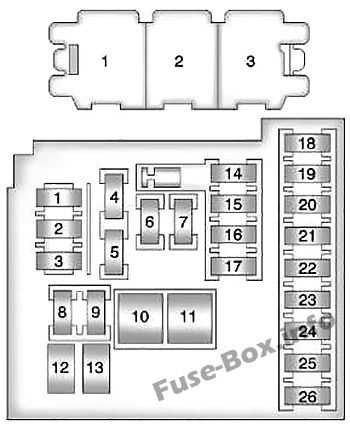

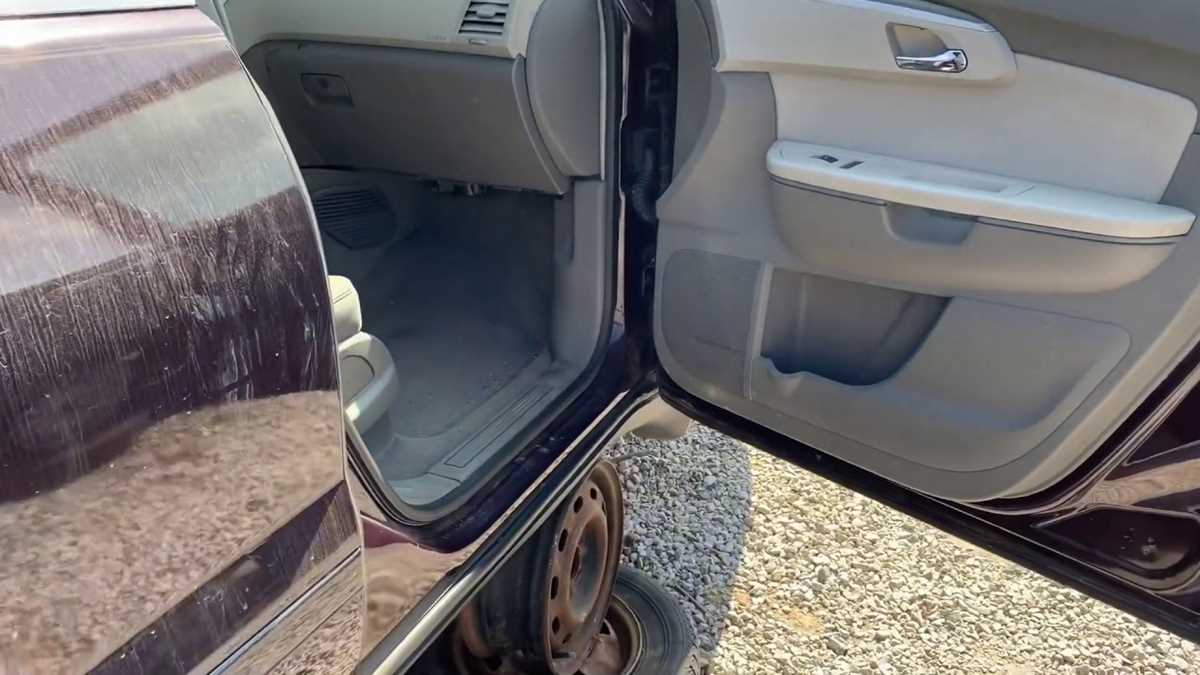

Check three main power distribution units: one under the hood near the battery on the driver’s side, one beneath the dashboard on the passenger side, and an additional rear compartment unit located behind a trim panel in the cargo area on the driver’s side. Under-hood module is protected by a snap-on cover; release the side clips and lift it straight up. The interior panel requires opening the passenger door and removing a small side cover from the dashboard edge. The rear electrical center sits behind a removable plastic panel–pull gently from the notch to expose it.
Before touching any electrical component, disconnect the negative battery terminal to prevent short circuits. Use a plastic trim tool instead of metal objects when prying covers to avoid damaging clips or causing sparks. Work with dry hands and keep the ignition off; some circuits remain live and can trigger unexpected responses. When removing a relay or fuse, pull straight out using a dedicated extractor tool stored in the engine compartment unit. After inspection or replacement, ensure each component is fully seated and all covers are securely reinstalled to protect against moisture and debris.
