Check the primary relay and circuit panel located under the steering column on the driver’s side; this is the fastest way to identify the correct slot responsible for lighting, ignition, or auxiliary systems. The internal chart printed on the plastic cover often differs slightly from factory manuals, so verify amperage values directly on each slot before replacing any protective element.
The cabin-mounted distribution unit typically contains mini blade protectors rated from 10A to 30A, each assigned to systems such as power windows, dashboard illumination, and climate control. For example, the slot handling the radio and interior lighting usually operates at 15 amperes, while the HVAC blower circuit often requires 25–30 amperes. Using an incorrect rating can lead to repeated failures or overheating of wiring.
Under the hood, a secondary power distribution center manages high-load components like the starter motor, fuel pump, and cooling fans. These positions rely on maxi-type protective links ranging from 40A to 60A. When diagnosing engine-related electrical faults, inspect this compartment first, as corrosion or loose contacts in this area frequently cause intermittent startup issues.
Each slot is numbered sequentially, but numbering orientation may vary depending on production batch. Align the numbering with the molded indicators along the panel edge rather than relying on assumed left-to-right order. For accurate troubleshooting, trace circuits using color-coded wiring: yellow for constant power, red for switched ignition, black for grounding. This approach reduces guesswork and speeds up identification of faulty lines.
If repeated failures occur in the same slot, do not simply replace the protective element–inspect connected devices for short circuits or excessive current draw. Pay particular attention to aftermarket accessories, as improper installation often overloads standard electrical channels.
2006 Chevy Express Van Fuse Box Diagram: Detailed Practical Guide
Locate the primary electrical panel under the dashboard on the driver’s side and verify each circuit using the label printed on the cover before removing any protective element. For rear systems, check the secondary panel positioned near the engine compartment on the left side; this section typically controls lighting, cooling fans, and power distribution lines.
Use a test light or multimeter to confirm whether a blown protective link is the cause of failure instead of relying on visual inspection alone. Hairline breaks inside the metal strip are common and not always visible. Replace only with the same amperage rating; installing a higher-rated component risks wiring damage and overheating.
Key circuit assignments inside the cabin panel usually include:
- 15A – radio system and interior lighting
- 20A – power outlets and auxiliary sockets
- 10A – instrument cluster and warning indicators
- 25A – windshield wipers and washer pump
- 30A – climate control blower motor
Under-hood panel distribution differs slightly and handles higher loads. Typical allocation includes ignition system supply, fuel pump relay, ABS module, and engine cooling. Always disconnect the battery before accessing this section to avoid short circuits or accidental relay activation.
If multiple systems fail simultaneously, inspect shared grounding points rather than focusing only on protective elements. Corroded ground connections near the chassis frame or battery terminal often mimic multiple electrical faults. Clean contacts with a wire brush and apply dielectric grease to prevent repeat issues.
Keep a printed layout of the panel configuration inside the glove compartment for quick reference during roadside troubleshooting. Mark frequently replaced elements and note any modifications made to the electrical system, such as aftermarket accessories, which may alter original circuit assignments.
Exact location of interior and engine compartment fuse boxes in the 2006 Chevy Express van
Open the driver-side door and look directly at the left end of the dashboard–remove the small rectangular cover facing the door seal to access the cabin electrical panel. The cover snaps off without tools; a flat plastic trim tool can help avoid scratches. This position keeps the panel hidden when the door is closed but immediately reachable when opened.
Inside the cabin unit, components are arranged in tight vertical rows. The upper section sits slightly recessed, so tilt your head downward to read labels clearly. A small flashlight improves visibility because ambient light from the door opening is often insufficient.
If access feels restricted, slide the driver seat fully backward. This creates enough space to kneel beside the door frame and work comfortably with both hands. Avoid pulling wires; grip only the plastic bodies when removing elements.
Engine compartment location

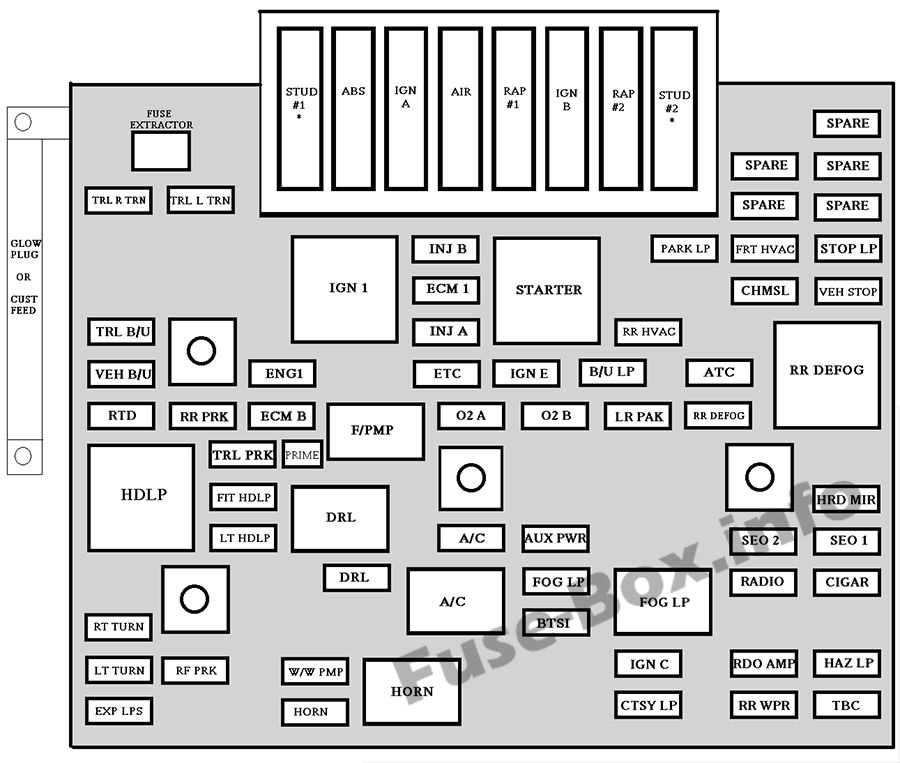

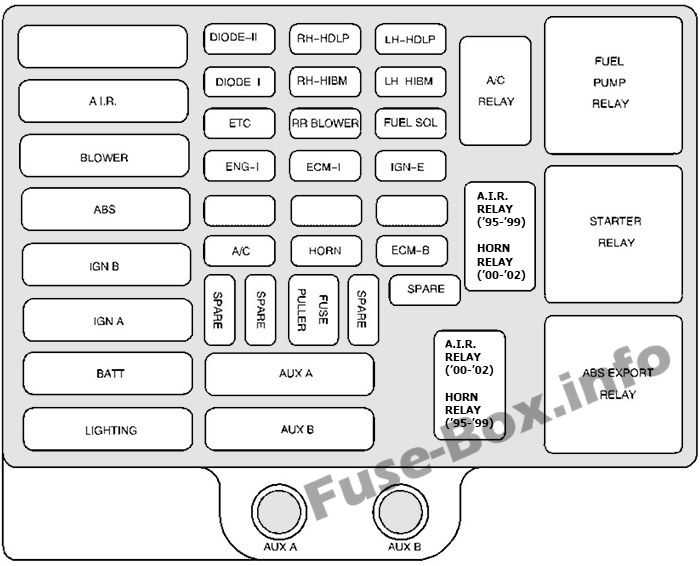

Lift the hood and move to the driver-side front corner near the battery. The under-hood power distribution center sits just behind the headlight assembly, enclosed in a black rectangular housing with a clip-on lid. Release the retaining tabs on both sides and lift straight upward.
The lid underside contains molded labeling aligned with each slot. Keep the cover nearby while working to cross-check positions quickly. The housing is mounted on a bracket fixed to the inner fender, making it stable but slightly angled toward the engine.
For better reach, stand slightly to the side rather than directly in front of the grille. This angle reduces obstruction from the radiator support and allows a clearer line of sight into the compartment.
Access tips and positioning
When working in colder conditions, plastic clips on both interior and engine-side panels become less flexible; apply gentle pressure to avoid cracking. After servicing, press each cover firmly until an audible click confirms proper seating, preventing moisture or dust intrusion.
