Open the driver side dashboard panel to access the cabin power distribution unit, where most low-voltage circuits for lighting, audio, and control modules are grouped. Remove the cover and check the printed circuit chart inside to match each slot with its assigned system. Verify amperage ratings before removing any component.
Use the numbering printed near each slot to identify circuits such as power windows, HVAC controls, and instrument cluster. Follow the layout carefully to avoid disconnecting unrelated systems during inspection or replacement.
If labels are worn or missing, test each slot using a multimeter. Activate specific features like lights or radio while probing contacts to determine circuit function. Create a clear reference list and store it inside the panel cover for faster troubleshooting later.

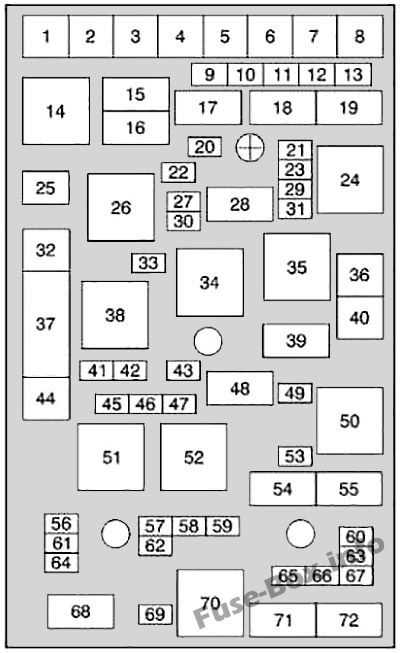

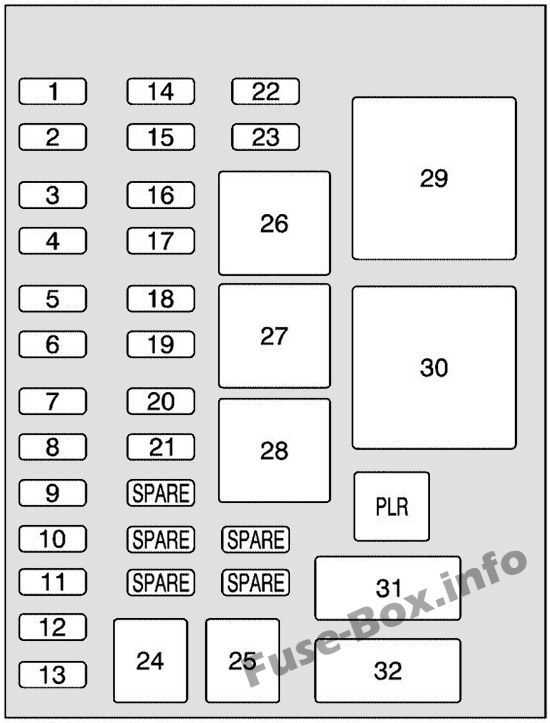

2003 Chevy Trailblazer Interior Fuse Box Diagram with Panel and Circuit Layout
Remove the side dash cover on the driver side to access the cabin power distribution panel and use the printed layout inside to identify each slot connected to systems like lighting, radio, and climate control.
Match slot numbers with circuit functions listed on the cover insert. This mapping allows quick identification of lines controlling power windows, instrument cluster, and HVAC controls without disconnecting multiple components.

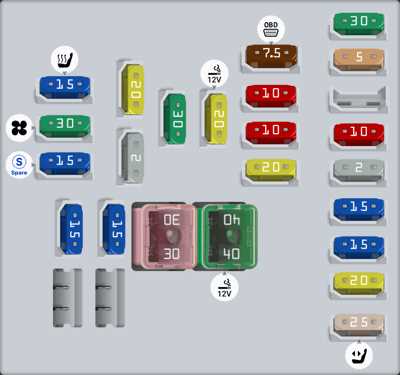

Check amperage ratings stamped on each blade insert and compare them with the panel chart. Typical values range from 10A to 30A depending on load, with higher ratings assigned to motors and control modules.
Use a multimeter to test voltage across contacts while activating specific features such as interior lights or audio system. Equal readings on both sides confirm proper operation, while a drop indicates a failed element.
Inspect terminals for corrosion or loose connections. Heat damage may appear as discolored plastic or warped slots, signaling overload or poor contact within the panel.
Create a clear reference list after verifying each circuit and store it inside the cover. This reduces diagnostic time and helps isolate electrical faults quickly during future maintenance.
Exact Interior Fuse Box Location in 2003 Chevy Trailblazer Cabin Area
Locate the cabin power panel on the driver side dashboard edge, directly facing the open door; access is possible only when the door is fully opened.
Grip the small notch on the plastic cover and pull it straight out to release the retaining clips, revealing a vertical array of blade-type links and labeled circuits behind it.
Position details
- Mounted on the left dash side panel near steering column
- Aligned vertically with clear slot numbering
- Protected by a snap-on trim cover
Move the seat backward and tilt the steering wheel up for better reach. Confirm correct placement by checking the label chart attached to the cover, which lists circuits for cabin lighting, audio system, and control modules.
