Check the panel cover label and verify each slot number with its assigned circuit before removing any protective link, then match the amperage rating such as 10A, 15A, 20A, 30A, or 40A to avoid damage to wiring and control modules.
The interior panel on the driver side dashboard controls systems like power windows, lighting, radio, and instrument cluster, while the engine compartment unit near the battery handles high current loads including cooling fan, ABS, and ignition circuits.
Use a puller tool to remove each element and inspect the metal strip inside; a visible break or burn mark confirms failure. If no damage is visible, test continuity with a multimeter to ensure current can pass through.
Repeated failure in the same position usually indicates short circuits, damaged insulation, or faulty connected components. Inspect wiring harnesses and connectors carefully before installing a replacement with the same rating.

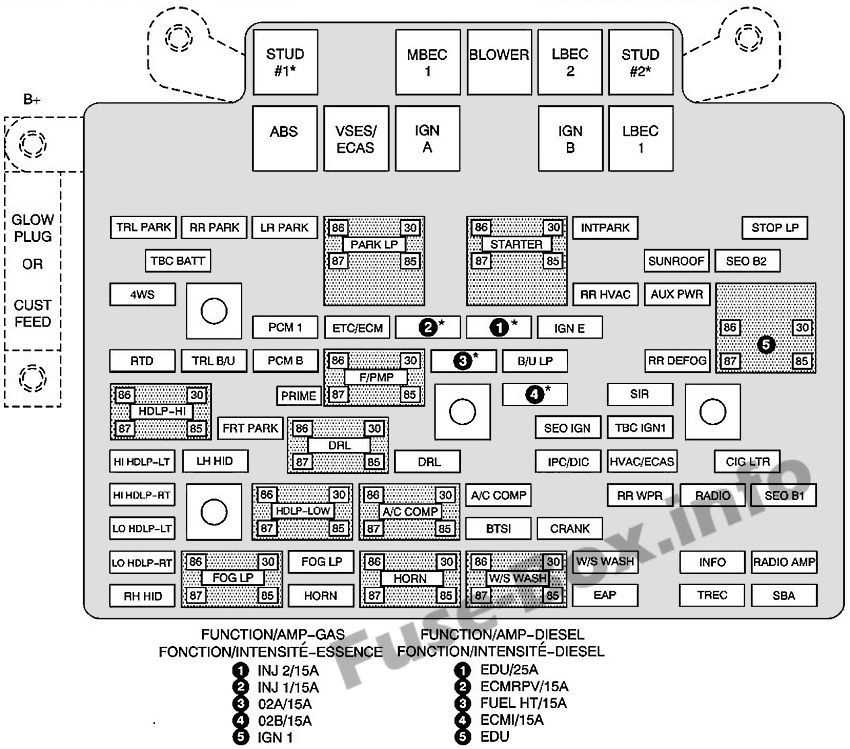

2003 Chevy Tahoe fuse box diagram and circuit identification guide
Match each slot number with the legend on the panel cover and confirm the amperage marking such as 10A, 15A, 20A, 30A, or 40A before removal to avoid damaging wiring or control modules.
The interior panel on the driver side manages systems like instrument cluster, radio, interior lighting, and power accessories, while the under hood unit near the battery supplies high load circuits including cooling fan, ABS, and ignition.
Each position corresponds to a numbered cavity tied to a specific circuit, allowing quick identification of faults without removing multiple components unnecessarily.
Understanding circuit distribution
Power enters through main supply lines and is distributed across grouped slots, where a single protective element may serve multiple systems; loss of several functions at once often points to one failed component in a shared circuit.
Check both sides of each slot with a multimeter; voltage present on one side only indicates a broken internal strip, while no voltage suggests an upstream supply issue or relay failure.
Inspection and replacement tips
Remove elements using a puller tool and inspect for burn marks, melted plastic, or loose контакты; clean terminals and ensure a tight fit during installation to maintain stable current flow.
Repeated failure in the same location usually signals short circuits, damaged wiring insulation, or overloaded aftermarket equipment, requiring inspection beyond simple replacement.
Fuse panel locations in cabin and engine bay with access instructions
Locate the interior panel on the driver side dashboard behind a removable cover; pull the panel door outward from the notch to expose the circuit slots and labels.
Turn off ignition and disconnect the negative battery cable before touching any terminals to prevent short circuits or accidental contact with live connections.
Cabin panel access
The interior unit sits low near the kick panel and may require a flashlight for visibility; use the puller tool stored inside the cover to remove components without damaging surrounding slots or contacts.
Keep track of each position during removal, since incorrect placement can affect systems like lighting, audio, and power accessories.
Engine bay panel access
Open the hood and find the main power distribution center near the battery; release the retaining clips and lift the cover straight up to access high current circuits and relays.
After service, check the cover seal and secure it firmly to protect internal components from moisture and debris, which can cause corrosion and unstable electrical operation.
