Check the main access point under the dashboard near the steering column to locate the electrical panel quickly. Most circuits for interior lights, radio, and climate control are grouped here for easy identification.
Use the numbered chart inside the cover to match each circuit to its assigned slot. This ensures accurate replacement of blown connectors and prevents accidental overload of adjacent wiring.
Inspect each connector visually for discoloration or corrosion. Clean terminals with a contact cleaner before reinserting components to maintain consistent current flow and avoid intermittent failures.
When replacing a faulty element, select the exact amperage rating indicated on the panel. Installing a higher-rated component can damage the wiring, while a lower-rated one may blow immediately under normal load.
Keep a small tester or multimeter on hand to verify continuity across terminals after any swap. This step confirms that circuits are restored correctly and reduces the chance of electrical shorts or erratic operation.
Electrical Panel Layout and Slot Identification
Access the central power panel located beneath the dashboard on the driver’s side to inspect or replace components. Each terminal is numbered and corresponds to circuits for lights, ignition, and auxiliary systems. Follow the printed chart on the panel cover to identify each slot before making any adjustments.
Maintain proper handling of connectors and use a tester for verification:
- Check continuity across each terminal before reinserting components.
- Replace only with connectors rated for the specified amperage to prevent overheating.
- Inspect for corrosion or discoloration and clean contacts with a non-conductive cleaner.
- Document any changes to track which circuits have been serviced or replaced.
Locate the Electrical Panel in 2001 Vehicle Model

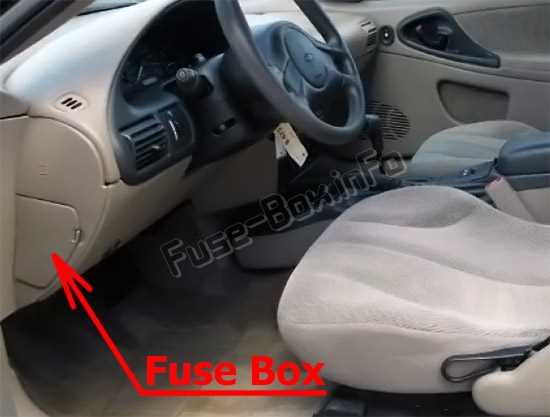

Check under the driver’s side dashboard near the steering column for the main power access compartment. It is secured with a snap-on cover that can be removed by hand.
Some models have an additional panel in the engine compartment close to the battery. This secondary panel handles high-amperage circuits such as the radiator fan, headlights, and ignition relays.
Look for a rectangular plastic enclosure marked with numbers and symbols. These markings correspond to individual slots and help identify which circuit controls which system.
Use a flashlight for better visibility. Connectors and terminals can be recessed, making it difficult to distinguish between adjacent positions without proper lighting.
Confirm that the vehicle is off before accessing terminals. Disconnecting or adjusting live connectors can cause sparks, short circuits, or blown elements.
Consult the label inside the cover to cross-check each slot with its designated function. Keep a small notepad to mark which components need replacement or inspection.
For panels located in the engine bay, avoid touching surrounding metal parts with tools to prevent grounding issues. Secure the hood and position yourself safely away from hot engine components.
After locating all panels, inspect for signs of wear or heat damage. Darkened or melted plastic around connectors signals the need for immediate replacement to maintain reliable operation.
