Check the interior panel near the driver’s side kick area first, as this is where most circuit protectors are grouped; remove the cover carefully and use the printed legend on the backside to identify each slot before pulling anything out. For under-hood access, open the engine compartment and locate the secondary distribution module mounted close to the battery–this unit handles high-current systems such as cooling fans and ignition feeds.
Each slot corresponds to a specific amperage rating, typically marked with numbers like 10, 15, 20, or 30, and color-coded for quick recognition. Replacing a burned element requires matching both the rating and physical size; installing a higher-rated component risks wiring damage. If a repeated failure occurs, inspect connected circuits such as lighting harnesses, radio wiring, or blower motor connectors for shorts or corrosion.
The cabin panel usually includes assignments for interior lighting, dashboard instruments, cigarette lighter socket, and audio system, while the engine compartment unit supports fuel pump relay, starter circuit, and anti-lock braking system. Use a test light or multimeter to confirm power presence on both sides of each contact rather than relying on visual inspection alone, as micro-fractures in the metal strip are not always visible.
Access diagrams printed in service manuals provide exact slot numbering and circuit names; align these with the physical layout by orienting the panel exactly as installed in the vehicle. Pay attention to relay positions, since they often share the same housing and can be mistaken for standard protection elements despite serving switching functions rather than overload protection.

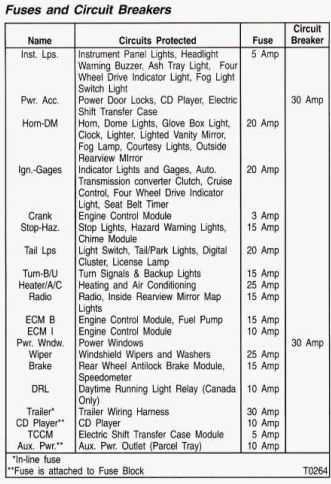

1998 Chevy Astro Van Fuse Box Diagram: Detailed Guide
Locate the electrical panel under the dashboard on the driver’s side and match each circuit by amperage and label before replacing any element. Use the lid legend as a baseline, but verify assignments manually because factory markings may differ between trim levels. For quick identification, pull one component at a time and check the corresponding system response (lights, wipers, radio) to avoid confusion.
Key circuit allocations typically follow a structured pattern, allowing faster troubleshooting:
- 10A–15A slots: interior lighting, dashboard indicators, radio memory
- 20A–25A slots: windshield wipers, power outlets, HVAC controls
- 30A and above: power windows, blower motor, rear defogger
If a system fails, inspect the related slot using a multimeter rather than visual inspection alone. A burned strip may appear intact while lacking continuity. Always compare with a known working slot of the same rating to confirm diagnosis. When replacing, match amperage exactly–using a higher rating risks wiring damage, while a lower one may fail under normal load. Keep spare inserts in multiple ratings (10A, 15A, 20A, 30A) stored in the cabin for immediate access during roadside issues.
For persistent faults, trace the circuit beyond the panel: check grounding points near the kick panel, inspect connectors behind the dashboard, and verify relay operation in the engine compartment distribution center. Document each step during testing to isolate intermittent failures, especially in older wiring prone to corrosion or loose contacts.
Exact location of interior and engine bay fuse boxes in the 1998 Chevy Astro Van
Check the driver-side lower dashboard first: the interior power distribution panel is mounted behind a plastic cover at the far left edge of the dash, directly facing the door when it is open. Pull the cover outward using the small notch along its edge; no tools are required, but access is tight, so tilt your head under the steering column to see the rows clearly.
This cabin-mounted unit sits just above the kick panel and slightly forward of the parking brake pedal assembly. Wiring harnesses run vertically behind it, so avoid pulling too far when inspecting connections. Illumination is poor in this area; a handheld light helps identify each slot and label.
Passenger compartment placement details
The panel aligns roughly with the left air vent height, but lower by about 20–25 cm. When seated, it’s outside your direct line of sight, which explains why many miss it on first inspection. The cover typically includes a molded legend on the inside surface indicating circuit assignments.
For the engine compartment, lift the hood and move toward the driver-side fender. The main electrical center is positioned near the battery, slightly rearward and closer to the firewall. It is enclosed in a rectangular black housing with a snap-on lid; press the side tabs to release it.
Inside this under-hood housing, components are arranged in a grid pattern with larger relays grouped toward the outer edge nearest the fender. Clearance around the battery can be limited, so shifting cables slightly may improve access without disconnecting anything.
Engine bay access notes
The housing is mounted on a bracket secured to the inner fender, keeping it stable during vibration. Heat exposure from the engine means the plastic cover may feel rigid; apply steady pressure rather than forceful prying when opening it.
Both panels–interior and engine-side–are positioned to minimize wiring length: one near driver controls, the other close to the primary power source. Knowing these exact spots reduces time spent searching and prevents unnecessary removal of unrelated trim pieces.
