Check the interior power distribution panel first and match each slot to its amperage rating before replacing any blown link. Use only the specified rating printed on the cover or service chart, as installing a higher value can damage wiring and connected components.
On this generation of full-size pickup, the main panel is typically located beneath the dashboard on the driver side, while a secondary relay and protection block sits in the engine compartment. Lighting, HVAC, radio, and instrument cluster circuits are usually grouped inside the cabin, whereas starting, charging, and cooling systems are routed through the under-hood section.
Each position is labeled with a short code tied to a specific system. For example, markings like “IGN,” “ACC,” or “ECM” indicate ignition feed, accessory power, and engine control circuits. If a system stops working, cross-check the label with the affected function and inspect the metal strip inside the protective element for breaks or discoloration.
Keep a small puller tool and spare links rated at 10A, 15A, 20A, and 30A in the glove compartment. Consistent failures point to wiring faults or failing components, not just a burned element, so trace the circuit if the issue repeats after replacement.

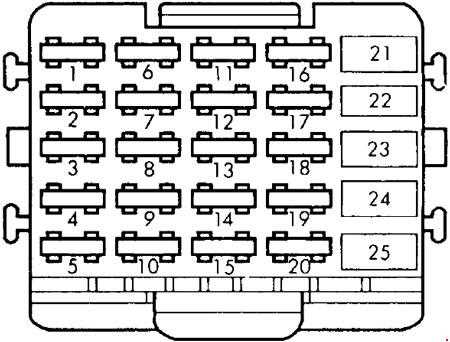

1993 Chevy 1500 Fuse Box Diagram and Component Layout
Locate the interior power panel under the driver-side dash and verify each slot using the printed legend before touching any circuit protection piece.
The cabin-mounted unit typically contains blade-style links arranged in horizontal rows, with amperage values ranging from 10A to 30A. Lower ratings are assigned to radio memory, dash illumination, and control modules, while higher ratings support blower motor and power accessories.
The engine compartment distribution block sits near the battery and includes larger protective elements along with relays. This section handles high-load systems such as cooling fans, fuel delivery, and charging circuits. Each relay is usually labeled on the cover with abbreviations like “F/PMP” for fuel pump or “A/C CLTCH” for compressor clutch.
Follow the layout map printed inside the cover to match slot numbers with circuit names. If the cover is missing, refer to service documentation where positions are listed in sequence, often starting from the top-left corner and moving row by row.
Connections inside the panel are fed through color-coded wiring harnesses. Orange wires often indicate constant battery power, while pink or red wires supply ignition-switched voltage. Ground paths are usually black and terminate at chassis نقاط near the mounting brackets.
Check the metal strip inside each protective element under good lighting. A clean break or darkened section indicates failure, while a fully intact strip confirms power continuity through that point.
Secure all components tightly after inspection, as loose seating can interrupt current flow and cause intermittent faults across multiple vehicle systems.
Under Dash Fuse Box Layout with Fuse Names and Amperage Ratings
Match each slot in the driver-side lower panel with its labeled function before replacing any protective element to avoid damaging connected systems.
The interior panel is arranged in rows with clearly marked abbreviations tied to vehicle functions. Common label groups include:
- IGN – ignition circuit supply
- ACC – accessory power line
- STOP – brake light circuit
- INST – instrument cluster and gauges
- RADIO – audio system and memory feed
Amperage values are printed on top of each blade unit and must be followed precisely. Typical ratings found in this panel include:
- 10A – dashboard lighting, warning indicators
- 15A – audio system, interior electronics
- 20A – wipers, signal system
- 25A–30A – heater blower and power windows
Positions are usually numbered from left to right, top to bottom. Use the cover legend or service sheet to identify exact placement. If the label is missing, trace wiring colors: orange wires indicate constant power, while pink lines are tied to ignition-switched circuits.
Insert each blade unit firmly until it sits flush with the panel surface. Loose contact points can interrupt current flow and lead to random loss of lighting, gauges, or accessory functions.
