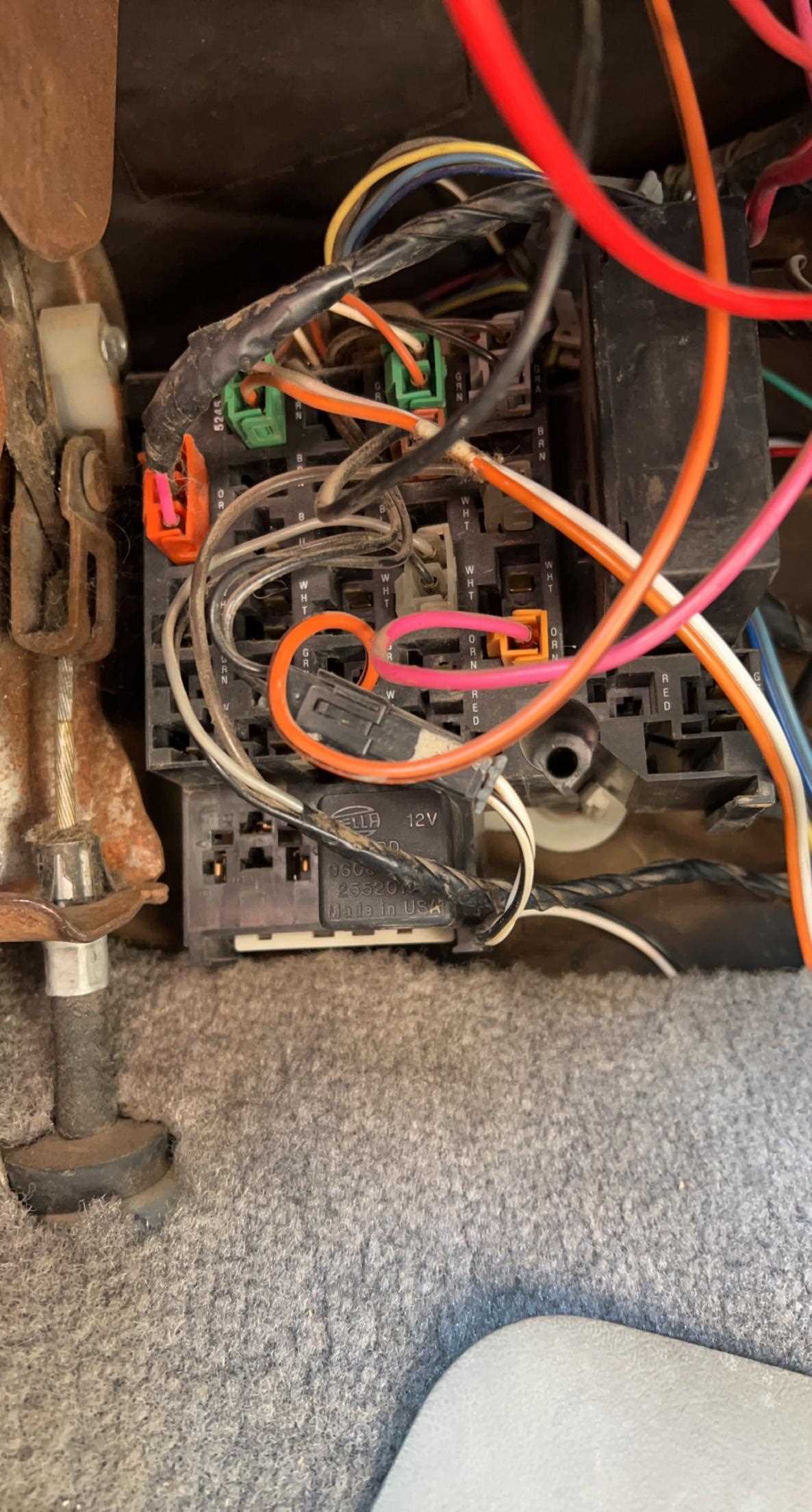

Access the main interior control unit under the driver’s side dashboard. Disconnect the battery before opening the cover to prevent accidental shorts while inspecting relays and protective components.
Each circuit slot is labeled with its amperage and assigned system, including headlights, engine controls, and interior accessories. Confirm the markings before removing or testing any unit to ensure correct replacement.
Replace worn or damaged elements with the exact rating specified on the panel. Using incorrect ratings can cause overheating, blown components, or intermittent system faults.
Inspect all terminals for corrosion or discoloration. Clean contacts with electrical cleaner to maintain proper connectivity and prevent failures in lighting, engine, and accessory circuits.
Electrical Panel Layout and Circuit Identification Guide
Access the interior control unit located beneath the driver’s side dashboard. Disconnect the battery before handling terminals or relays to avoid accidental shorts while inspecting the electrical pathways.
Top-row slots manage front lighting, turn signals, and indicator circuits, with ratings from 10A to 20A. Check each label carefully before removing a component to ensure correct replacement and avoid miswiring.
Middle and Auxiliary Circuits
Central slots cover HVAC controls, power outlets, and interior accessory circuits. Inspect terminals for corrosion or discoloration and clean contacts with an approved electrical cleaner to maintain consistent conductivity.
Relays and Testing
Relays controlling the starter, fuel pump, and cooling fan are positioned along the panel’s side. Test each relay with a multimeter or swap temporarily with a known working unit to confirm proper operation before reinstallation.
Accessing the Interior Electrical Compartment
Locate the control panel under the driver’s side dashboard near the kick panel. Ensure the ignition is off and disconnect the negative terminal of the battery before handling any terminals.
Remove the protective cover by releasing the two retaining clips. Handle the cover gently to prevent breaking the plastic tabs that secure it in place.
Check the surrounding area for any obstructing panels or trim pieces. Unscrew or unclip components carefully to gain unobstructed access to the control unit without damaging interior finishes.
Inspect the mounting screws of the electrical assembly and remove them using a properly sized screwdriver. Keep the screws organized to ensure proper reinstallation of the unit.
Pull the panel outward slowly, observing all connected wiring harnesses. Do not force the unit; strained wires can cause breaks or short circuits.
For deeper inspection or replacement, label each harness with tape and marker. This labeling prevents confusion when reconnecting circuits after testing or maintenance.
After completing inspection or maintenance, secure the panel back into its original position, reconnect all harnesses, tighten screws, and restore battery connection. Verify all interior electrical components function correctly before driving.
