Check the power distribution module located under the dashboard on the driver’s side for quick access to all circuits. Label each connector before removal to avoid misplacement and accidental short circuits.

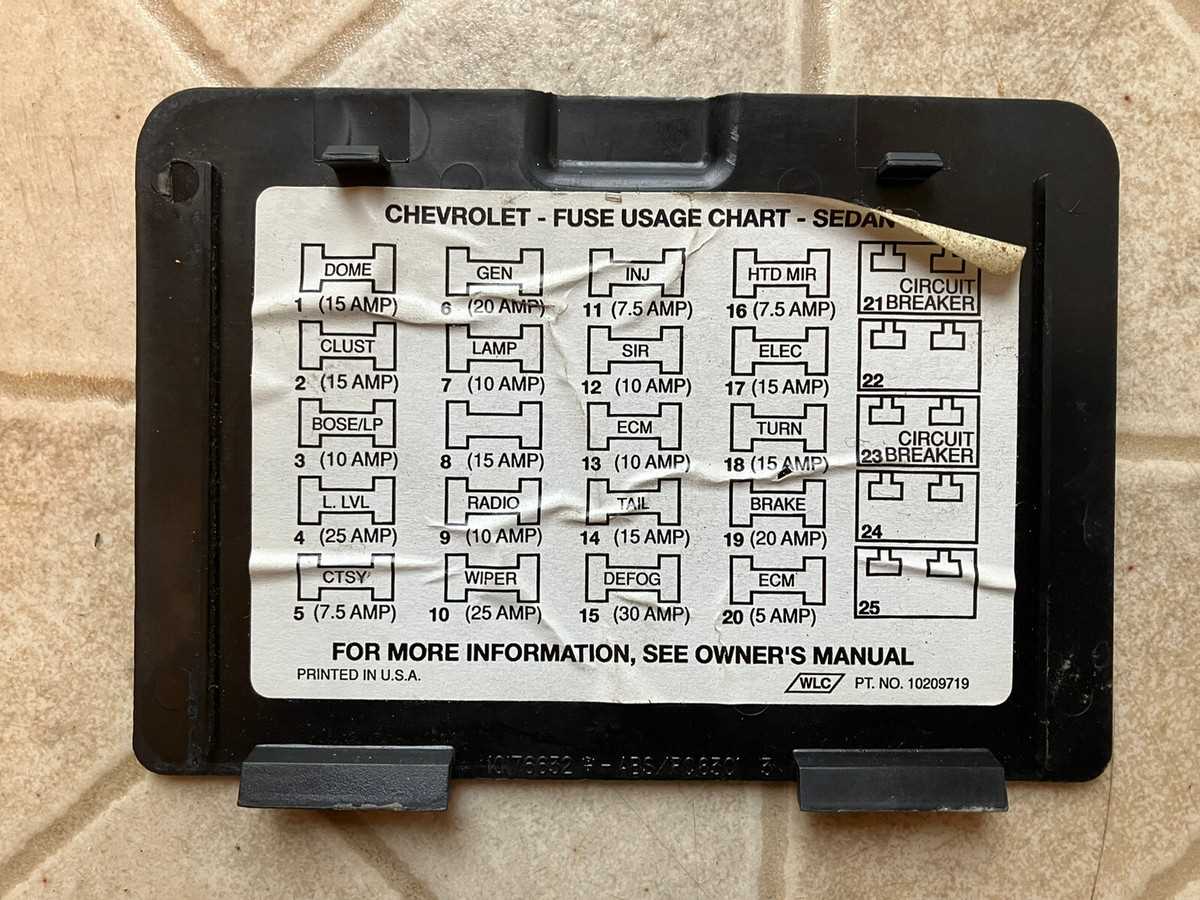

Refer to the wiring schematic printed on the cover to identify circuits controlling headlights, ignition, and climate controls. Use a multimeter to test individual links before replacing any components to ensure the issue lies within the module and not the wiring harness.
Keep a set of replacement blades rated for 10 to 30 amps on hand. Insert each replacement carefully to maintain proper contact and avoid bending the terminals, which can lead to intermittent failures or overheating.
Clean the terminals with electrical contact cleaner to remove corrosion and improve conductivity. Check each socket for signs of wear or heat damage before reconnecting the power to prevent unexpected electrical faults.
Accessing and Maintaining the Power Panel in Classic Sedan
Locate the electrical control unit beneath the driver’s side dashboard for direct access to all circuits. Disconnect the battery before handling any connections to prevent accidental shorts or sparks.
Identify each link using the printed layout on the panel cover. Mark each wire with tape or labels before removal to maintain proper connections and avoid miswiring critical systems like headlights or ignition.
Inspect terminals for corrosion or discoloration. Clean contacts with an approved electrical cleaner and a soft brush to restore conductivity and prevent intermittent power loss to essential components.
Keep a set of replacement blades rated between 10 and 30 amps accessible. Insert replacements carefully ensuring full seating of the metal prongs to avoid overheating or poor contact that can trigger electrical faults.
Test circuits individually using a multimeter before restoring full power. Check each function including interior lights, wipers, and horn to confirm all connections operate correctly and safely after maintenance.
Locating the Electrical Access Panel in Classic Sedan
Access the power distribution unit by opening the lower driver’s side panel beneath the dashboard. Remove any trim carefully to avoid breaking clips or scratching surfaces. The panel contains all primary circuits controlling lights, ignition, and auxiliary components.
Follow these steps to ensure correct identification:
- Slide under the steering column and look for a rectangular module with a snap-on cover.
- Check the metal retaining clips that secure the unit in place before attempting removal.
- Refer to the molded label on the cover for each circuit’s location to quickly pinpoint the system needing attention.
- Keep a flashlight handy to inspect dark corners and connectors for corrosion or damage.
