Locate the cabin-mounted power distribution panel beneath the driver-side dashboard and the engine compartment unit near the battery–these two modules control all primary circuits and must be checked first when diagnosing electrical faults.
The interior unit contains low-amperage links responsible for lighting, audio system, dashboard cluster, and accessory sockets. Each slot is marked with a numeric rating (typically 10A–30A) and a label referencing its circuit, such as IGN, ACC, HVAC. A missing or damaged link here often results in non-working interior electronics without affecting engine operation.
Under the hood, the second panel handles high-load components: cooling fans, fuel pump relay, ABS system, and ignition system. Ratings in this section range from 30A up to 60A or more. Always match the amperage exactly when replacing a burnt element; installing a higher-rated substitute increases the risk of wiring damage.
For accurate identification, rely on the printed legend inside the panel cover or a service manual specific to the 2001 model year. Circuit numbering follows a structured layout–rows grouped by system type–making it possible to trace faults quickly. Corrosion on terminals, loose seating, or heat discoloration are clear indicators that a slot requires attention beyond simple replacement.
01 SUV Electrical Panel Layout Guide
Locate the interior power distribution panel on the driver-side end of the dashboard and verify each circuit position against the labeled chart on the cover; if labels are missing, match amperage values precisely (e.g., 10A for interior lighting, 15A for radio system, 20A for power outlets) to avoid damage. Under the hood, the main relay and circuit block sits near the battery; inspect high-current slots such as 30A for cooling fans and 40A for ABS pump. Replace only with identical ratings and check for corrosion on terminals before inserting a new element.
Key Circuit Positions and Troubleshooting
Interior panel slots typically assign position #1–#5 to lighting and infotainment, #6–#10 to HVAC controls and auxiliary power, while higher positions handle safety systems like airbags and anti-lock brakes. In the engine compartment module, larger square relays control ignition and fuel pump operation–swap relays with identical part numbers from a non-critical system to test functionality. If multiple circuits fail simultaneously, inspect the main ground connection near the chassis rail and the positive cable junction block for loose fasteners or heat damage; voltage drop testing across suspect lines helps isolate faults quickly.
Exact location of interior and engine bay fuse boxes in 2001 Chevy Tahoe
Open the driver’s door and inspect the left side of the dashboard end panel–this is where the interior electrical panel is mounted, hidden behind a removable plastic cover that snaps into place. The cover can be pried off using fingers or a flat trim tool, revealing a grid of mini blade connectors arranged in rows. This cabin-mounted unit sits directly adjacent to the steering column area, slightly below air vent level, making it accessible without tools. For better visibility, tilt the steering wheel upward and use a flashlight, as labeling is small and positioned along the inner side of the panel cover.

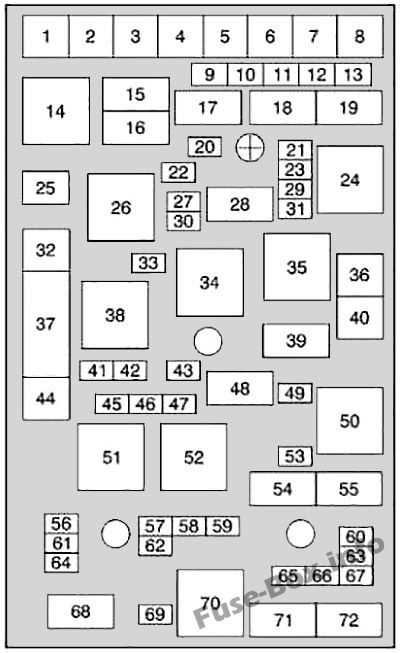

Under the hood, locate the power distribution center on the driver’s side, near the battery and close to the fender wall. It is a black rectangular housing with a clipped lid, designed to protect high-current circuits and relays. Release the retaining tabs on both sides to lift the cover; inside, you will find larger cartridge-style links and relay switches arranged in a structured layout. This compartment is positioned between the brake fluid reservoir and the battery tray, allowing direct access without removing surrounding components.
For quick identification and handling:
- Interior panel: driver-side dashboard edge, accessible with door open
- Engine compartment unit: driver-side, next to battery
- Cabin cover: snap-fit, no screws
- Under-hood lid: secured with side clips
- Use a flashlight for interior visibility due to tight spacing
- Always turn off ignition before accessing either panel
