Each onboard circuit is safeguarded by a small protective element placed within a dedicated panel, typically found under the dashboard, in the engine compartment, or inside the trunk. Accurate identification of each slot depends on the labeled scheme provided by the manufacturer, where symbols and numeric codes correspond to specific systems such as lighting, infotainment, climate control, and ignition modules. Misreading this layout can lead to incorrect replacements and unintended electrical faults.

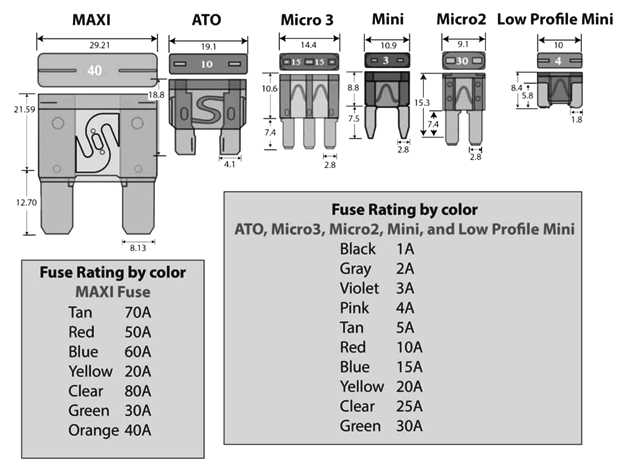

The arrangement usually follows a grid pattern with amperage ratings indicated by color and number. For example, red units often represent 10A, blue 15A, and yellow 20A, though variations exist depending on brand and model year. Cross-checking the rating before replacement prevents overheating and protects wiring from damage. Panels may also include relays, which are larger components controlling high-load circuits like fuel pumps or cooling fans.
Modern vehicles may feature multiple panels with separate схемы, including auxiliary blocks for advanced driver assistance systems. Consulting the exact layout for your specific model ensures correct diagnostics, especially when dealing with intermittent electrical issues. Manufacturers often place a simplified scheme on the panel cover, while a detailed version is available in the service manual with expanded descriptions and circuit paths.
When inspecting the panel, use proper lighting and avoid pulling components blindly. A plastic puller tool, often included in the panel, helps remove elements safely without damaging contacts. After replacement, verifying system functionality confirms that the issue was correctly addressed and not related to wiring or control modules.

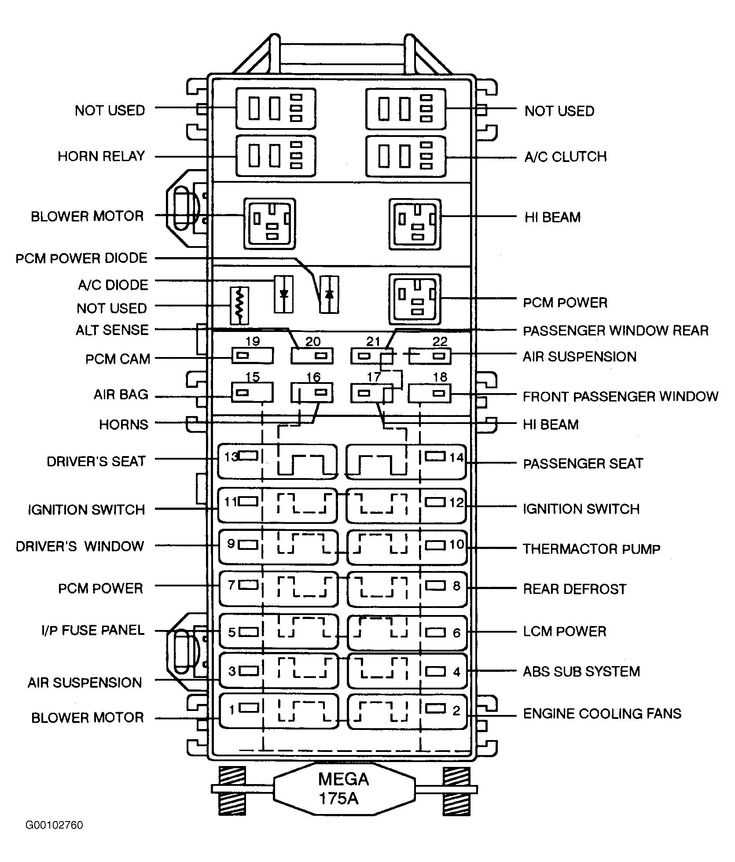

Car Fuse Diagram: How to Read and Use It for Troubleshooting
Locate the panel chart inside the glove box or cover lid and match each circuit label with its amperage rating before touching anything; this prevents installing an incorrect protective link that can damage wiring. Symbols typically group systems like lighting, HVAC, audio, and ignition, while numbers correspond to slot positions in the panel grid–use this mapping to identify the exact slot tied to a failed component. If a headlamp stops working, trace its label on the chart, find the matching slot number, then verify the rating (e.g., 10A, 15A) and inspect the metal strip through the transparent housing; a break indicates failure and confirms the circuit path without disassembling unrelated parts.
For fault isolation, compare multiple circuits that share the same rating but differ in function: if several devices fail simultaneously, check shared power feeds or relays referenced рядом with the panel layout rather than replacing links one by one. Use a multimeter set to continuity or voltage mode–probe both terminals of the suspected slot with ignition on; voltage on only one side signals a blown link, while no voltage on both sides points to upstream supply issues such as a relay or battery connection. Keep a small chart of common ratings (5A for control modules, 20–30A for motors) and never substitute a higher value, as this removes overcurrent protection and can overheat harnesses hidden behind trim.

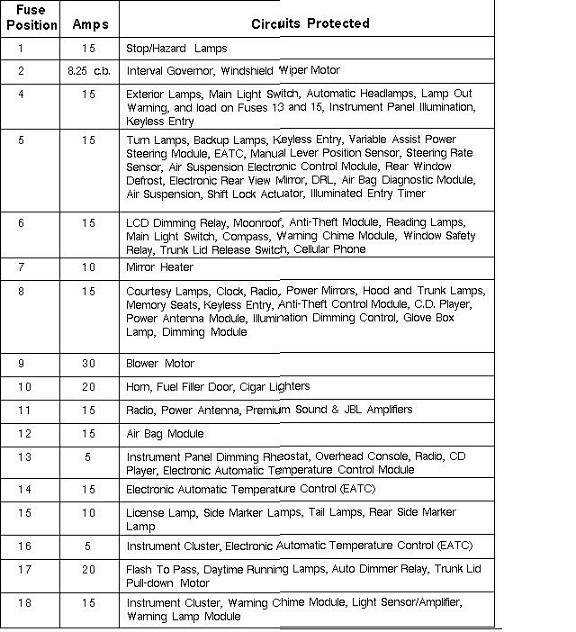

How to Identify Fuse Functions and Locations Using a Car Fuse Diagram
Check the legend printed on the cover of the electrical panel first; it usually maps each slot to a specific circuit such as headlights, blower motor, or infotainment. Match the alphanumeric codes (for example, F12 or R3) with the labels to understand what each protective element controls without guessing.
Use the amperage rating printed on each component to confirm its role: low values (5A–10A) typically correspond to sensors, interior lighting, or control modules, while higher values (20A–40A) are linked to power-demanding systems like window motors or seat heaters. This distinction helps avoid installing an incorrect replacement that could damage wiring.

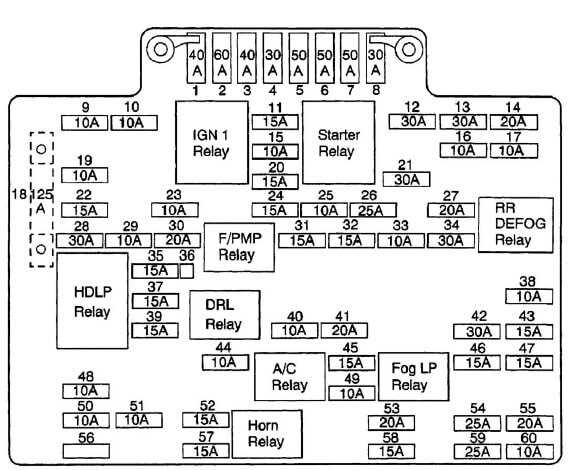

Locate multiple panel positions by consulting the layout reference: one block is often under the dashboard, another in the engine compartment, and sometimes a third in the trunk. Each block serves a different group of circuits, so identifying the correct area reduces unnecessary disassembly.
Interpret symbols instead of relying only on text labels; icons such as a fan, battery, or windshield outline indicate the associated system. These pictograms are standardized across many manufacturers, making them reliable even when abbreviations are unclear.
Trace shared circuits by noting repeated labels or linked numbering. For instance, several slots may correspond to the same system but protect different segments, such as left and right lighting units. This detail is useful when only part of a system fails.
Verify the position using a test tool: remove the suspected element and check continuity or voltage presence at the terminals. Cross-reference the slot number with the layout chart to confirm that the identified component truly matches the malfunctioning system before replacement.
