Check the interior power panel behind the glove compartment for primary circuits controlling lights, climate systems, and auxiliary outlets. Each slot is labeled with amperage ratings and corresponding system functions to prevent overload.
In the engine compartment, the main distribution assembly sits near the battery on the driver’s side. It contains high-current connections for ignition, starter, and cooling fans, with ratings clearly marked on the cover for quick reference.
Use the color-coded terminals and numbered slots to match circuits with their respective components. For example, slot 7 supplies the headlights with 15 amps, while slot 12 powers the radio with 10 amps. This ensures correct replacements and prevents short circuits.
Always disconnect the battery before inspecting or replacing any connectors in the power panels. Handling live connections without precautions can cause blown circuits or damage sensitive electronics.
2000 Lincoln Town Car Electrical Layout Guide
Locate the primary interior power panel behind the glove compartment for circuits controlling interior lighting, HVAC, and accessory outlets. Each slot is numbered with its amperage rating and connected system, allowing precise identification and replacement without guesswork. For example, slot 5 handles the sunroof motor with a 20-amp rating, while slot 11 supplies the cigarette lighter with 15 amps.

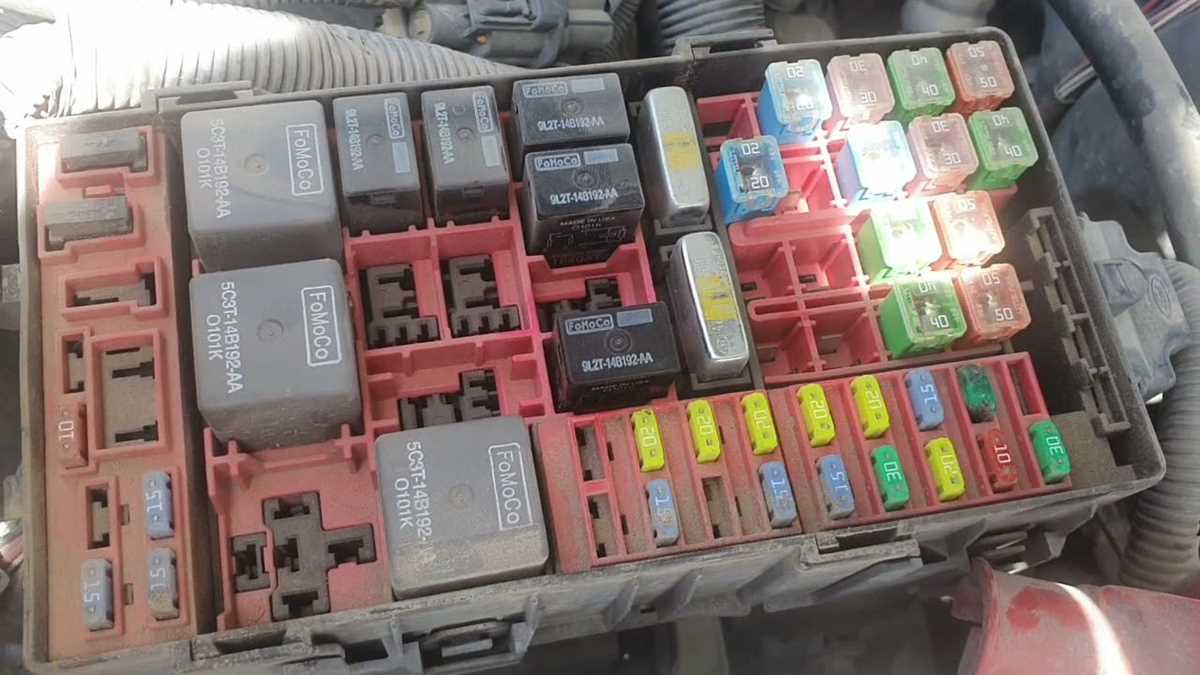

The engine compartment houses the main distribution module near the battery on the driver’s side. High-current terminals for ignition, starter, and cooling fans are clearly labeled, and their 30-50 amp ratings are embossed on the cover. Use these markings to match connections and prevent accidental overloads during maintenance or upgrades.
Identifying Interior Power Panel Locations and Labels
Access the main cabin power module by opening the glove compartment and gently lowering the panel beneath it. Each slot is numbered and labeled with its corresponding system, including interior lights, climate controls, and accessory outlets. Matching the slot number to the printed legend on the cover ensures accurate identification before any maintenance or replacements.
Smaller auxiliary panels are located under the dashboard near the driver’s left footwell and behind the center console. Labels on these modules indicate amperage ratings and specific circuits such as audio, power seats, and mirror controls. Follow the embossed markings carefully to avoid disconnecting critical components during inspections or upgrades.
