Check the electrical layout chart located on the panel cover inside the vehicle to match each slot with its assigned circuit before replacing any component. Failures such as inactive lighting, infotainment issues, or power accessory faults are often caused by a single blown protective link rated between 5A and 40A.
This vehicle uses multiple power distribution units, including sections in the dashboard area, luggage compartment, and engine bay. Each unit is responsible for specific systems, separating low-current electronics from high-load components like cooling systems and control modules.
Each slot is labeled with a number and amperage value, often color-coded for quick identification. Installing a component with incorrect rating can damage wiring or lead to repeated failure, so always match the original specification shown on the cover.
Disconnect the negative battery terminal before accessing contacts to prevent short circuits. Use a multimeter set to continuity mode for accurate testing, since internal breaks in the metal strip may not be visible through the plastic housing.

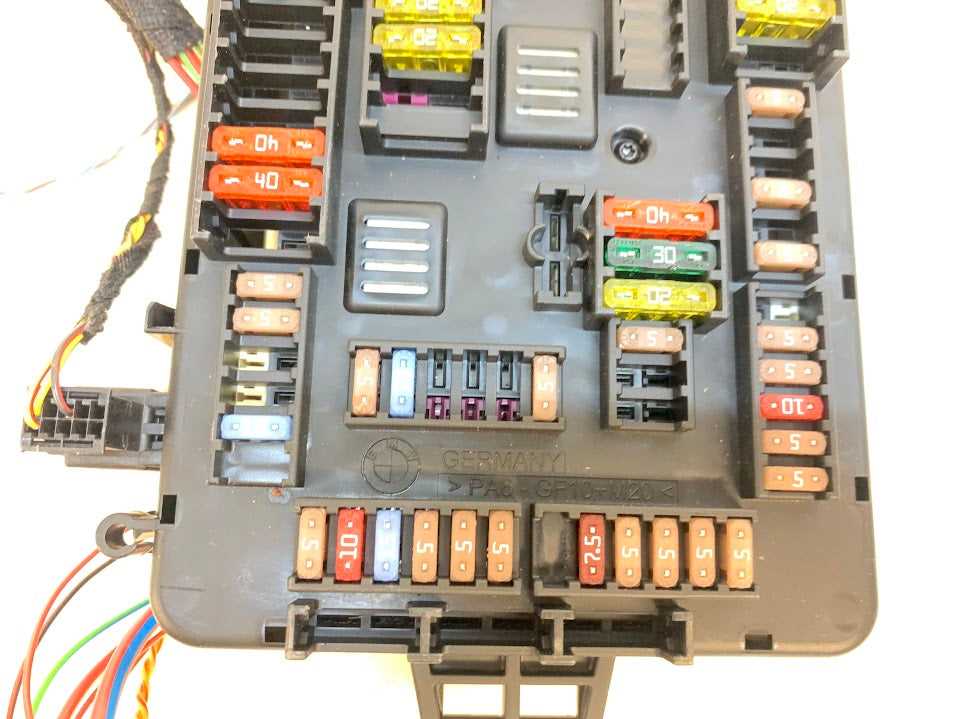

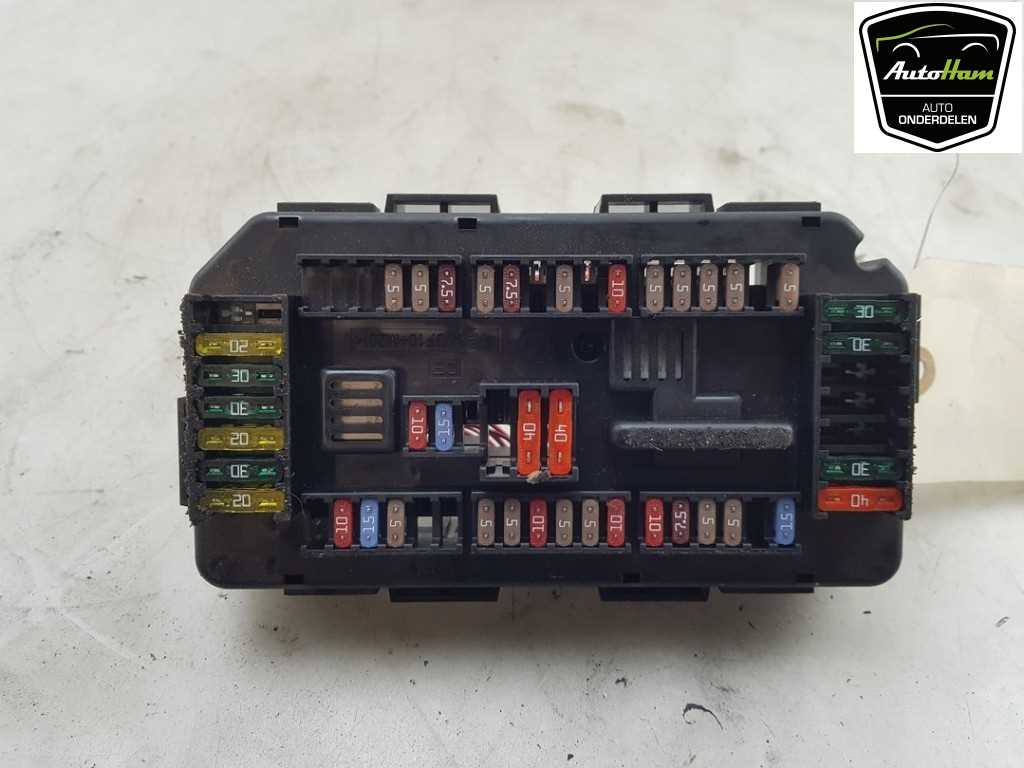

BMW F34 fuse box diagram and circuit identification guide
Check the legend printed on the cover first, as it maps each slot to a specific electrical line and prevents random removal of components. Use this reference to match amperage ratings with systems like lighting, infotainment, and climate control.
Each position is labeled with a number that corresponds to a protected circuit. Lower ratings such as 5A or 10A typically serve sensors, control units, or small electronics, while higher values like 30A or 40A handle power windows, seat motors, or blower systems.
Color coding helps quick identification of capacity levels without reading tiny markings. Common patterns include:
- Brown or tan for 5A circuits
- Red for 10A lines
- Blue for 15A protection
- Yellow for 20A loads
- Green for 30A high-demand components
When tracing a fault, inspect the metal strip inside each element. A broken or darkened strip signals interruption in the circuit. Replace only with the same rating to avoid wiring damage or overheating.
Relay modules located near the main distribution area control switching functions such as ignition, fuel delivery, and cooling fans. These units are often square blocks and should be tested separately if systems fail without visible damage to protective elements.
Use a multimeter set to continuity mode for precise diagnostics. Touch both terminals of the removed component; no beep indicates failure. This method avoids guessing and ensures accurate troubleshooting of electrical paths.
Where to locate fuse boxes in BMW F34 cabin trunk and engine bay
Open the glove compartment and look upward behind the trim panel, as this is the primary location for the interior electrical distribution unit in this model. Release the retaining clips to access the hidden section safely.
Inside the passenger area, the access sequence is:
- Open glove compartment fully
- Remove upper cover by pressing side tabs
- Pull down inner panel to expose wiring block
- Refer to printed chart for slot identification
In the rear section, lift the cargo floor and check the right-side compartment near the battery. This area contains high-current protection elements linked to power management and charging circuits.
Follow these steps in the luggage area:
- Raise trunk floor panel
- Remove right-side plastic cover
- Locate battery housing
- Inspect adjacent power distribution strip
Under the hood, the main power supply unit sits close to the engine bay’s right side, near the firewall. It is protected by a sealed cover that requires clips or screws to open.
This front compartment location typically handles systems such as cooling fans, ignition supply, and auxiliary components that draw higher current.
Use a flashlight when working in tight areas, as markings can be small and positioned deep within the housing, especially in the glove compartment section.
After inspection or replacement, secure all covers firmly to prevent moisture entry and electrical faults caused by loose connections.
