Check the passenger compartment panel first if power windows, central locking, or interior lighting stop working, as these circuits are grouped in one control unit behind the glove compartment. Remove the trim cover carefully, use a plastic tool to avoid clips damage, and inspect each slot against the printed scheme attached to the panel lid.
For engine-related systems such as cooling fan, fuel delivery, or ignition modules, access the engine bay power distribution unit. It is located near the right side under a protective cover. Always disconnect the negative battery terminal before handling high-current links rated above 40A to prevent short circuits or control module faults.
Use the correct amperage rating when replacing a burned element. Installing a higher-rated part can lead to wiring overheating and control unit damage. Typical ratings range from 5A for sensors and control circuits up to 125A for main supply lines. A multimeter set to continuity mode helps confirm failure instead of relying on visual inspection alone.
If repeated failures occur in the same slot, inspect the related circuit for insulation damage, moisture ingress, or a failing actuator. Do not replace protection elements repeatedly without diagnosis, as this often masks deeper electrical issues such as short to ground or overload conditions.
BMW F15 Fuse Box Diagram Locations and Fuse Assignments
Locate the interior power distribution panel behind the glove compartment to access most cabin-related circuits such as infotainment, climate control, and seat adjustment modules. Release the side clips, lower the panel, and refer to the printed chart on the cover for slot identification and current ratings.
The front engine compartment contains a secondary power unit responsible for high-load systems. It is positioned near the right-side strut tower under a sealed plastic cover. Circuits here typically include cooling fan control, engine management, and auxiliary pumps, with ratings ranging from 30A to over 100A.
Rear luggage area modules handle additional systems, including air suspension, trailer electronics, and rear lighting clusters. Access requires lifting the cargo floor and removing a protective panel. This section often includes relays and high-capacity links grouped together.
Common Circuit Assignments
- 5A–10A: sensors, control modules, keyless entry system
- 15A–20A: power outlets, audio system, interior lighting
- 25A–40A: window regulators, seat motors, HVAC blower
- 50A and above: main supply lines, steering assist, suspension systems

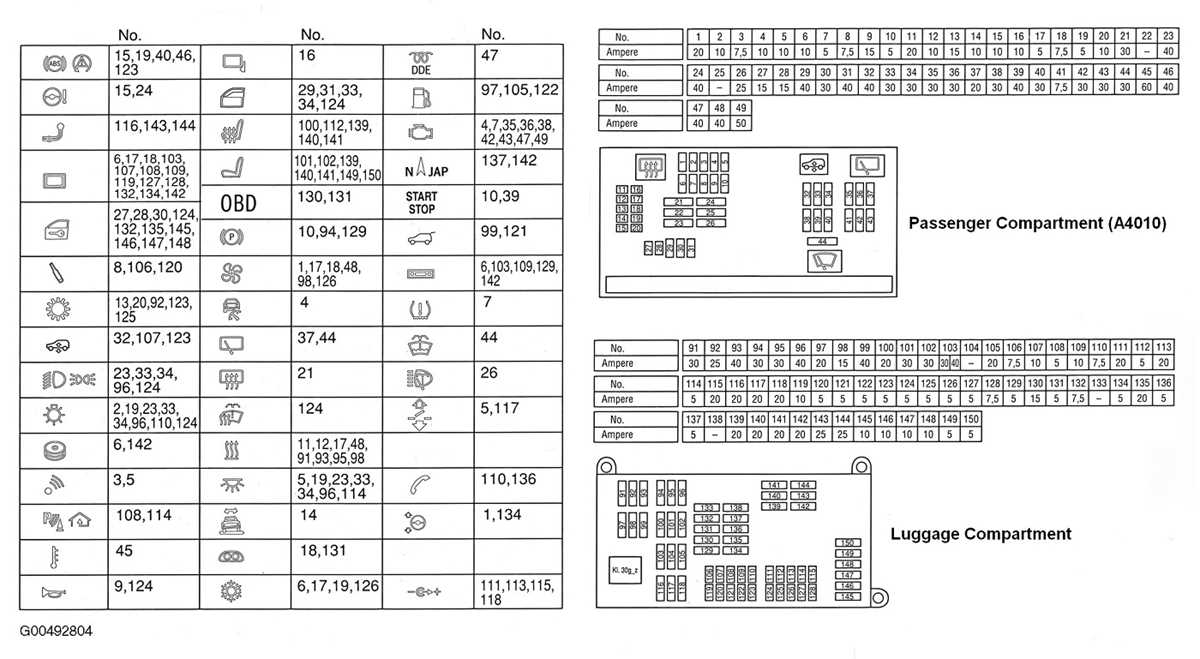

Match each slot number with its function using the panel legend, as numbering may differ between model years and equipment packages. Incorrect identification can lead to unnecessary component removal or misdiagnosis.
Access and Identification Tips
- Use a trim removal tool to avoid damaging clips
- Check both sides of the panel for hidden rows
- Verify amperage marking printed on each element
- Use a test light or multimeter for confirmation
Keep spare elements of common ratings such as 10A, 15A, and 20A inside the vehicle for quick replacement during roadside issues. Store them in a dry container to prevent corrosion.
If multiple systems fail simultaneously, inspect main distribution points rather than individual circuits, as shared supply lines often feed several modules at once.
Where to Find Fuse Boxes in BMW F15 Cabin and Engine Bay
Open the glove compartment and remove the rear trim panel to access the main interior electrical distribution unit, which handles most low- and mid-current circuits such as media system, climate controls, and seat electronics; the access cover is secured with clips, and a printed layout is usually attached to its inner side.
Lift the hood and check the right side near the suspension tower for the engine compartment power module, protected by a sealed plastic housing; this area contains high-current links for systems like cooling fan, engine control, and auxiliary drives, and requires disconnecting the battery ground before handling due to higher load circuits.

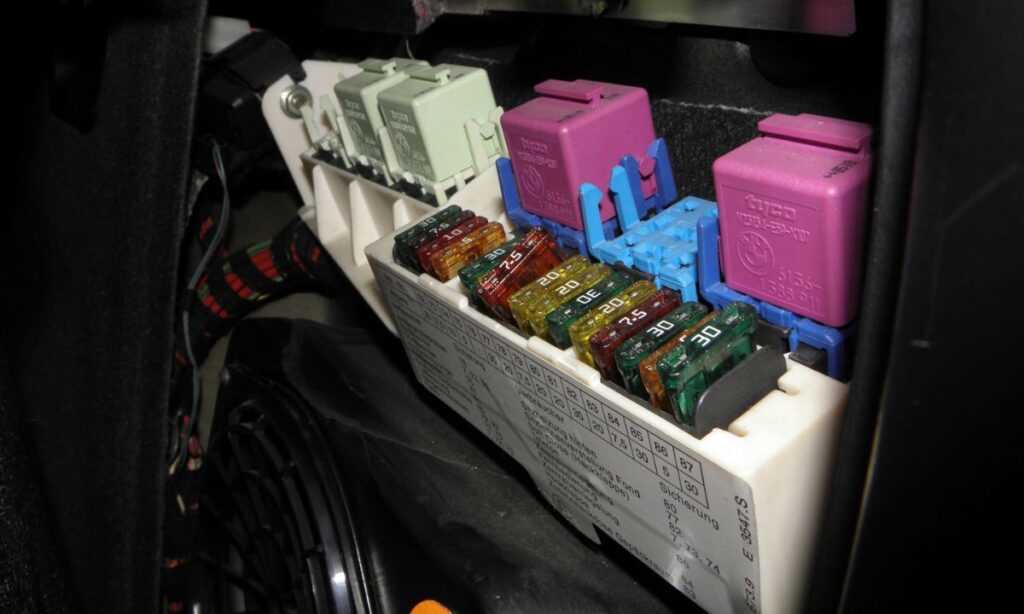

Inspect the rear cargo area under the floor panel for an additional distribution section used for components such as air suspension, trailer interface, and rear lighting; remove the floor cover and side trim carefully, as wiring and relay carriers are positioned tightly and can be damaged by force.
