Open the glove compartment and release the retaining clips to access the internal power distribution panel; use the printed chart on the back of the cover to match each slot with its assigned circuit before removing any component.
Each slot is labeled with a specific amperage, commonly ranging from 5A to 30A, and supports systems such as lighting, central locking, climate control, and infotainment. Always replace with the same rating to prevent overheating or malfunction in connected modules.
Use a multimeter to check continuity across both terminals of the installed element; a break confirms failure. Pay attention to grouped circuits, where several functions share a single protection point, especially in interior electronics and control units.
Keep a printed reference chart nearby and mark frequently inspected positions. This reduces diagnostic time and helps avoid removing working components during troubleshooting.

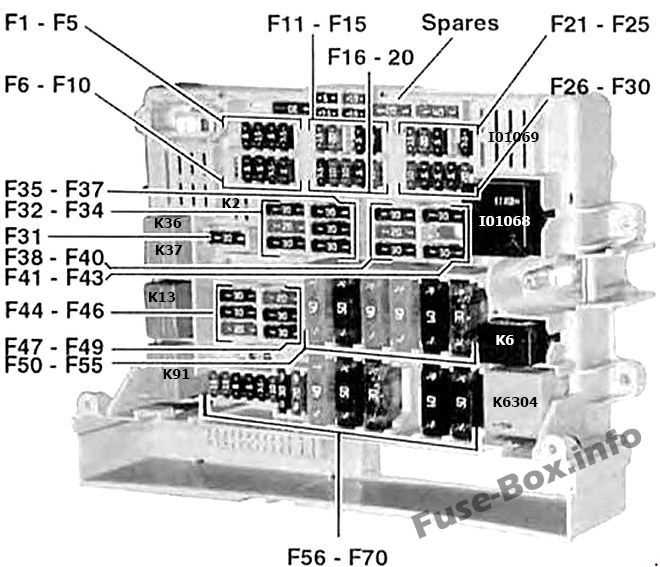

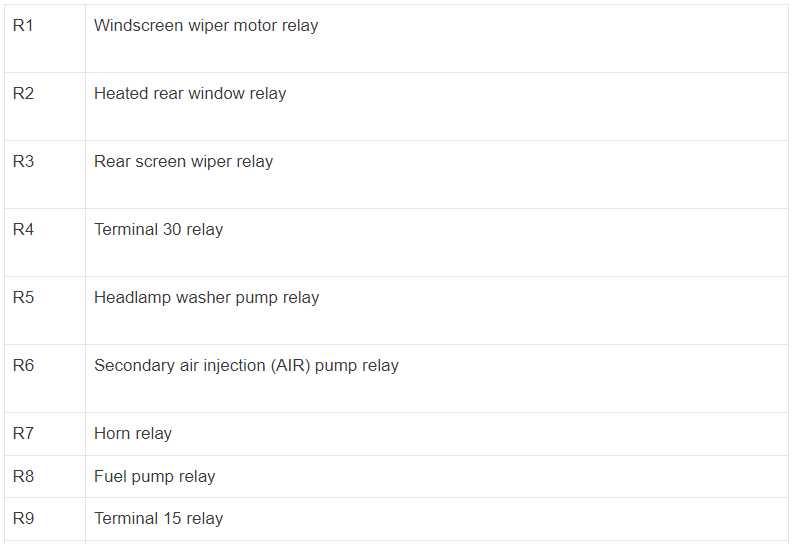

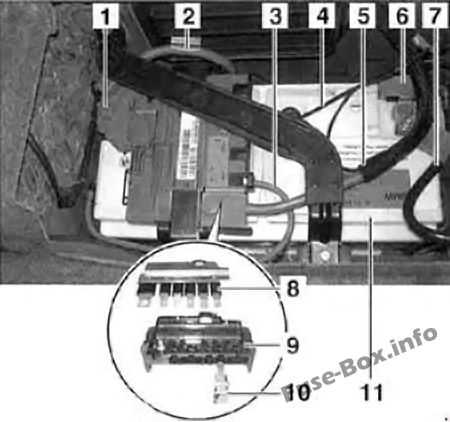

BMW E90 2005 Fuse Box Diagram Location and Circuit Layout Guide
Remove the glove compartment panel and lower it fully to expose the internal power distribution unit; locate the printed chart attached to the panel cover and align slot numbers with their assigned electrical systems before pulling any protective element.
Each position corresponds to a specific circuit, including lighting control modules, power windows, central locking, and onboard electronics; ratings typically range from 5A to 30A, and mismatched replacements can lead to wiring damage or unstable system behavior, especially in multiplexed control units that share common supply lines.
Check both terminals with a multimeter while the ignition is in accessory mode; consistent voltage across both sides confirms proper operation, while a drop on one side indicates failure, and grouped circuits should be tested sequentially to isolate faults affecting multiple interior systems.
Glove compartment fuse panel access steps and slot identification
Open the glove compartment fully and press inward on both side stops to lower it beyond its normal range; this exposes the internal electrical distribution panel mounted behind the trim.
Follow these steps to gain proper access and avoid damage:
- Turn off ignition and remove key before starting
- Press side walls of the glove compartment to release limiters
- Lower the compartment until hinges reach full extension
- Locate the protective cover secured by clips or tabs
- Remove the cover carefully to reveal the panel
Use the printed chart attached to the removed cover to identify each slot by number and function; amperage values such as 5A, 10A, 20A are marked directly on each element, and aligning these with listed circuits helps trace issues in lighting, infotainment, or comfort systems without disconnecting working components.
